Westerschelde 30 June 2016 |
 |
|
| Westerschelde 13/04/16 | |
|
Name |

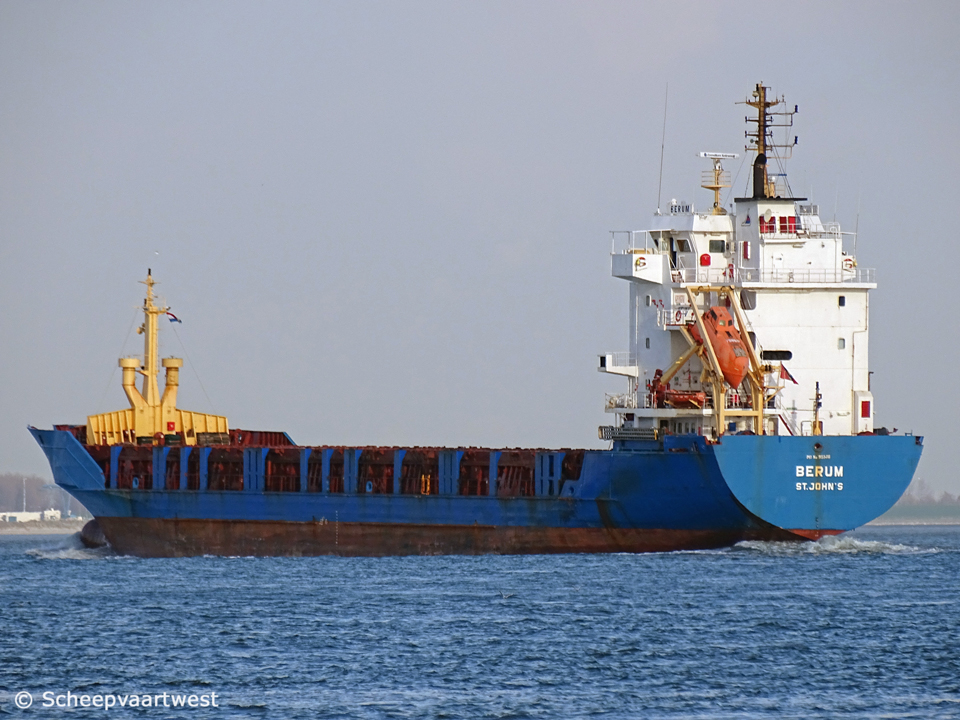

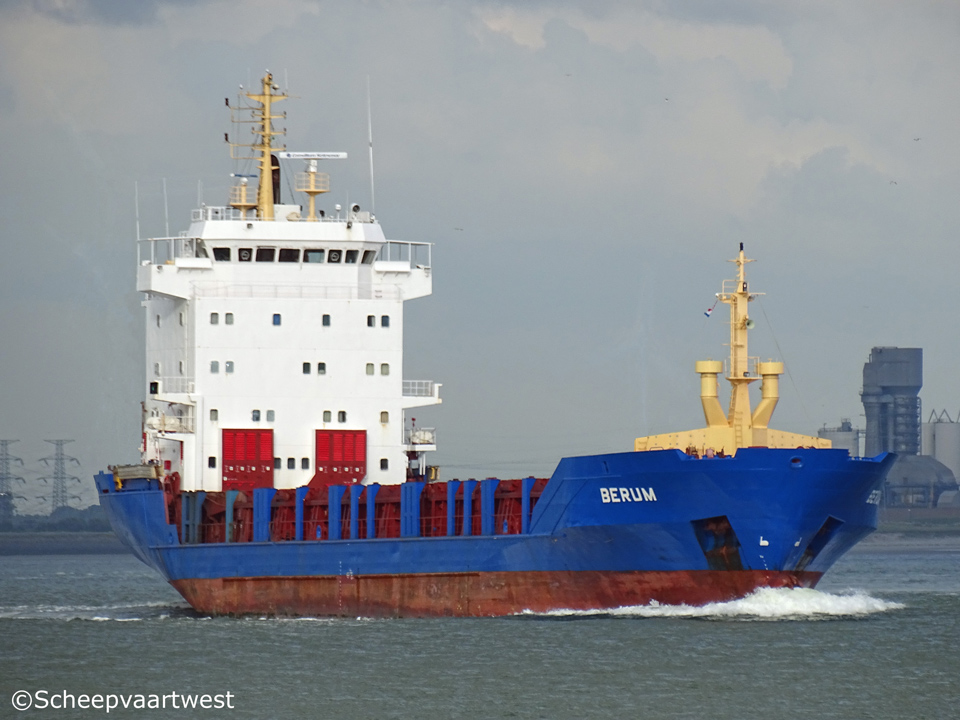

BERUM |
|
Previous names |
1999 - 04/2008 OPDR Sevilla |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Grain fitted - Strengthened for heavy cargoes |
|
IMO-number |
9155418 |
|
Call sign |
V2QK9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
4.115 t |
|
DWT |
Summer: 5.198 t |
|
NT |
2.005 t |
|
Number of 20ft containers |
In hold: 140 On deck: 260 Total: 400 |
|
Number of 40ft containers |
In hold: 67 + 6 TEU On deck: 108 + 24 TEU Total:175 + 30 TEU |
|
Reefer capacity |
On deck: 50 - 308 Volt / 50 Hz |
|
Length |
100,56 m overall 95,30 m between perpendiculars |
|
Breadth |
16,20 m extreme |
|
Draught |
6,40 m |
|
Height above keel |
37,30 m |
|
Depth |
8,20 m |
|
Speed |
Max: 15,5 knots Service: 14,7 knots |
|
Built |
1999 |
|
Keel laid |
28/11/997 |
|
Launch date |
07/11/1998 |
|
Date of completion |
15/03/1999 |
|
Builder |
China State Shipbuilding Corp. Jiangxi Jiangzhou Shipyard China |
|
Yard number |
447 |
|
Hull material |
Steel |
|
Hull type |
Single hull Double bottom |
|
Main engine |
1x MaK 9M32 - 4 stroke single acting 9 cylinder 320 x 480 mm combustion engine Mcr 3.960 kW / 5.384 hp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 156,0 rpm |
|
Shaft generator |
1x 550 kVA |
|
Generators |
3x Volvo Tamd162C - 4 stroke 6 cylinder 144 x 165 mm diesel engines each Mcr 375 kW connected with generators each 340 ekW / 452 kVA - 380 Volt 50 Hz Builder: Volvo Penta |
|
Emergency generator |
1x Diesel generatorset 126 kVA |
|
Bow thruster |
1x Fixed pitch thruster 350 kW / 476 bhp, forward |
|
Number of holds |
1 65,10 x 13,02 x 8,90 m |
|
Cargo hold capacity |
Grain/bale: Abt. 7.235 m³ / 255.501 ft³ |
|
Hold ventilation |
6 Air changes per hour |
|
Number of hatches |
2 Hatch 1: 25,27 x 13,02 m Hatch 2: 38,25 x 13,02 m |
|
Hatch cover type |
Mac Gregor folding type |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
IFO: 351 m³ MDO: 60 m³ Fresh water: 73 m³ Ballast: 1.757,6 m³ |
|
Anchor equipment |
Length: 493,60 m Diameter: 44 mm |
|
Accommodation |
12 Persons / 12 cabins + Pilot cabin |
|
Manager |
Briese Schiffahrts GmbH & Co. KG Hafenstraße 12 26789 Leer (Ostfriesland) Germany |
|
Operator |
Briese Chartering |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "VELA" |
|
Sister ships |
04/1998 Jansum 12/1998 Medum |
|
Renamed |
12/2018 Valentina Cyprus, Limassol - Call sign: P3EH8 06/2021 Breb Xian Cyprus, Limassol - Call sign: P3EH8 Owner: Luptaria Shipping Co., Ltd. Manager: Afalita Shipping UAB, Klaipeda - Lithuania |
|
Latest data adjustment |
10 July 2023 |
