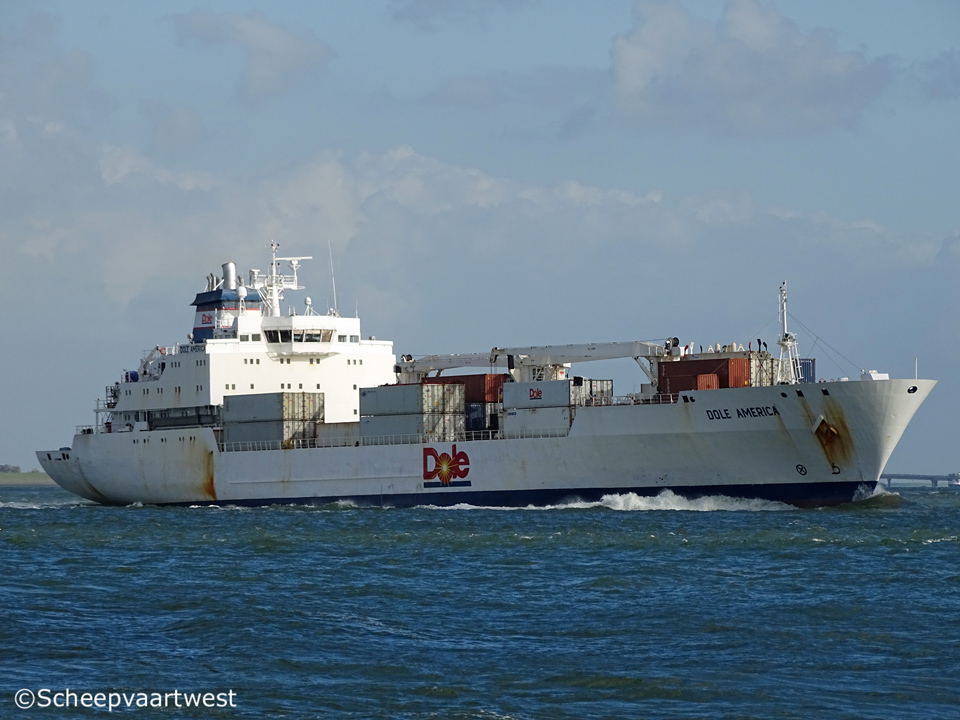

| Westerschelde 25 October 2011 |
 |
 |
 |
 |
|||

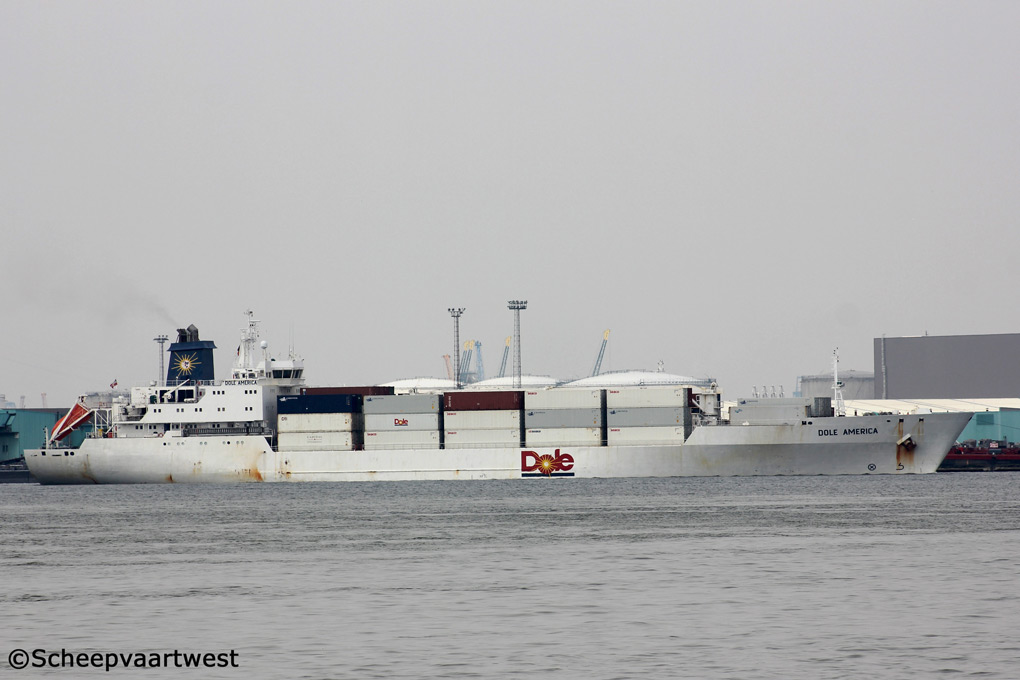

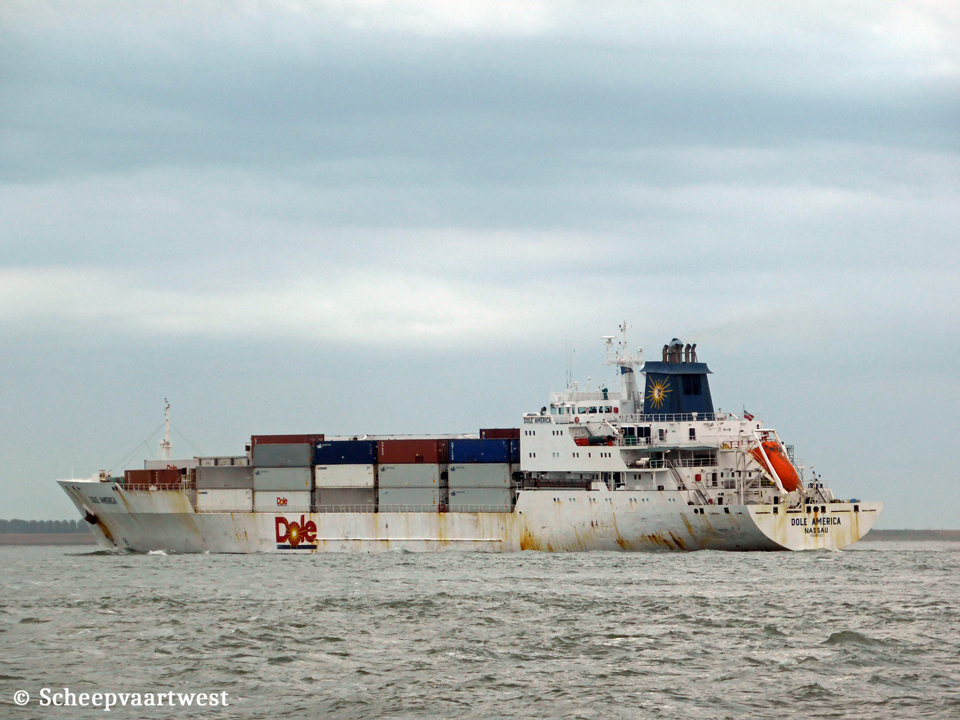

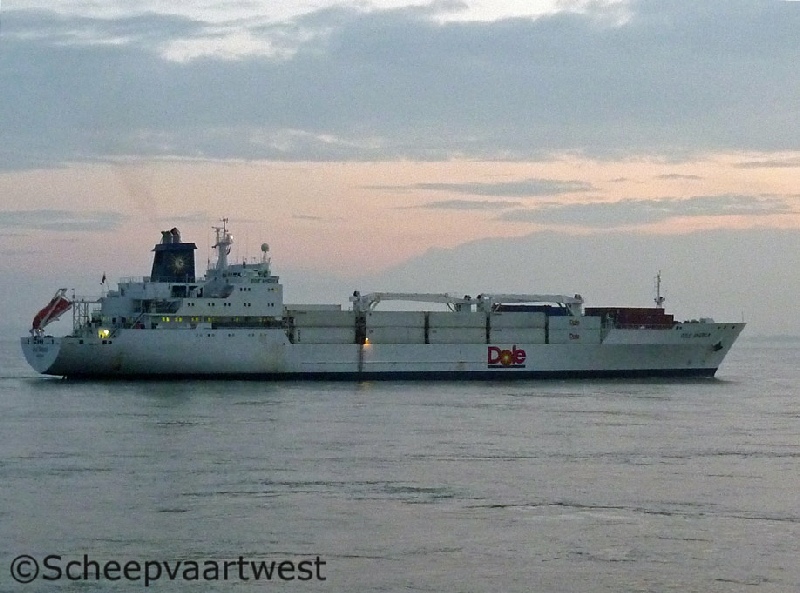

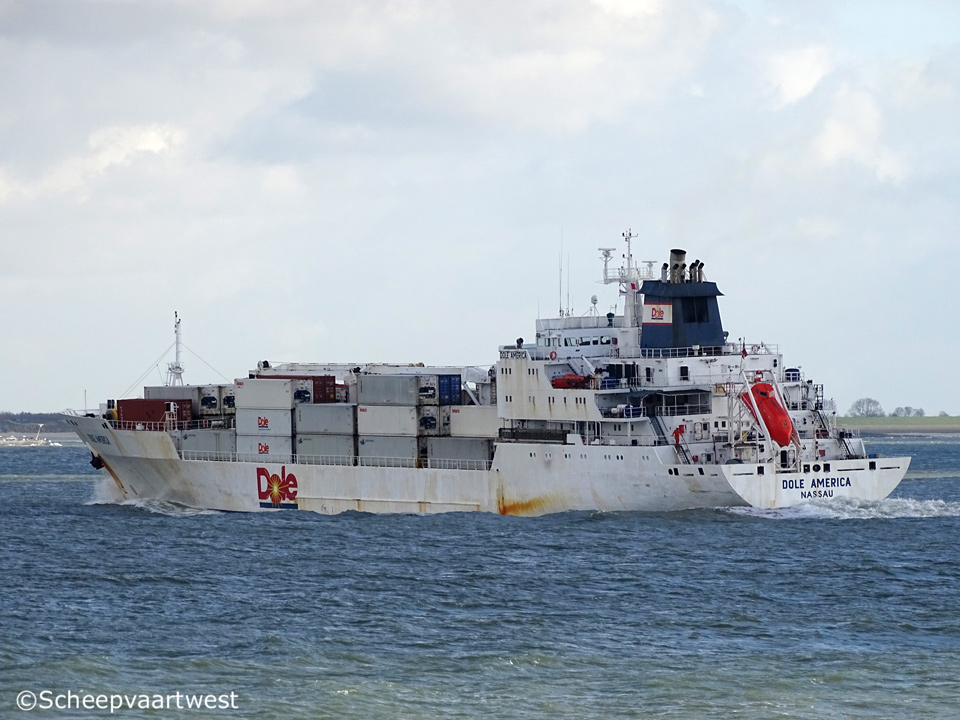

| Antwerpen 04/05/14 | Westerschelde 26/11/17 | Westerschelde 03/10/17 | Westerschelde 05/07/15 | |||
|
Name |
DOLE AMERICA |
|
Type |
Refrigerated cargo ship |
|
IMO-number |
9046502 |
|
Call sign |
C6FS6 |
|
Flag |
Bahamas |
|
Previous flags |
1994 - 2002 Liberia, Monrovia |
|
Port of registry |
Nassau |
|
GT |
10.584 t |
|
DWT |
Summer: 10.288 t |
|
NT |
5.060 t |
|
Number of 20ft containers |
On deck: 90 |
|
Reefer plugs |
132 |
|
Length |
150,30 m overall 138,50 m between perpendiculars |
|
Breadth |
22,60 m extreme |
|
Draught |
9,10 m |
|
Depth |
13,25 m |
|
Speed |
Service: 21,2 knots |
|
Built |
1994 |
|
Keel laid |
30/12/1992 |
|
Launch date |
28/06/1993 |
|
Date of completion |
01/04/1994 |
|
Builder |
Stocznia Gdanska S.A ul. Na Ostrowiu 15/20 PL-80-873 Gdansk Poland |
|
Yard number |
B369/II/1 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Bulkheads |
Transverse: 6 |
|
Main engine |
1x Hyundai B&W 6S60MC(MARK5) - 6 Cylinder 600 x 2.292 mm combustion engine 11.412 kW / 15.516 hp at 105,0 rpm |
|
Propeller |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, vertical shell type (heating) - VX818-115, Output 1.800 t/h / 8,0 bar 1x Auxiliary boiler, exhaust gas water tube (heating) - LA838, Output 1.600 t/h / 8,0 bar |
|
Generators |
4x Ulstein-Bergen KRG-6 diesel generatorsets each 1.155 KW / 1.375 kVA - 440 Volt 60 Hz |
|
Emergency generator |
1x MAN DO226MLE diesel generatorset 124 kVA - 220 Volt 60 Hz |
|
Bow thruster |
1x ABB Zamech bow thruster 740 kW |
|
Number of holds |
4 Clear height of holds min.: 2,20 m |
|
Number of temp. zones |
8 |
|
Range of temperatures |
-25°C - +12°C |
|
Hatches and hatch covers |
Hydraulically operated, type: multi folding, dim. 12,45 x 8,50 m Hydraulically operated type: end folding, dim. 12,45 x 5,50 m Hydraulically operated: type: end folding, dim. 12,40 x 8,50 m |
|
Cargo capacity |
14.838 m³ refrigerated space |
|
Stowage floor area |
5.828 m² |
|
Number of Euro-pallets |
4.502 |
|
Tank capacities 100% |
Heavy fuel oil: 1.589 m³ Diesel oil: 182 m³ Lub oil: 103 m³ Fresh water: 166 m³ Ballast water: 1.456 m³ |
|
Lifting equipment |
2x Liebherr electro hydraulic jib cranes - SWL 32,0 t each 2x Liebherr electro hydraulic jib cranes - SWL 8,0 t each |
|
Crew |
26 |
|
Navigate system |
1x Furuno Type GPS GP-70 1x Furuno Type Loran LC-90 Mk II |
|
ISM & commercial manager |
Reefership Marine ServicesLLC piso 6, Edificio Las Terrazas B, Centro Corporativo Plaza Roble, Guachipelin de Escazu San Jose Costa Rica |
|
Previous manager |
1994 - 2003 Reefership Marine Services Ltd. c/o DFFI Ltd. Operations and Transportation Div. MIA C, 33122-1616 Doral - United States |
|
Operator |
Dole Ocean Cargo Express |
|
Registered wner |
Ventura Trading Limited Care of Reefership Marine Services LLC , piso 6, Edificio Las Terrazas B, Centro Corporativo Plaza Roble, Guachipelin de Escazu San Jose Costa Rica |
|
Previous owners |
|
|
Latest data adjustment |
17 September 2023 |
