| Zeebrugge 17 July 2004 |
 |
| Zeebrugge 17/06/04 |
|
Name |

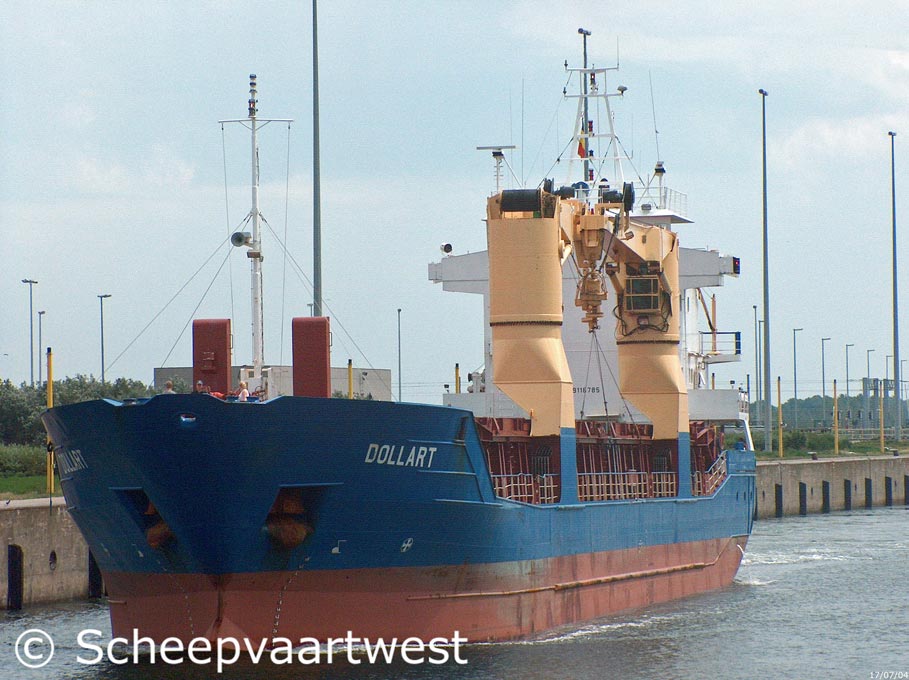

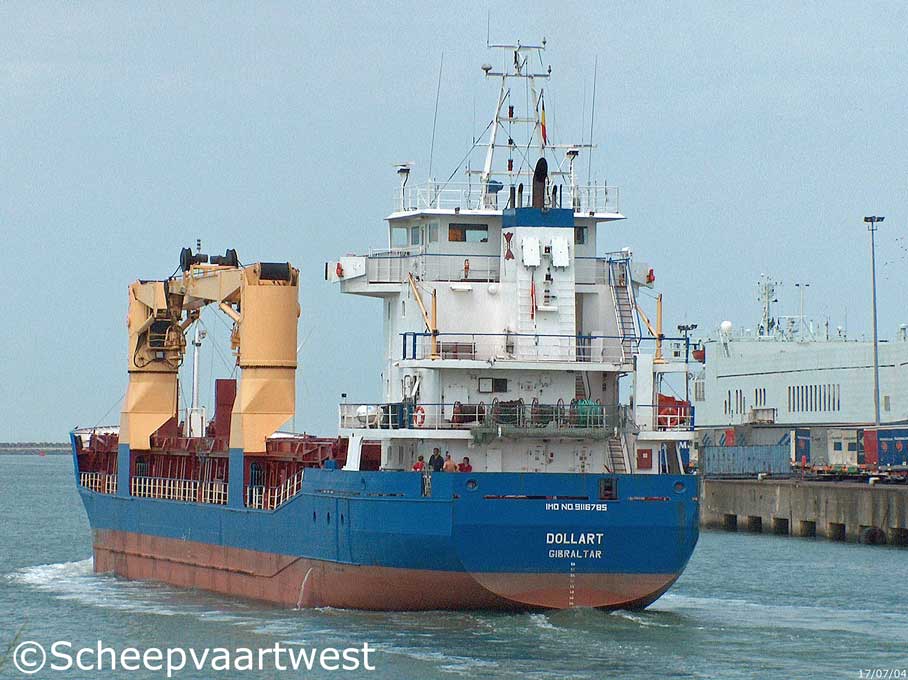

DOLLART |
|
Type |
Gear Cargo |
|
IMO-number |
9116785 |
|
Call sign |
ZDGH5 |
|
Flag |
Gibraltar |
|
Previous flags |
1996 Antigua & Barbuda |
|
Port of registry |
Gibraltar |
|
GT |
2.532 t |
|
DWT |
Summer: 3.560 t |
|
NT |
1.351 t |
|
Number of 20ft containers |
170 |
|
Container capacity 14t |
142 |
|
Length |
87,92 m overall |
|
Breadth |
12,80 m registered |
|
Draught |
Summer: 5,518 m |
|
Forecastle |
6,70 m |
|
Freeboard |
1.580 mm |
|
Depth |
7,10 m moulded |
|
Speed |
11,5 knots |
|
Built |
1995 |
|
Keel laid |
09.03.1995 |
|
Launch date |
15.12.1995 |
|
Date of completed |
04.1996 |
|
Builder |
Slovenske Lodenice A.S. |
|
Yard number |
1408 |
|
Hull material |
Spheroid iron |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x Krupp MaK 8 M 332 C - 4 stroke single acting 8 cylinder 240 x 330 mm diesel engine - 1.470 kW |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boiler |
1x Water heater, oil fired - 4,0 bar |
|
Electric installations |
1x 380/220 V - 526 kVA |
|
Shaft generator |
1x 470 kVA |
|
Generators |
2x Main diesel generatorsets each 263 kVA |
|
Emergency generator |
1x Diesel generatorset 50 kVA |
|
Bow thruster |
1x Transverse thruster JASTRAM - 185 kW, forward |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Cargo capacity |
Bale: 4.620 m³ / 162.544 ft³ |
|
Number of holds |
1 |
|
Number of hatches |
1 |
|
Strength on |
TT: 20,0 t/m² |
|
Floor space |
1.152 m² under deck + 576 m² on deck |
|
Cranes |
2x Cranes each up to 30 t combinable up to 60 t |
|
Tank capacity |
Bunker: 195 t |
|
Anchor equipment |
3x Anchors weight each 1.920 kg |
|
Crew size |
12 |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Operator |
Briese Schiffahrt |
|
Owner |
BBC Project Chartering GmbH & Co. KG |
