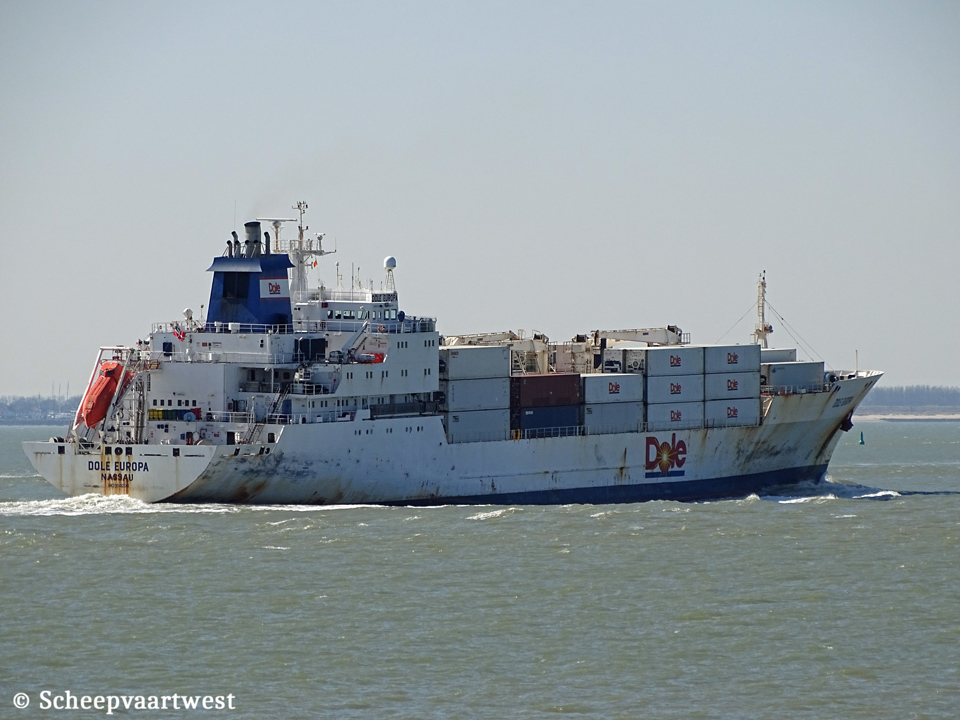

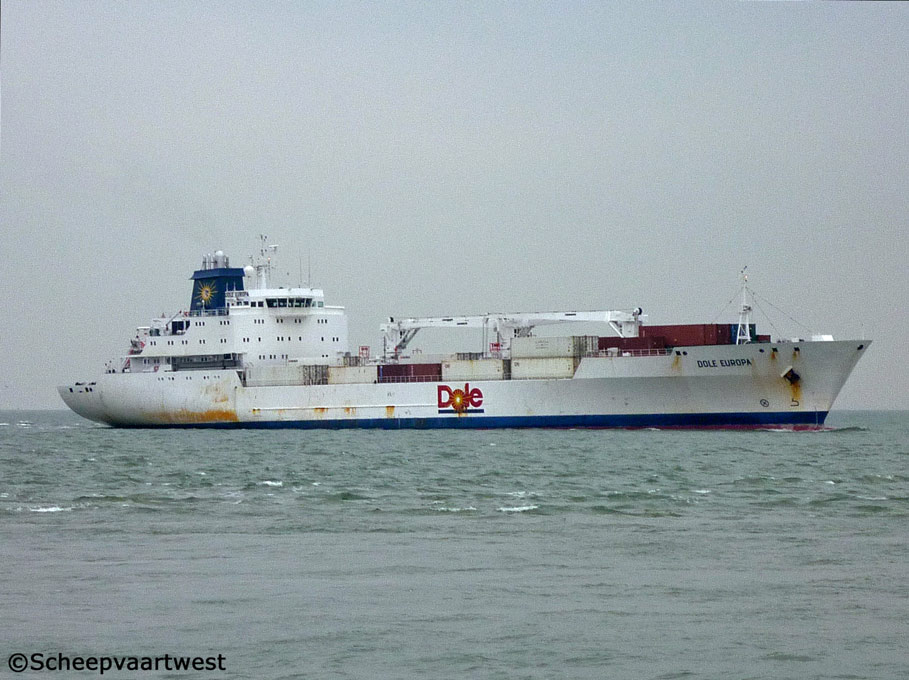

| Westerschelde 06 March 2012 |
 |
 |
 |
 |
 |
 |
|||||

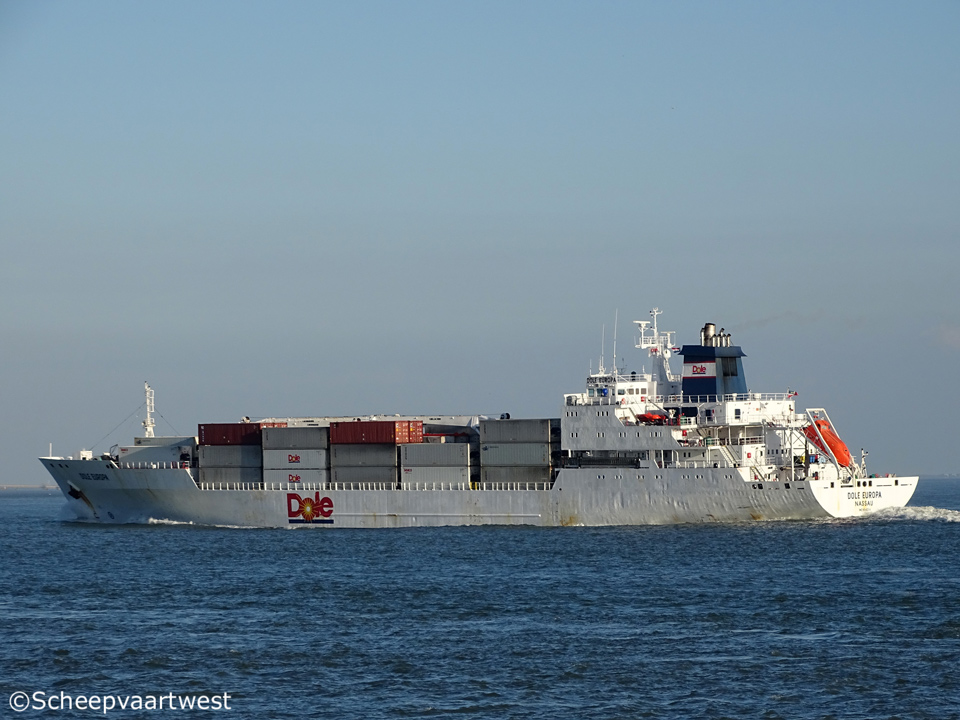

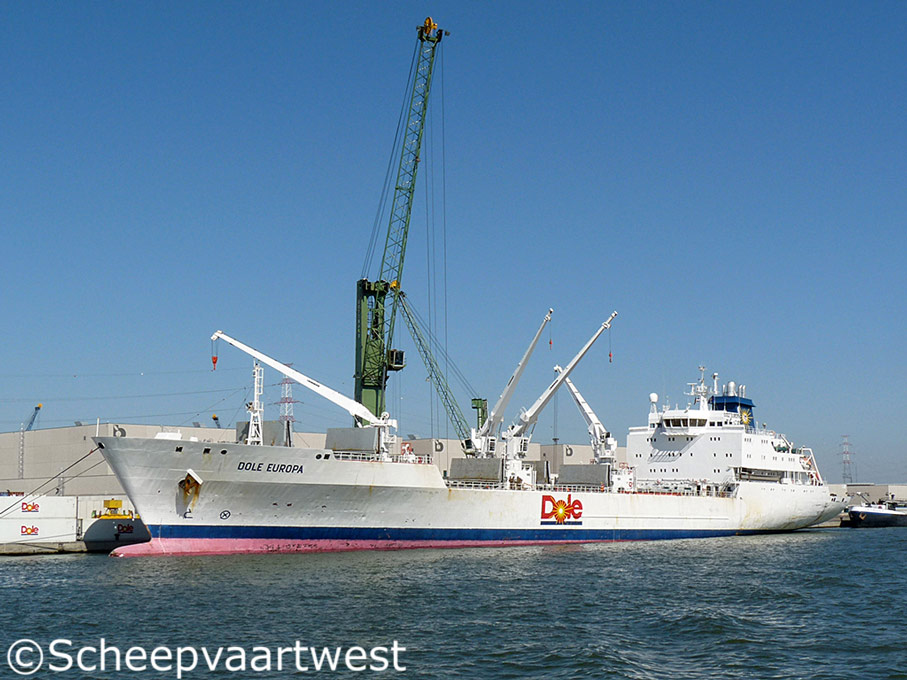

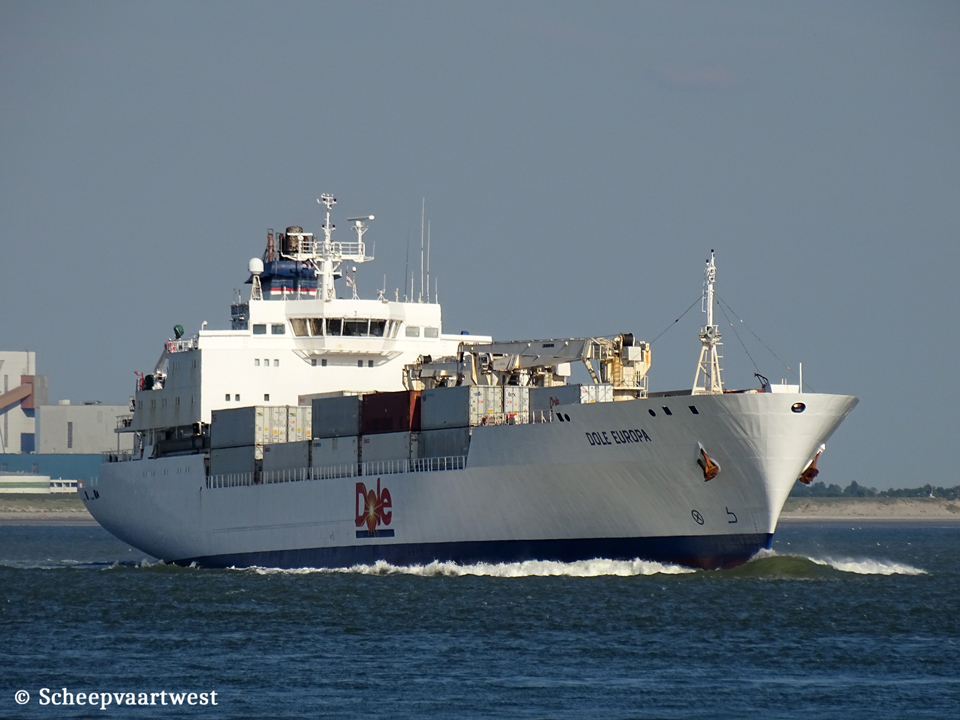

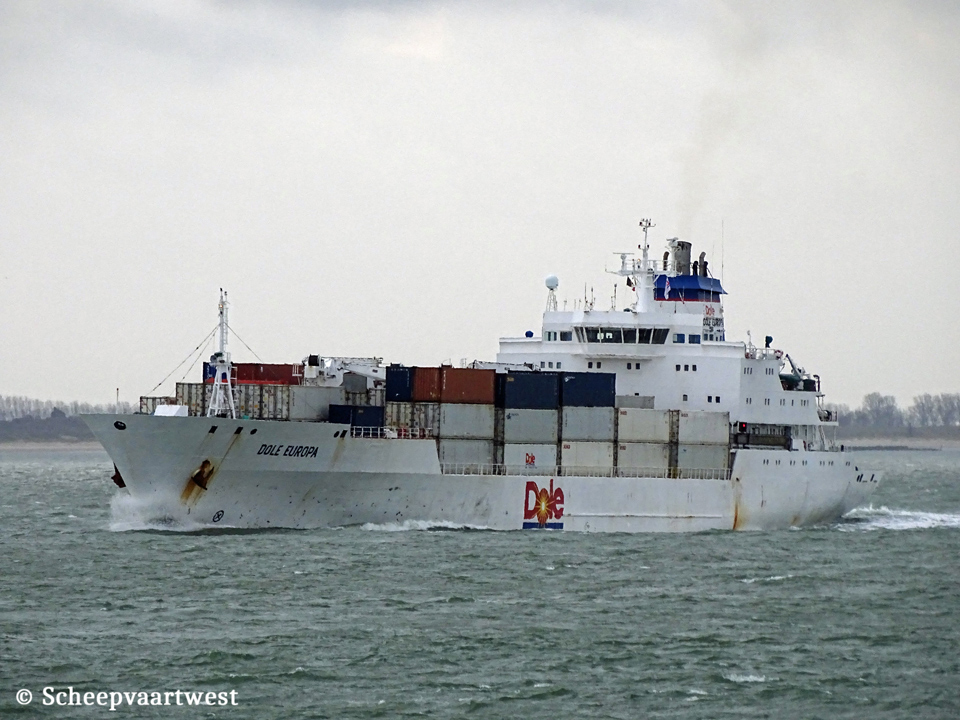

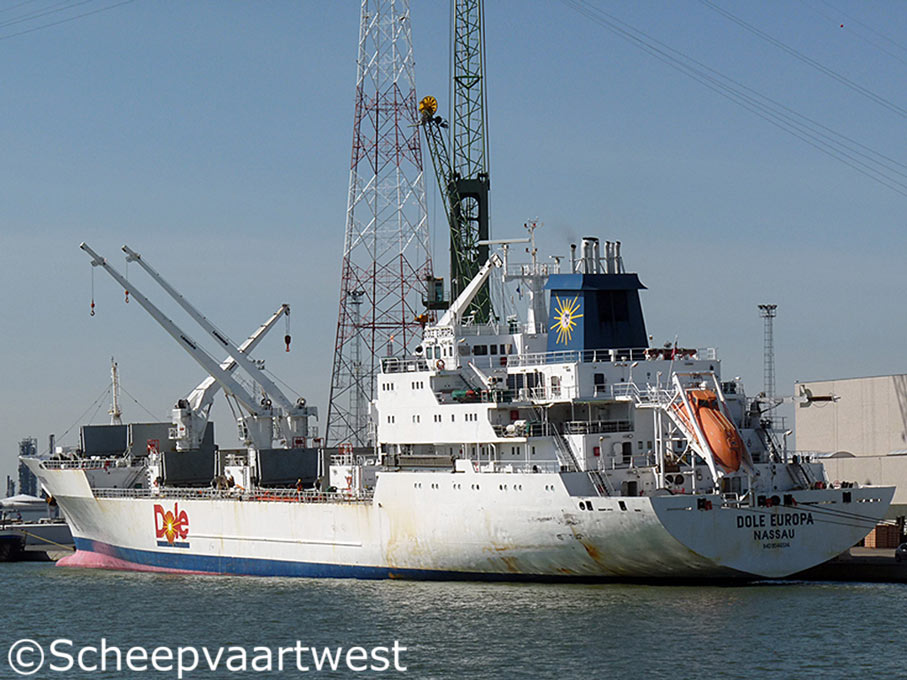

| Antwerpen 06/04/10 | Antwerpen 06/04/10 | Westerschelde 04/12/16 | Westerschelde 02/04/17 | Westerschelde 02/04/17 | Westerschelde 24/03/20 | |||||
 |
 |
|||||||||

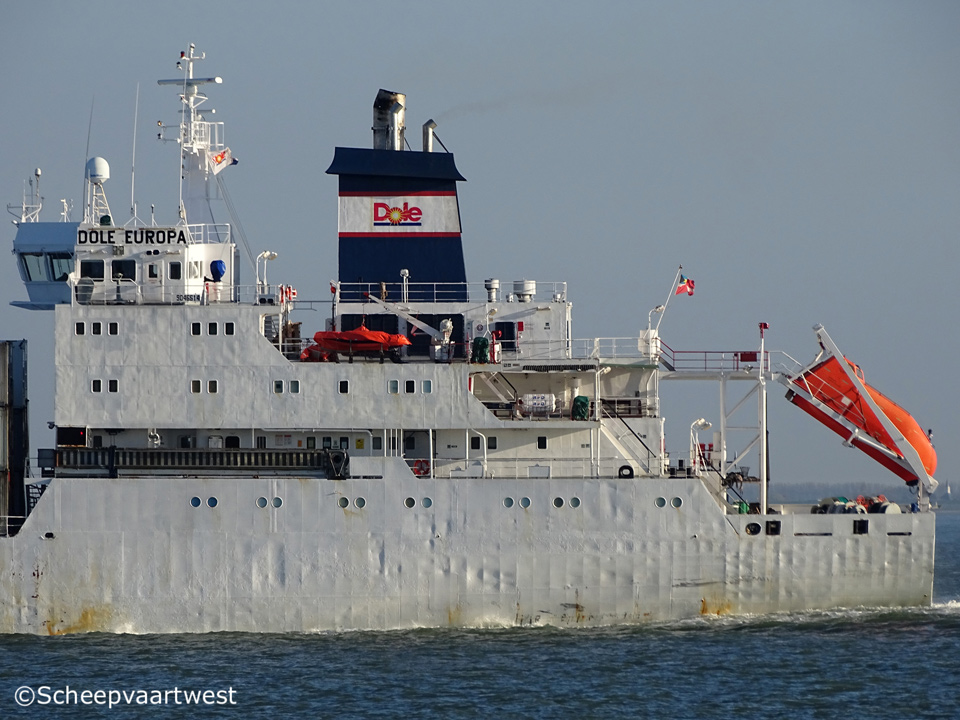

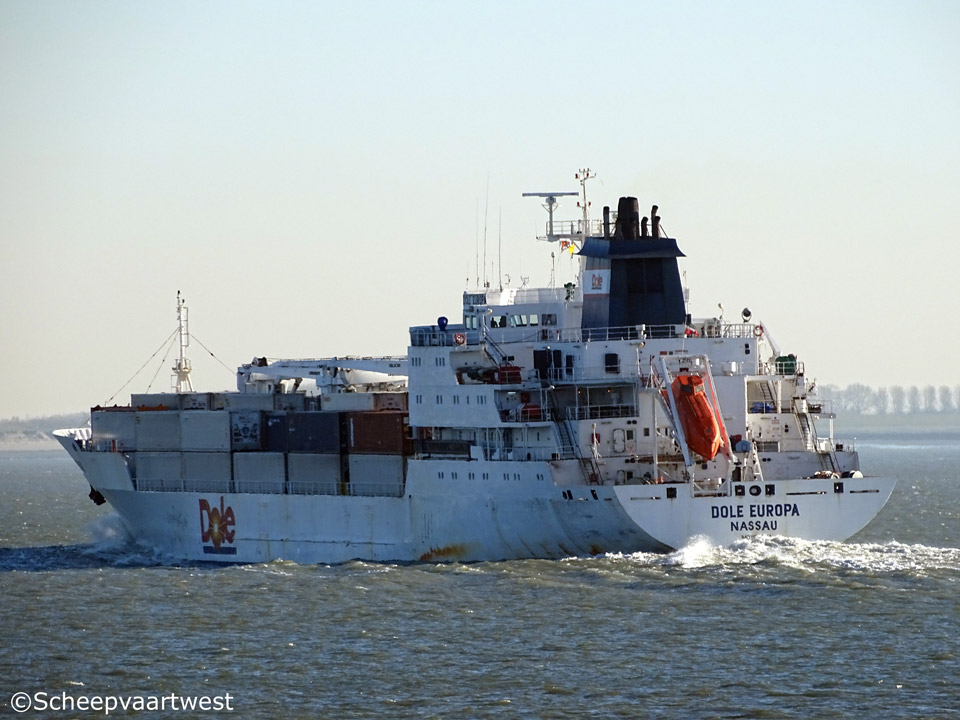

| Westerschelde 03/12/18 | Westerschelde 15/08/16 | |||||||||
|
Name |
DOLE EUROPA |
|
Type |
Refrigerated cargo ship Frozen cargo |
|
IMO-number |
9046514 |
|
Call sign |
C6FS5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flag |
1994 - 2002 Liberia, Monrovia |
|
GT |
10.584 t |
|
DWT |
10.288 t |
|
NT |
5.060 t |
|
Number of 20ft containers |
192 |
|
Reefer plug |
132 |
|
Length |
150,30 m overall 138,50 m between perpendiculars |
|
Breadth |
22,60 m over all |
|
Draught |
9,119 m |
|
Depth |
13,25 m |
|
Speed |
Service: 21,0 knots |
|
Built |
1994 |
|
Keel laid |
07/05/1993 |
|
Launch date |
10/12/1993 |
|
Date of completion |
13/07/1994 |
|
Builder |
Stocznia Gdansk Shipbuilding SA ul. Na Ostrowiu 15/20 PL-80-873 Gdansk Poland |
|
Yard number |
B369/II/2 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse 6 |
|
Number of decks |
1 |
|
Main engine |
1x HHI/MAN-B&W 6S60MC(MARK 5) - 2 stroke 6 cylinder combustion 600 x 2.292 mm combustion engine 11.412 kW / 15.516 hp at 105,0 rpm Manufacturer: Hyundai Heavy Industries |
|
Propeller |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler exhaust gas water tube - Fin Tube SG (ECON) - 0,8 MPa 1x Auxiliary boiler vertical shell type VX818-115 - 0,8 Mpa |
|
Generators |
4x Bergen KRG-6 main diesel generatorsets each 1.375 kVA / 440 volt 60 Hz |
|
Emergency generator |
1x MAN DD226MLE diesel generatorset 124 kVA / 220 Volt 60 Hz |
|
Bow thruster |
1x 740 kW |
|
Number of holds |
4 Clear height of holds : min 2,20 m |
|
Number of temp zones |
8 |
|
Hatches |
Hydraulically operated multi folding 12,45 x 8,50 m Hydraulically operated end folding 12,45 x 5,50 m Hydraulically operated end folding 12,40 x 8,50 m |
|
Range of temperatures |
-25°C - +12°C |
|
Stowage floor area |
5.828 m² |
|
Number of Euro-pallets |
5.502 |
|
Lifting equipment |
2x Liebherr electro-hydraulic jib cranes - SWL 32 t each 2x Liebherr electro-hydraulic jib cranes - SWL 8 t each |
|
Tank capacities 100% |
Heavy fuel oil: 1.589 m³ Diesel oil: 182 m³ Lub oil: 103 m³ Fresh water: 166 m³ Ballast water: 1?456 m³ |
|
Crew size |
26 |
|
ISM & Commerical manager |
Reefership Marine Services LLC piso 6, Edificio Las Terrazas B, Centro Corporativo Plaza Roble, Guachipelin de Escazu, San Jose Costa Rica |
|
Charter |
Dole Fresh Fruit International |
|
Owner |
Ventura Trading Limited Care of Reefership Marine Services LLC , piso 6, Edificio Las Terrazas B, Centro Corporativo Plaza Roble, Guachipelin de Escazu, San Jose Costa Rica |
|
Latest data adjustment |
01 November 2021 |
