| Westerschelde 24 September 2011 |
 |
 |
|
| Westerschelde 24/09/11 | Westerschelde 24/09/11 |
|
Name |

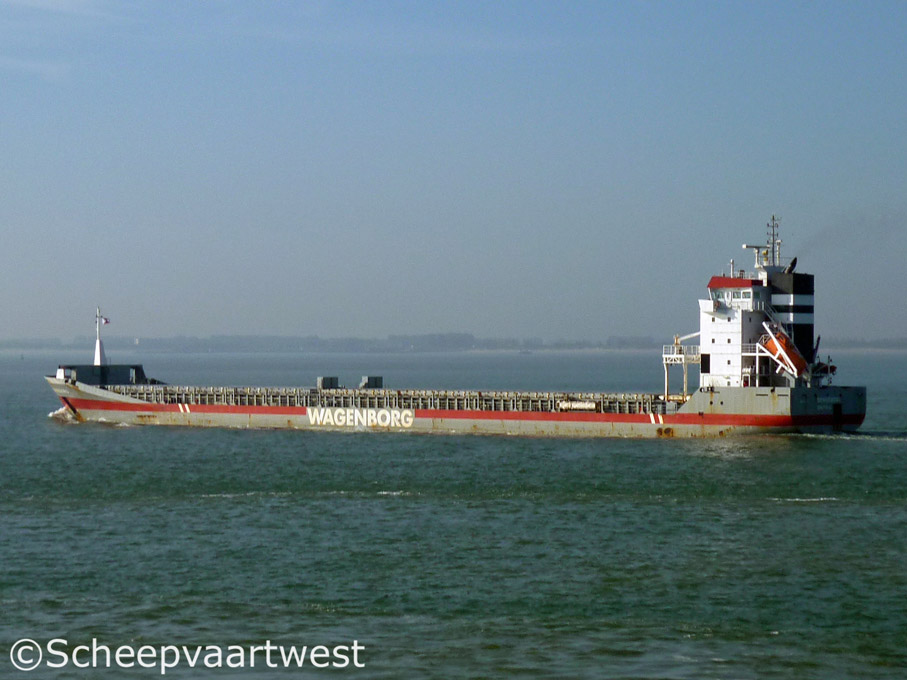

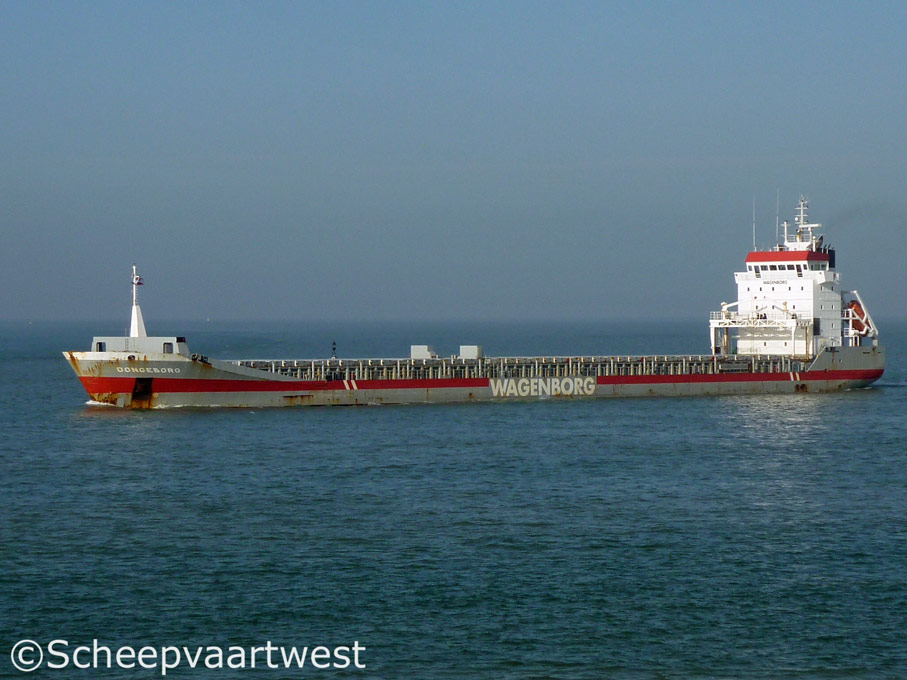

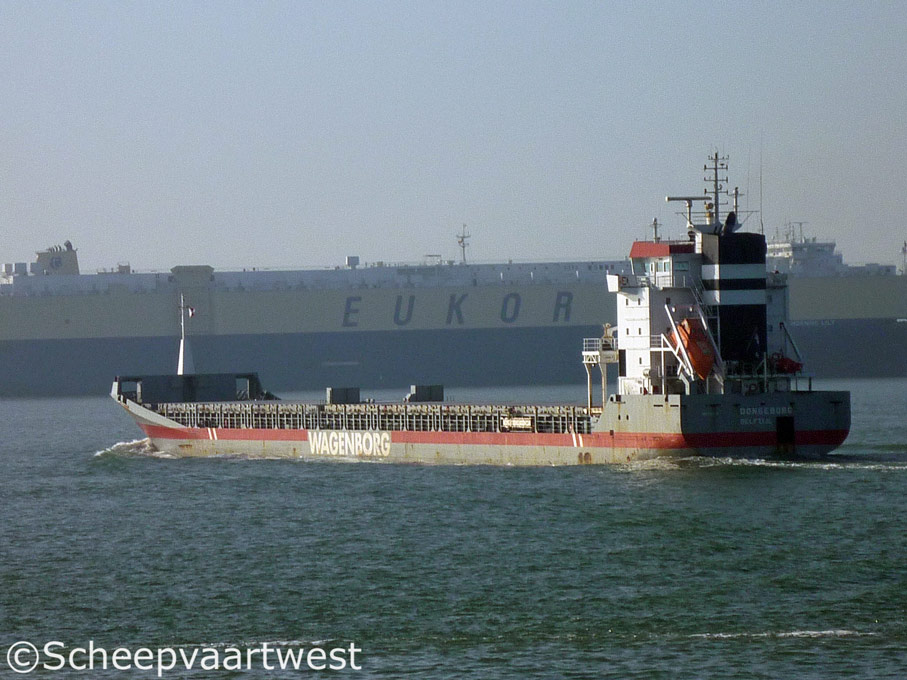

DONGEBORG |
|
Type |
Multi-purpose dry cargo ship |
|
Sub type |
Containership |
|
IMO-number |
9163697 |
|
Call sign |
PCGD |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.205 t |
|
DWT |
8.867 t |
|
NT |
3.340 t |
|
Number of 20ft containers |
578 |
|
Length |
133,38 m overall 127,34 m between perpendiculars |
|
Breadth |
15,85 m |
|
Draught |
7,103 m |
|
Air draft |
33,75 m |
|
Freeboard |
2.714 mm |
|
Depth |
9,80 m |
|
Speed |
16,0 knots |
|
Built |
1999 |
|
Date of completion |
24.09.1999 |
|
Builder |
Van Diepen Shipyard B.V. |
|
Yard number |
1042 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä NSD 8L38 - 8 Cylinder 380 x 475 mm diesel engine - 5.280 kW / 7.174 hp at 800 rpm Built: 1999 Builder: Wärtsilä NSD, Zwolle - The Netherlands |
|
Electrical propulsion gen. |
1x 590 kW - 440 Volt |
|
Propelling system |
1x Screw propeller controllable pitch at 143 rpm |
|
Boilers |
1x CHO Wiesloch 22,0 m² - 13,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Generators |
2x Diesel generatorsets each 305 kVA - 244 kW - 353 hp |
|
Emergency generators |
1x Diesel generatorset 102 kVA - 82 kW - 109 hp |
|
Number of holds |
2 1x 41,99 x 13,20 x 10,48 m 1x 53,61 x 13,20 x 10,48 m |
|
Total capacity of holds |
12.681 m³ |
|
Number of hatches |
2 1x 41,99 x 13,20 m 1x 43,98 x 13,20 m |
|
Fuel capacity |
553 m³ |
|
Manager |
Wagenborg Shipping |
|
Operator |
Wagenborg Shipping B.V. |
|
Owner |
Wagenborg Shipping |
|
Registered owner |
C.V. Scheepvaartonderneming Dongeborg BV The Netherlands |
