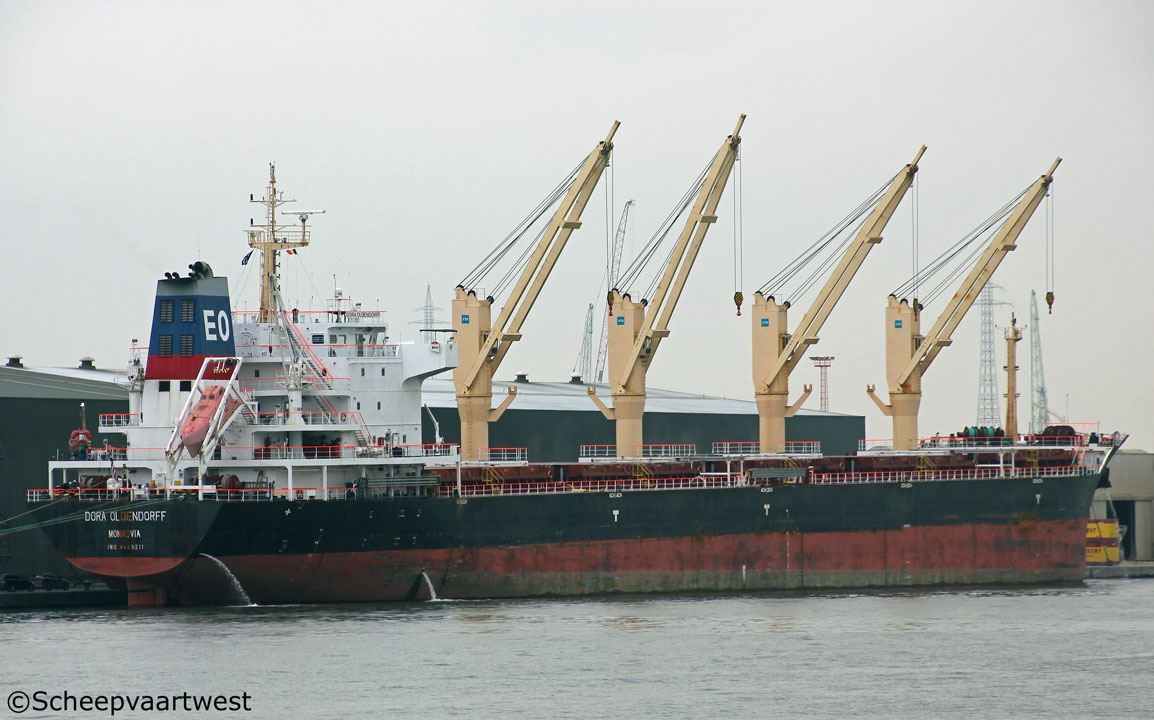

Dora Oldendorff 01

Antwerpen 06 February 2017



Dora Oldendorff 02
Antwerpen 06/02/17



Name

DORA OLDENDORFF

Previous names

2010 - 01.2014 Peace Success

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9489211

Call sign

A8VG5

Flag

Liberia

Port of registry

Monrovia

GT

19.982 t registered

DWT

Summer: 33.108 t

NT

11.905 t registered

Length

177,40 m overall

Breadth

28,20 m moulded

Draught

Summer: 10,21 m

Moulded L x B x D

168,00 x 28,20 x 14,20 m

Registered L x B x D

169,02 x 28,20 x 14,20 m

Freeboard

Summer: 4.023 mm

Depth

14,20 m moulded

Speed

13,9 knots

Built

2010

Keel laid

04.10.2008

Launch date

21.11.2009

Date of completion

25.01.2010

Builder

Zhejiang Zhenghe Shipbuilding Co.,Ltd.
Zhoushan
China

Yard number

3022

Hull material

Steel

Main engine

1x MAN-B&W-STX 6S42MC - 2 stroke single acting 6 cylinder 420 x1.764 mm diesel engine 6.480 kW at 136,0 rpm

Manufacturer: STX Engine Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 425 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 9,0 bar

Evaporation: 2,20 t/h

Manufacturer: Kangrim Heavy Industries Co., Ltd.

Shaft generator

3x Main diesel generatorsets each 520 kW

Number of holds

5

Cargo hold capacity

Grain: 42.202,03 m³

Tank capacities

Fuel oil: 1.796,29 m³

Fresh water: 363,90 m³

Cargo gear

4x cranes - SWL 30,0 t each

Manager

Oldendorff Carriers GmbH & Co. KG
Willy-Brandt-Allee 6
23554 Lübeck

Germany

Registered owner

Bareboat charterer: Rosebank Maritime Inc.

Latest data adjustment

20 February 2017
