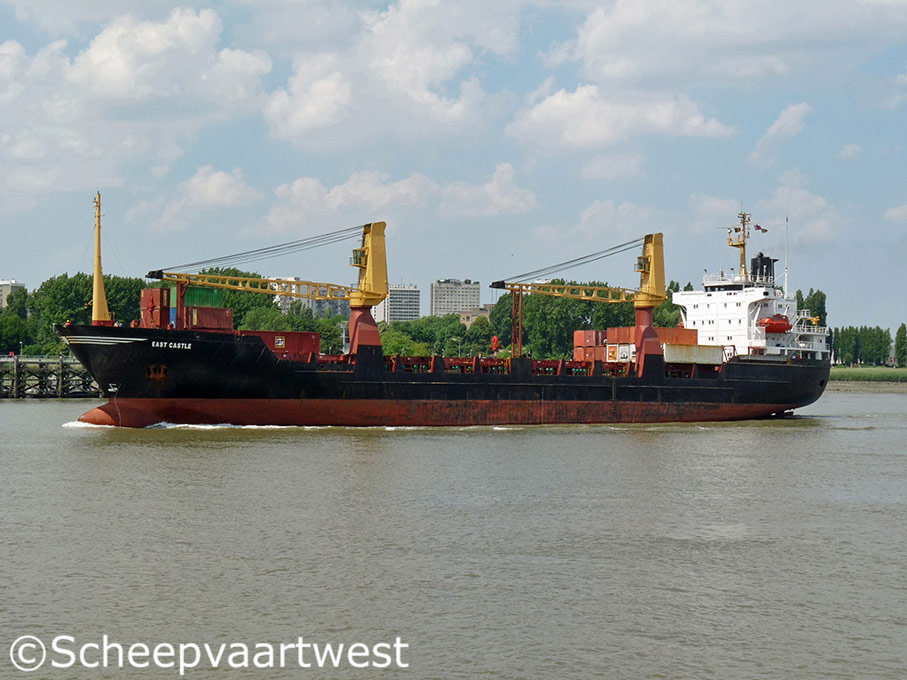

East Castle 05
Antwerpen 02 July 2010

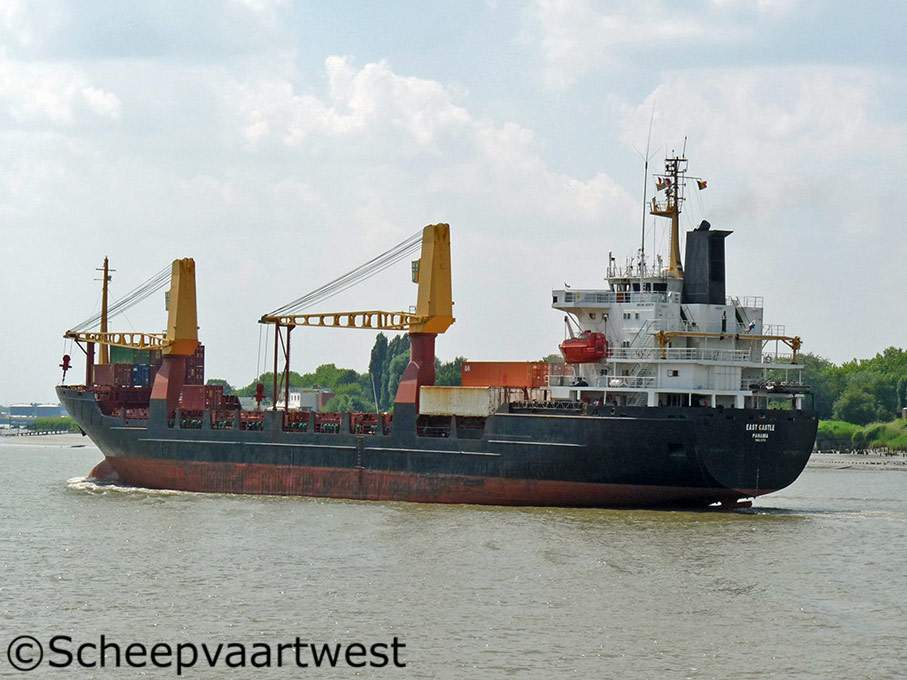

East Castle 01   East Castle 08
Antwerpen 02/07/10 Antwerpen 02/07/10



Name

EAST CASTLE

Previous names

1983 Ville D'Aurore

1988 Annapurna

1988 David Bluhm

1990 Eagle Sea

1990 David Bluhm

1992 OOCL Affluence

1993 David Bluhm

1999 Eagle Prosperity

2008 Range

2009 Ameglia Star

Type

General cargo Bulk carrier

Sub type

Containership

IMO-number

8215778

Call sign

HO8114

Flag

Republic of Panama

Port of registry

Panama City

GT

8.328 t

Panama: 8.795 t

Suez: 8.585 t

DWT

Summer: 11.754 t

Winter: 11.339 t

Tropical: 12.173 t

NT

4.654 t

Panama:6.404 t

Suez: 6.895,5 t

Displacement

Summer: 15.897 t

Winter: 15.459 t

Tropical: 16.293 t

Light ship

4.143 t

Number of 20ft containers

In hold: 286

On hatch cover: 355

Total: 641

Length

133,35 m overall

122,97 m between perpendiculars

Breadth

20,20 m moulded

Draught

Summer: 8,67 m

Winter: 8,486 m

Tropical: 8,846 m

Freeboard

Summer:2,78 m

Winter:2,96 m

Tropical: 2,60 m

Depth

11,40 m moulded

Built

1983

Keel laid

12.05.1982

Date of completion

01.03.1983

Builder

J.J. Sietas Shipbuilding KG
Hamburg
Germany

Hull type

Partly double bottom

Main engine

1x Krupp MAK 6 M 601 - 6 cylinder diesel engine - 4.411 kW / 5.915 hp at 425 rpm

Propeller

1x Pitch propeller- left handed lips

Generators

3x Yanmar S 185 L-Ut diesel generatorsets each 450 kW at 750 rpm

Built: 1976

Number of holds

5

Hold capacity

Hold 1 - Grain: 37.250 ft³ / Bale: 33.700 ft³

Hold 2 - Grain: 260.650 ft³ / Bale: 243.500 ft³

Hold 3 - Grain: 254.100 ft³ / Bale 249.600 ft³

Hold 4 & 5: nil

Total - Grain: 552.000 ft³ / Bale 526.800 ft³

Number of hatches

5

Hatch 1: 6,30 x 13,00 m

Hatch 2: 37,80 x 15,30 m

Hatch 3: 37,80 x 15,30 m

Hatch 4 &5: nil

Hatch cover

Mac Gregor - Folding type / sliding pontoons

TPC

Summer:23,16

Winter:22,99

Crew

Max.: 25

Manager

Konvoy Maritime Ltd.
1570 Sokak
Çinarli - Izmir

Turkey

Owner

Tacopina Investment Co.
