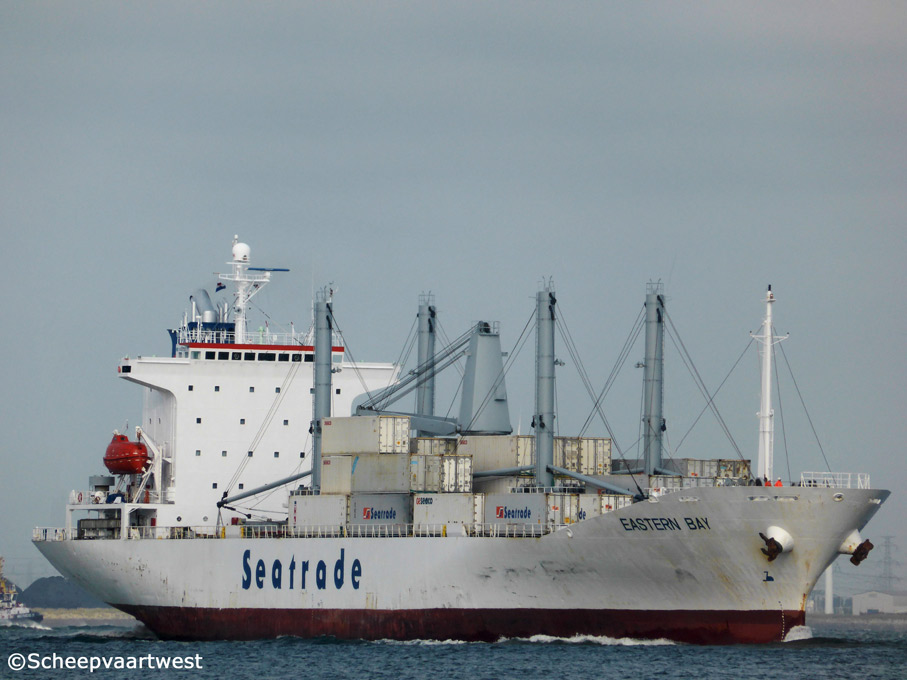

Eastern Bay 01

Westerschelde 17 June 2014

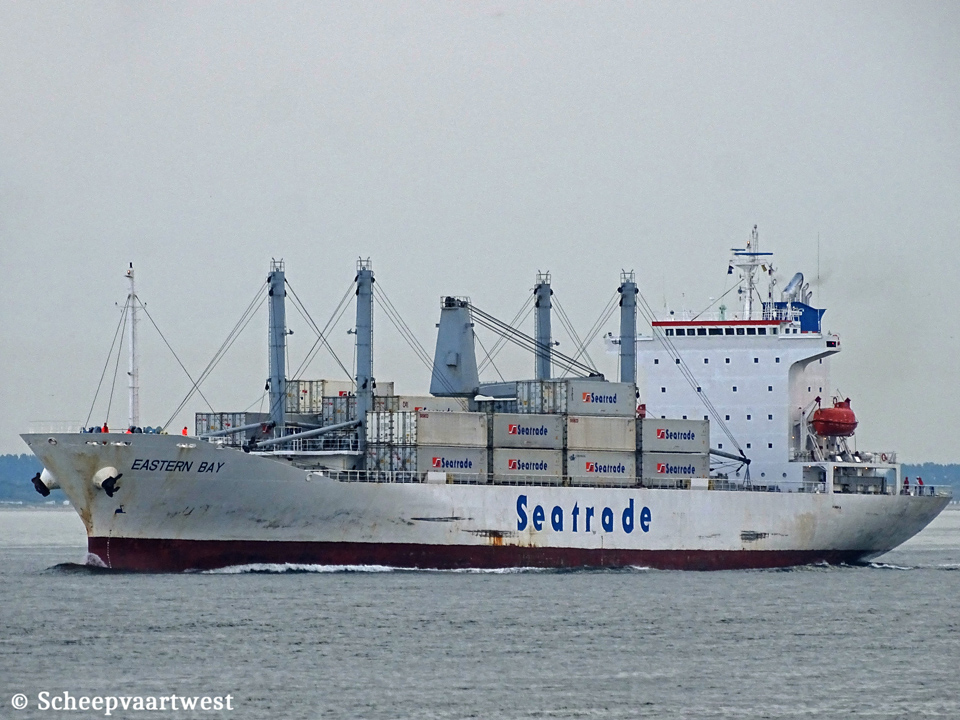

Eastern Bay IMO 9143752 02
Westerschelde 24/06/19









Name

EASTERN BAY

Previous names

1997 Launch as: Frost Express

03/1997 - 07/2005 Eastern Express

Type

Refrigerated cargo ship

IMO-number

9143752

Call sign

A8IO9

Flag

Liberia

Port of registry

Monrovia

GT

8.917 t

DWT

Summer: 9.638 t

NT

4.366 t

Panama: 7.699 t

Suez: 8.032 t

Container capacity

93 FEU OR 138 TEU + 24 FEU

Reefer plug

73

Length

143,00 m overall

133,00 m between perpendiculars

Breadth

22,00 m

Draught

Summer: 8,29 m

Winter: 8,12 m

Freeboard

4.743 mm

Depth

13,01 m

Speed

Max.: 21,7 knots

19,5 knots banana laden

Built

1997

Date of completion

01/03/1997

Builder

Kitanihon Shipbuilding Co., Ltd.

Hachinohe

Japan

Yard number

306

Hull material

Steel

Watertight compartments

7

Continuous decks

1

Main engine

1x Mitsubishi-Akasaka 7UEC50LSII - 2 stroke single acting 7 cylinder 500 x 195 mm combustion engine 9.628 kW / 13.081 hp at 124,0 rpm

Built: 1996

Builder: Akasaka DIesels Limited, Yaizu - Japan

Propellers

1x Screw propeller solid - aft at 124,0 rpm

Boilers

1x CHO Miura 13,50 m² - 7,0 bar

1x CHR Miura 180,00 m² - 11,0 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 110 V

Frequency: 60 Hz

Generators

3x Diesel generatorsets each 1.000 kVA - 800 kW - 1.198 hp

Emergency generator

1x Diesel generatorset 40 kVA - 32 kW - 54 hp

Holds / Hatches / Compartments

4 / 4 / 15

Total capacity of holds

14.730 m³ / 533.899 ft³

Floorspace

5.915,1 m²

Pallets

4.500

Cooling sections

8

Tank capacity

Fuel oil: 1.325 t

Marine diesel oil: 120 t

Cargo gear

1x Crane - SWL 40,0 t

8x Derricks - SWL 6,0

Manager

Triton Schiffahrt GmbH & Co.KG

Hafenstraße 6

26789 Leer

Germany

Operator

Seatrade Reefer Chartering N.V.

Noorderlaan 147

2030 Antwerpen

Belgium

Registered owner

Eastern Bay Schifffahrtsgesellschaft mbH & Co. KG

Renamed

2020 Frio Galicia

Republic of Panama, Panama city - Call sign: 3FPV3

Owner: Axelia Maritime S.A.

Latest data adjustment

10 July 2021
