| Antwerpen 24 April 2013 |
 |
| Antwerpen 24/04/13 |
|
Name |

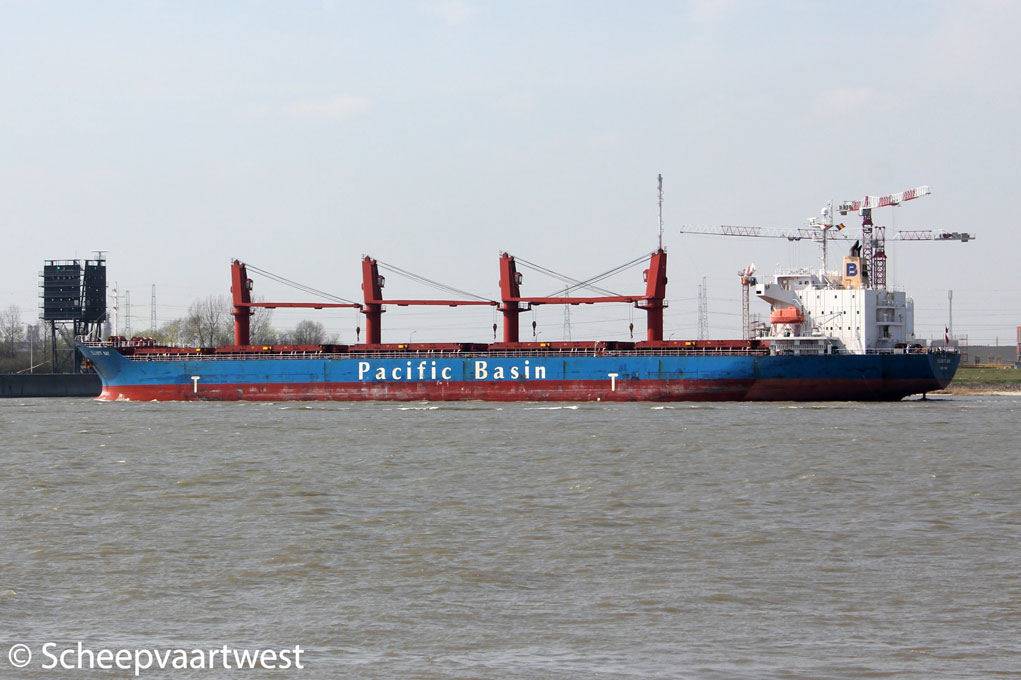

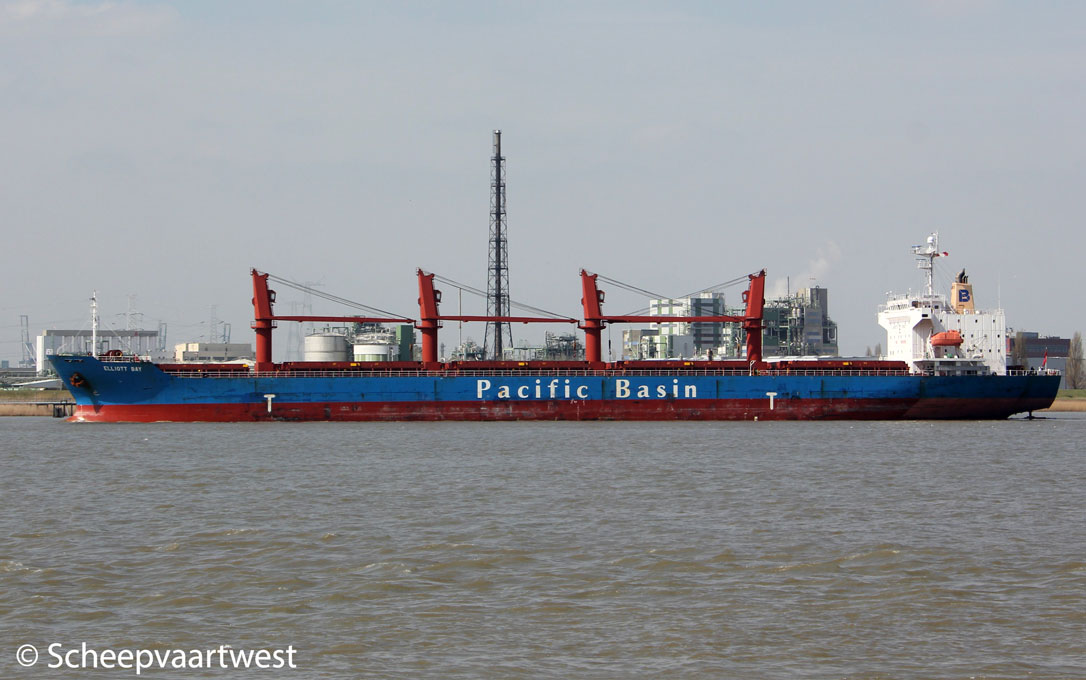

ELLIOT BAY |
|
Type |
General cargo - Single deck |
|
IMO-number |
9473597 |
|
Call sign |
VREU3 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
20.236 t registered |
|
DWT |
32.216 t |
|
NT |
10.909 t registered |
|
Length |
177,13 m overall |
|
Breadth |
28,00 m |
|
Moulded L x B x D |
168,50 x 28,40 x 14,25 m |
|
Registered L x B x D |
169,45 x 28,40 x 14,25 m |
|
Draught |
10,02 m |
|
Depth |
14,25 m moulded |
|
Speed |
14,2 knots |
|
Built |
2009 |
|
Keel laid |
23.08.2007 |
|
Launch date |
16.10.2008 |
|
Date of completion |
30.01. 2009 |
|
Builder |
Kanda Shipbuilding Co., Ltd. |
|
Yard number |
509 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x Mitsubishi/Kobe 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine - 6.620 kW at 125,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 2,01 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
3x Main diesel generatorsets 1.200 kVA |
|
Cargo capacity |
Bales: 40.987 m³ Grain: 42.452 m³ |
|
Tank capacities |
Fuel oil: 1.934 m³ Fresh water: 230 m³ Water ballast: 12.501 m³ |
|
Manager |
Anglo-Eastern Ship Management Ltd. |
|
Operator |
Pacific Basin |
|
Owner |
Yamamaru Kisen |
|
Registered owner |
Ocean Transit Carrier S.A. |
|
Last update |
08.05.2013 |
