Ellenborg - IMO 9488061

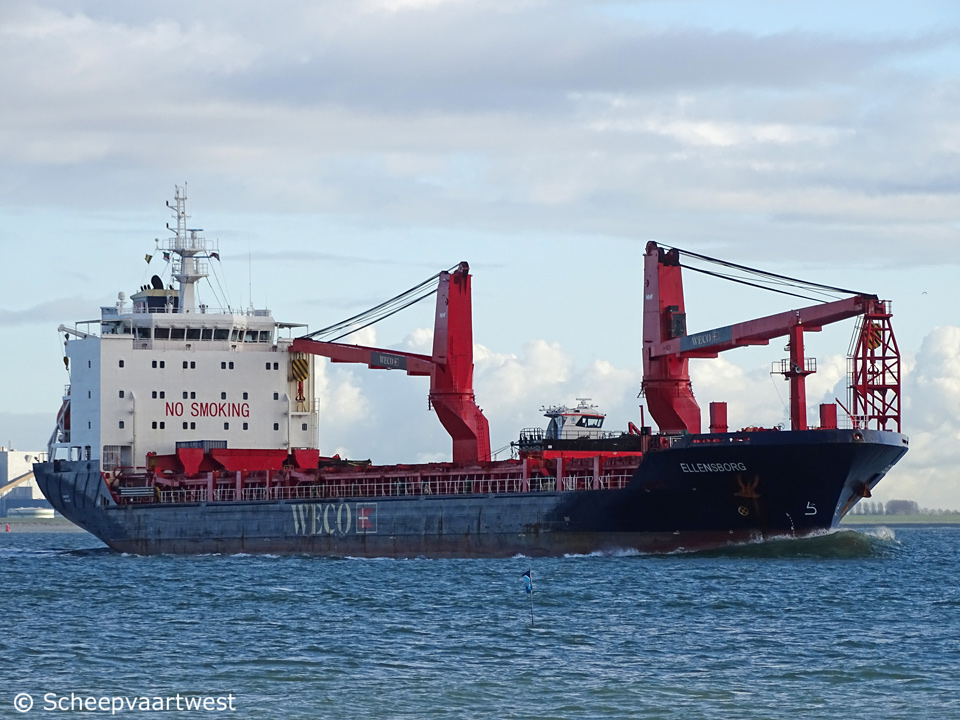

Westerschelde 29 November 2017

Name

ELLENBORG

Previous names

2011 - 02.2012 Ellenborg

02.2012 - 12.2012 Clipper Amber

Type

General cargo vessel - Heavy lift vessel

IMO-number

9488061

Call sign

3EUA7

Flag

Republic of Panama

Port of registry

Panama City

GT

9.627 t

DWT

Summer: 12.731 t

Number of 20ft containers

In hold: 334

On deck: 331

Total: 665

Number of 40ft containers

In hold: 258 + 22 TEU

On deck: 136 + 24 TEU

Total: 294 + 46 TEU

Container capacity 14t

528

Reefer capacity

50

Length

139,00 m

Breadth

21,00 m

Draught

7,60 m

Depth

15,00 m

Speed

15,0 knots

Built

2011

Keel laid

01.04.2011

Date of completion

17.10.2011

Builder

Taizhou Sanfu Ship Engineering Co., Ltd.

No.1 Machuan West Road Yong'an Town

Gaogang District Taizhou

225327 Jiangsu

People's Republic of China

Yard number

SF070110

Hull material

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

5

Continuous decks

1

Main engine

1x Mak 6M43C - 4 stroke 6 cylinders 430 x 610 mm diesel engine 5.400 kW at 500 rpm

Transmission: main propulsion acts through gear on the propellershaft

Starter type: compressed air direct

Manufacturer: Caterpillar Motoren GmbH & Co., KG

Propellers

1x Controllable pitch propeller - aft at 132 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 88,6 m²
1x Thermal oil heater, oil fired - 13,0 bar
Heating surface: 39,0 m²
Year of Manufacture 2009

Manufacturer: Alfa Laval Aalborg A/S

Electric installations

3x Plant 400 V - 626,25 kVA
1x Plant 400 V - 875 kVA
1x Plant 400 V - 124 kVA
2x Plants each 24 V - 80 Ah
1x Plant 24 V - 85 Ah
1x Plant 24 V - 102 Ah
3x Plants each 24 V - 120 Ah

Shaft generator

1x 875 kVA

Generators

3x Main diesel generatorsets each 626,25 kVA

Emergency generator

1x Diesel generatorset 124 kVA

Batteries

3x Batteries for diesel start each 120 Ah
1x Battery for automation 102 Ah
1x Battery for automation 85 Ah
2x Batteries for diesel start each 80 Ah

Compressed air receivers

2x Receivers, each 1.000 litres - 30,0 bar
1x Receiver 60 litres - 30,0 bar
1x Receiver 1.000 litres - 10,0 bar
1x Receiver 250 litres - 10,0 bar

Bow thruster

1x Jastram transverse thruster - 500 kW

Number of holds

3

Hold 1: 18,75 x 15,0 2/10,02 x 10,53 m

Hold 2: 42,00 x 17,50 x 11,18 m

Hold 3: 25,50 x 17,48 x 10,77 m

Cargo hold capacity

Hold 1: 2.663,80 m³

Hold 2: 7.957,50 m³

Hold 3: 4.822,70 m³

Total: 15.444 m³

Number of hatches

3

Hatch 1: 18,75 x 15,00 / 10,00 m
Hatch 2: 42,00 x 17,50 m
Hatch 3: 25,50 x 17,50 m

Hatch type

Steel folding hatch cover / Hydraulic

Tank capacities

Heavy Fuel Oil: 948 m³
Gas Oil: 150 m³
Lub oil: 54 m³
French Water; 141 m³
Ballast Water: 5.000 m³

Anchor equipment

3x Anchors weight each 4.590 kg
Chain length: 550,00 m

Cargo gear

2 x NMF Cranes (portside) - SWL each 150,00 / 120;00 / 70;00 t

Crew size

18

Operator

Wico Projects

Latest data adjustment

31 December 2017
