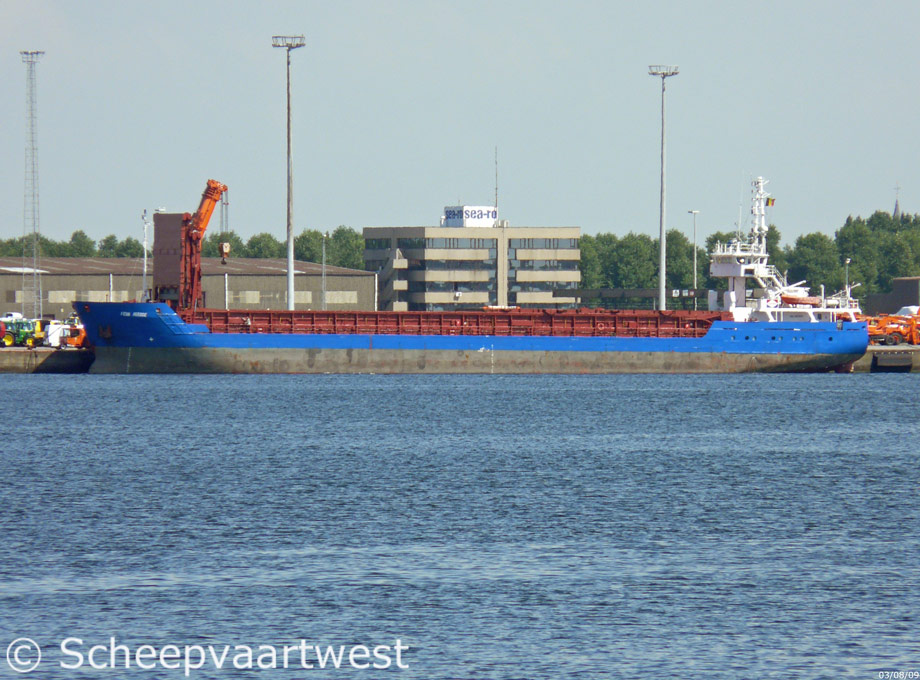

Fehn Mirage 01
Zeebrugge 03 August 2009



Name

FEHN MIRAGE

Previous names

30/03/2002 Pan

06/03/2005 Wani River

14/07/2006 Harleriff

Type

General cargo ship - Equipped for carriage of containers

IMO-number

9252929

Call sign

ZDFC3

Flag

Gibraltar

Port of registry

Gibraltar

GT

2.061 t

DWT

Summer: 2.974 t

NT

1.161 t

Number of 20ft containers

118

Reefer plug

6

Length

88,45 m overall

84,96 m between perpendiculars

Breadth

11,35 m registered

Draught

Summer: 4,943 m

Forecastle

6,46 m

Poop

16,80 m

Air draft

25,10 m (basis full ballast)

Freeboard

1.460 mm

Depth

6,40 m moulded

Speed

10,5 knots

Built

2002

Keel laid

29/06/1998

Launch date

16/01/2002

Date of completion

04/2002

First movement

28/04/2002

Builder

Slovenske Lodenice Komarno A.S.
Pol' na 3
811 08 Bratislava
Slovak Republic

Yard number

1712

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Partly double bottom, (E.G. Interrupted in way of machinery space)

Watertight bulkheads

4

Continuous decks

1

Main engine

1x Deutz SBV 6 M 628 - 4 stroke single acting 6 cylinder 240 x 280 mm combustion engine 1.125 kW

Year of manufacture: 2001

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of Germany

Propeller

1x Solid propeller - aft

Boiler

Water heater, oil fired - 5,0 bar
Year of manufacture: 2001

Electric installations

1x 380/220 V - 350 kVA

1x 380 V - 116 kVA

1x 380 V - 100 kVA

Shaft generator

1x 116 kVA

Generators

2x Main diesel generatorsets each 175 kVA

Emergency generator

1x Diesel generatorset 100 kVA

Compressed air receivers

2x Receivers, each 125 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster 'JASTRAM' - 130 kW, forward

Cargo capacity

Grain: 4.165 m³

Tank capacities

Water ballast: 1.144,60 m³

Bunker: 126 t

Gas oil: 135,70 m³

Number of holds

1

57,50 m x 9,00 m x 8,04 m

Number of hatches

1

Length: 57,50 m
Breadth: 9,00 m

Strength on main deck

1,6 t/m²

Strength on tank top

12 t/m²

Anchor Equipment

3x Anchors weight each 1.440 kg

Chain length: 412,50 m

Crew

7

Manager

Fehn Bereederungs GmbH & Co. KG
Hafenstr. 10a
26789 Leer
Federal Republic of Germany

Owner

Fehn Schiffahrts GmbH & Co. KG MS "FEHN MIRAGE"
Hafenstr. 10a
26789 Leer
Federal Republic of Germany

Special annotation

Wheelhouse hydraulic lowering

Vessel is fitted with two moveable bulkheads, not fully box-shaped

Renamed

2017 Marie

Belgium, Antwerpen - Call sign: ONJC

Manager: Boeckmans België NV

Owner: Rederij AD & C NV

Latest data adjustment

07 November 2018
