Westerschelde 18 August 2018 |
Name |

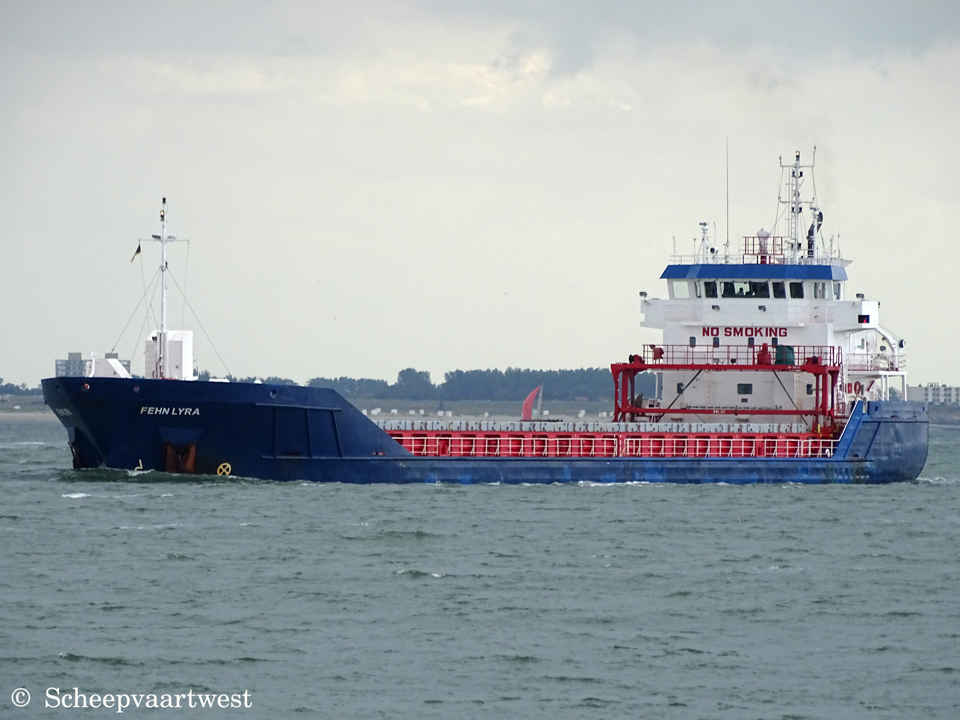

FEHN LYRA |
Previous names |
11/2010 - 07/2013 Union Emerald 07/2013 - 04/2016 Fluvius Tamar |
Type |
Multi-purpose dry cargo ship - Singledecker - Gearless - Strengthened for heavy cargo |
IMO-number |
9374741 |
Call sign |
YLOH |
Flag |
Latvia |
Port of registry |
Riga |
Previous flags |
2010 - 2013 United Kingdom - Isle of Man, Douglas - Call sign: 2DTB5 2013 - 2016 The Netherlands, Delfzijl - Call sign: PCWT |
GT |
2.967 t |
DWT |
Summer: 4.448,8 t |
NT |
1.554 t |
Number of 20ft containers |
On deck: 38 |
Length |
89,95 m overall 84,96 m between perpendiculars |
Breadth |
14,42 m extreme |
Draught |
Max: 5,80 m |
Air draft |
26,50 m |
Depth |
7,85 m |
Speed |
11,0 knots |
Built |
2010 |
Keel laid |
15/12/2008 |
Launch date |
02/04/2010 |
Date of completion |
09/11/2010 |
Builder |
Chowgule & Company Private Ltd. Shipbuilding Division Loutulim |
Yard number |
C185 |
Hull material |
Steel |
Continuous decks |
1 |
Main engine |
1x Mak 6M25 - 4 stroke single acting 6 cylinder combustion engine 1.980 kW at 750 rpm Manufacturer:Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
Propellers |
1x Controllable pitch propeller |
Shaft generator |
1x 312 kW |
Generators |
3x Sisu diesel 634 DSBIG diesel generatorsets each 168 kW |
Bow thruster |
1x 250 kW |
Number of holds |
1 62,30 x 11,70 x 8,12 m |
Cargo hold capacity |
Grain/Bale: 5.717 m³ - 202.291 ft³ |
Hold ventilation |
6 per/hour |
Number of hatches |
1 62,30 x 11,70 m |
Hatch cover type |
Pontoon |
Max permitted loads |
Main deck: 1,3 t/m³ Tanktop: 15,0 t/m² |
Tank capacities |
Ballast: 1.922 m³ HFO: 265 m³ MGO: 65 m³ fresh water: 50 m³ |
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
Crew size |
9 |
Manager |
Fehn Ship Management GmbH & Co. KG |
Previous managers |
2010 - 2013 Union Transport Group PLC., Douglas (I.o.M.), Isle of Man - United Kingdom 2013 - 2016 Amasus Shipping B.V., Delfzijl - The Netherlands |
Registered owner |
Fehn Schiffahrts GmbH & Co. KG MS "FEHN LYRA" |
Previous names & owners |
11/ 2010 - 07/2013 Union Emerald - Union Transport Group PLC., Douglas (I.o.M.), Isle of Man - United Kingdom 07/2013 - 04/2016 Fluvius Tamar - Quay Marine Services B.V., Delfzijl - The Netherlands |
Latest data adjustment |
14 December 2018 |
