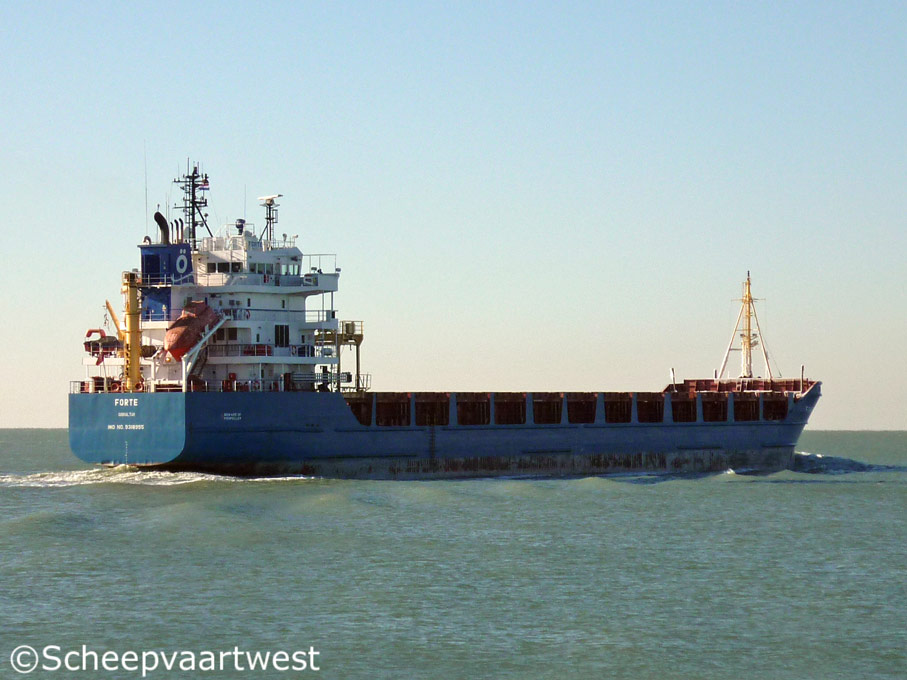

| Westerschelde 02 February 2012 |
|
Name |
FORTE |
|
Previous names |
Volna |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9318955 |
|
Call sign |
ZDGR3 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
5.232t |
|
DWT |
6.419 t |
|
NT |
2.382 t |
|
Light ship |
2.955,13 t |
|
Number of 20ft containers |
323 |
|
Reefer plugs |
30 Reefer plugs in the cargo hold 8 Reefer plugs on deck |
|
Length |
115,50 m overall 111,63 m registered |
|
Breadth |
16,50 m registered |
|
Draught |
5,78 m |
|
Forecastle |
8,77 m |
|
Poop |
12,86 m |
|
Freeboard |
2.262 mm |
|
Depth |
7,95 m |
|
Speed |
Max. at sea 12,0 knots |
|
Built |
2005 |
|
Keel laid |
18.06.2003 |
|
Launch date |
19.11.2004 |
|
Date of completion |
04.02.2005 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. |
|
Yard number |
SB350-1 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAK 8 M 32 C - 4 stroke 8 cylinder 320 x 480 mm diesel engine - 3.840 kW at 600 rpm Year of manufacture: 2004 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 192 rpm |
|
Boilers |
Water heater, oil fired - 4,0 bar Heating Surface: 14,6 m² Year of manufacture: 2004 Manufacturer: Viessmann Werke Berlin GmbH |
|
Electric installation |
2x Plants each 400/230 V - 325 kVA 1x Plant 400 V - 500 kVA 1x Plant 400 V - 125 kVA |
|
Shaft generator |
1x 500 kVA |
|
Generators |
2x Main diesel generators each 325 kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 33,0 bar 1x Receiver 500 litres - 12,0 bar |
|
Bow thruster |
1x Transverse thruster - 350 kW, forward |
|
Number of cargo holds |
2x Cargo holds 1x Single-pull Cover |
|
Cargo hold dimensions |
Box-shaped Hold 1: 19.72 x 13.5 x 9.03 m Hold 2: 57.89 x 13.5 x 9.03 m |
|
Max. cargo hold capacity |
Hold 1: 2.405 m³ Hold 2: 7.062 m³ |
|
Maximum tank top load |
15 t/m² |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m |
|
Crew size |
12 |
|
Manager |
GBS-Shipmanagement GmbH & Co. KG |
|
Registered owner |
Osterstroms Nordic AB |
