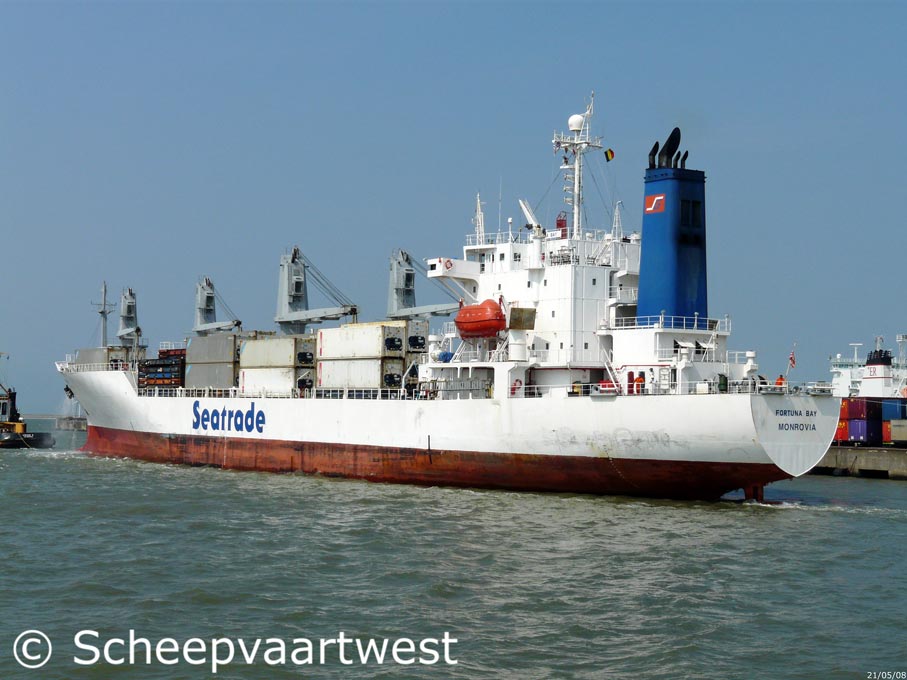

| Zeebrugge 21 May 2008 |
|
Name |
FORTUNA BAY |
|
Previous names |
1993 - 1999 Uruguayan Reefer 1999 - 08/2003 Fortune Bay 08/2003 Fortuna Bay |
|
Type |
Frozen cargo Refrigerated cargo carrier |
|
IMO-number |
9067128 |
|
Call sign |
A8JH6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
1993 08/2003 Republic of Panama 08/2003 - 03/2006 Netherlands Antilles |
|
GT |
10.203 t registered Panama: 11.443 t Suez: 10.662,54 t |
|
DWT |
Summer: 11.585 t |
|
NT |
5.869 t registered Panama: 9.353 t Suez: 9.305,54 t |
|
Number of 20ft containers |
88 |
|
Number of 40ft containers |
44 |
|
Reefer plugs |
44 On weather decks |
|
Length |
144,52 m overall 136,00 m between perpendiculars |
|
Breadth |
21,80 m moulded |
|
Draught |
Summer: 9,18 m |
|
Freeboard |
3.930 mm |
|
Depth |
13,10 m moulded |
|
Speed |
19,0 knots |
|
Built |
1993 |
|
Keel laid |
16/03/1993 |
|
Launch date |
03/06/1993 |
|
Delivery date |
10/12/1993 |
|
Builder |
Shin Hurushima Dockyard Co. Ltd. |
|
Yard number |
2780 |
|
Hull material |
High strength steel |
|
Hull type |
Single hull |
|
Number of decks |
2 |
|
Bulkheads |
Water tight: 6 Oil tight: 8 |
|
Main engine |
1x Mitsubishi 7UEC52LS - 2 stroke single acting 7 cylinder 520 x 1.850 mm combustion engine 9.265 kW / 12.596 bhp at 120,0 rpm Manufacturer name: Kobe Hatsudoki K.K., Kobe - Japan |
|
Propeller |
1 Manufacturer name: Nakashima Propeller |
|
Steam piping system |
1x Composite vertical exhaust gas and fired boiler MKSC 24-1600/1200 - 6,0 bar |
|
Generators |
3x FEK50A-10 diesel generatorsets each 880 kW Manufacturer name: Taiyo Electric MFG |
|
Holds / Hatches / Compartments |
4/4/19 |
|
Cargo capacity |
15.066,14 m³ |
|
Floorspace |
6.351,2 m² |
|
Ventilation |
Vertical |
|
Air changes |
90 |
|
Lifting equipment |
1x Deck crane for no.01 hatchway (after centre) & no.2 hatchway (fore centre) - SWL 8,0 t 1x Deck crane for no.03 hatchway (after centre) & no.4 hatchway (fore centre) - SWL 8,0 t Manufacture name: Nishishiba Electric |
|
Number of tanks |
Fuel oil: 9 Ballast: 9 Lubricating oil: 6 Diesel oil: 3 Fresh water: 2 Chain: 2 Sludge: 1 Waste water: 1 Slop: 1 |
|
Tank capacities |
Diesel oil: 156,12 m³ / 134,263 t Freshwater: 212,60 m³/ 212,60 t Fuel Oil: 1677,14 m³ / 1626,825 t Lube Oil: 104,01 m³ / 93,609 t Other Capacity: 32,71 m³ / 10,42 t Ballast: 1412,99 m³ / 1448,314 t |
|
Cargo gear |
1x Crane - SWL 36,0 t 3x Cranes - SWL 8,0 t each |
|
Manager |
Triton Schiffahrts GmbH & Co KG |
|
Previous manager |
1993 - 1999 Toshin Kisen Co. Ltd.,Tokyo - Japan 1999 - 08/2003 Unknown 08/2003 - 06/2006 Seatrade B.V., Groningen - The Netherlands |
|
Owner |
Fortuna Bay Schiffahrts GmbH |
|
Charter |
Seatrade |
|
Registered Owner |
Fortuna Bay" Schifffahrtsgesellschaft Mbh & Co KG |
|
Previous owners |
1993 - 1999 Este Dios S.A. - Republic of Panama 08/2003 - 06/2006 Fortuna Bay Company N.V., Willemstad - Netherlands Antilles |
|
Renamed |
01/2019 Yong Hang 3 Republic of Panama, Panama City - Call sign: 3FBA2 Manager: Yonghang International Shipping Co., Limited, Hong Kong - China Owner: Yonghang International Shipping Co., Limited., Hong Kong - China |
|
Latest data adjustment |
26 March 2019 |
