Westerschelde 29 March 2016 |
 |
 |
 |
||

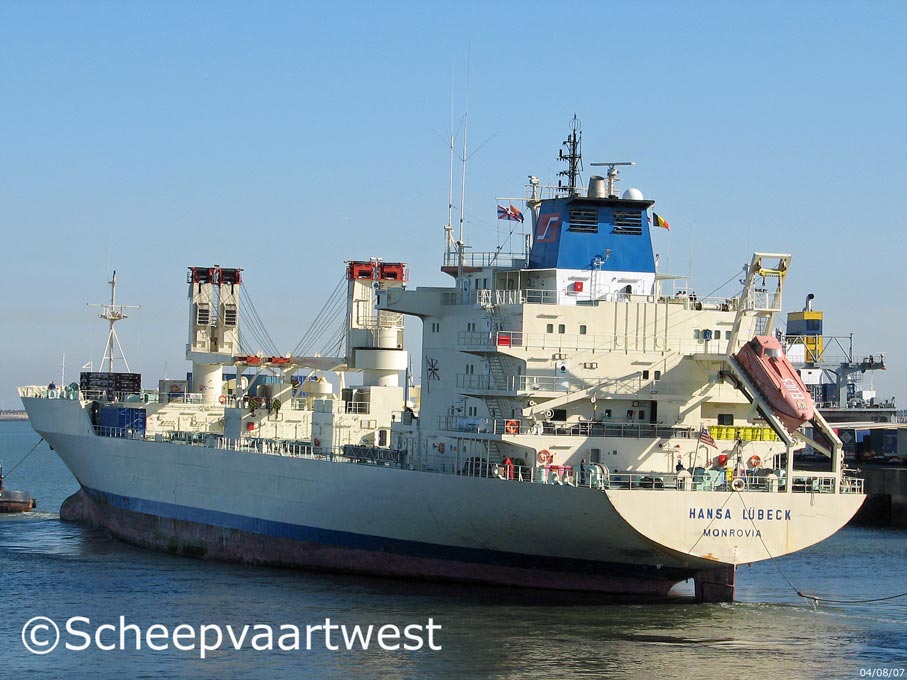

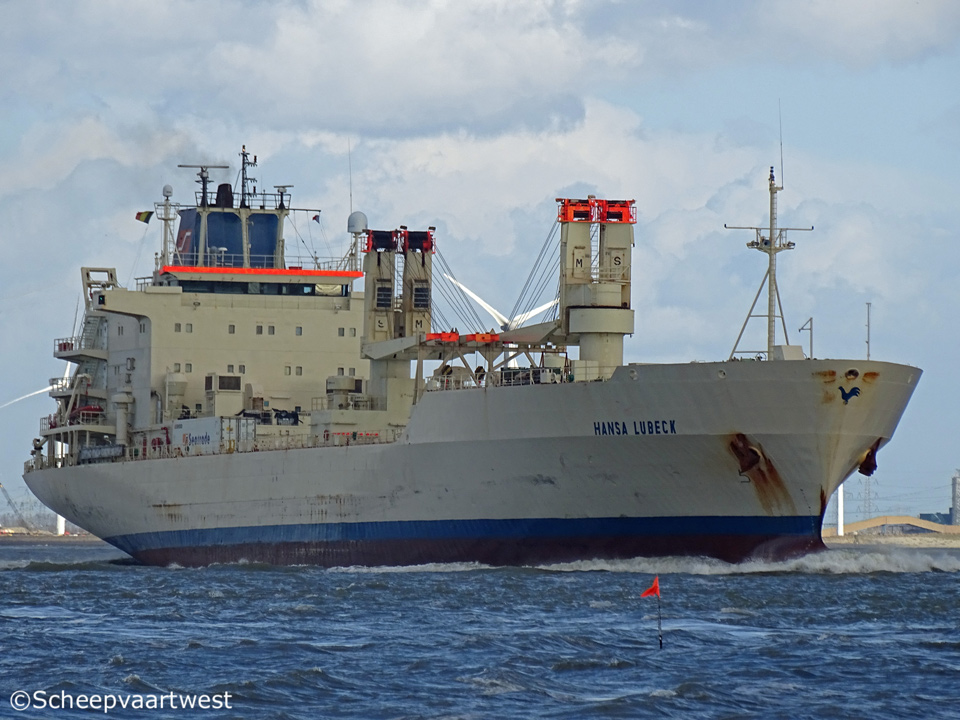

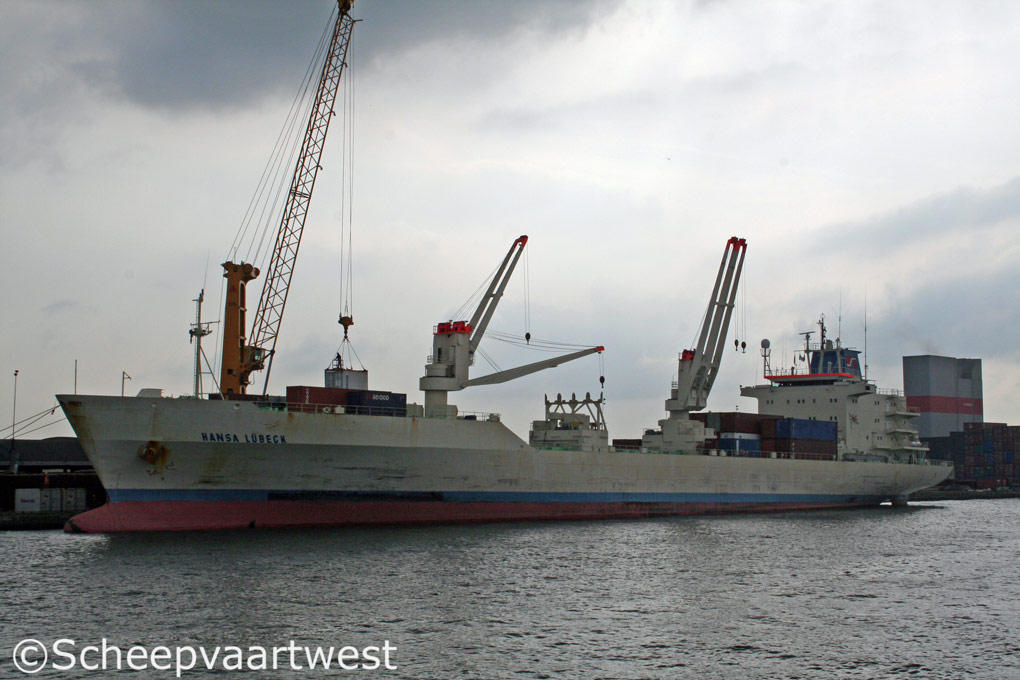

| Zeebrugge 04/0/07 | Antwerpen 31/08/11 | Westerschelde 24/01/14 |
|
Name |
HANSA LÜBECK |
|
Type |
Refrigerated cargo ship - Equipped for carriage of cars - Equipped for carriage of containers |
|
IMO-number |
8909068 |
|
Call sign |
8PLL |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
Previous flag |
1990 Germany 2009 - 2014 Liberia, Monrovia - Call sign: ELUC5 |
|
GT |
10.842 t |
|
DWT |
Summer: 12.942 t |
|
NT |
6.381 t Panama: 9.670 t Suez: 9.580 t |
|
Container capacity |
On deck: 206 TEU or 102 FEU + 2 TEU |
|
Reefer plugs |
78 On weatherdecks |
|
Length |
156,53 m overall |
|
Breadth |
23,04 m overall |
|
Draught |
Summer: 9,53 m |
|
Forecastle |
44,36 m |
|
Freeboard |
3.690 mm |
|
Depth |
13,20 m |
|
Speed |
21,0 knots |
|
Built |
1990 |
|
Keel laid |
18/12/1989 |
|
Launch date |
18/08/1990 |
|
Date of completion |
12/1990 |
|
Builder |
|
|
Yard number |
87 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Partly double bottom, (E.G. interrupted in way of machinery space) |
|
Main engine |
1x Bremer Vulkan B&W 7L60MC - 2 stroke single acting 7 cylinder combustion engine - 11.220 kW / 15.259 hp Builder: Bremer Vulkan Bremen - Germany |
|
Number of screws |
1x Solid propeller (keyless) - aft |
|
Generators |
2x Generators each 1.370 kW 1x Generator 960 kW |
|
Cargo capacity |
590.654 ft³ - 6.687 m³ |
|
Floorspace |
6.687 m² |
|
Holds / hatches / compartments |
4 / 4 / 16 |
|
Ventilation / Air changes |
Vertical / 90 |
|
Cargo gear |
4x Cranes SWL - 18 t or 2x Cranes SWL - 35,4 t |
|
Tank capacities |
Ballast: 1.576 m³ Fuel oil: 1.683 m³ |
|
Manager |
Holy House Shipping AB |
|
Previous manager |
Leonhardt & Blumberg, Bremen - Germany |
|
Owner |
Holy House Shipping Sweden |
|
Scrapped |
27/08/2017 Alang - Turkey |
|
Latest data adjustment |
17 June 2018 |
