Heinz G. - IMO 9536521

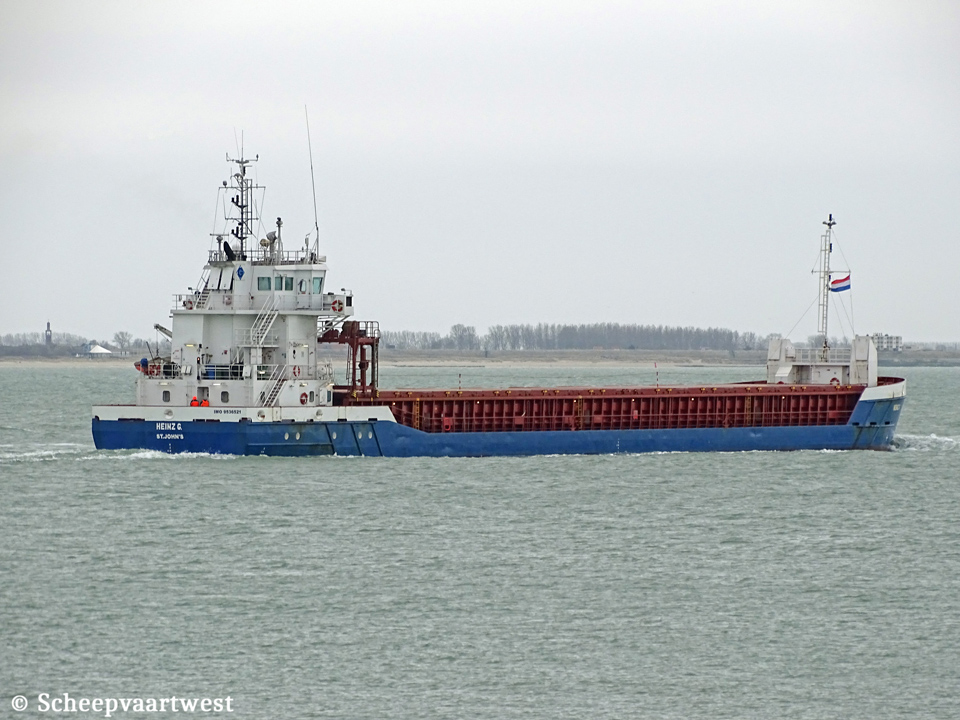

Westerschelde 20 March 2020

Name

HEINZ G.

Previous names

2011 - 2016 Heinz

2016 - 2019 Wilson Dunkirk

Type

Multi-purpose dry cargo ship - Equipped for dangerous goods - Strengthened for heavy cargo

Basic functions

Transport of bulk, steel coils, containers, forest products

IMO-number

9536521

Call sign

V2QE2

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.545 t

DWT

3.813 t

DWCC

Summer:3.600 t

Winter: 3.500 t

NT

1.460 t

Number of 20ft containers

In Hold: 108

On deck: 80

Total: 188

Length

88,60 m overall

84,99 m between perpendiculars

Breadth

12,50 m moulded

Draught

Summer: 5,42 m

Depth

7,00 m

Speed

12,3 knots

Built

2011

Keel laid

04/08/2008

Launch date

01/12/2009

Delivery date

01/2011

Builder casco

Brodogradiliste "Tito" Sava Macvanska Mitrovica

Sremska Mitrovica

Serbia

Builder completion

Damen Shipyards Bergum B.V

Bergum

The Netherlands

Yard number

9401

Hull material

Steel

Hull type

Single hull

Bulkheads

2

Main engine

1x MaK type 8M 20 C - 8 cylinder combustion engine output 1.520 kW at 1.000 rpm

Propeller

1x Controllable pitch propeller - diameter 2.600 mm

Shaft generator

1x 330 kVA - 50Hz

Generators

1x Sisu 634 DSBIG diesel generatorset 175 kVA - 50 Hz

Emergency / harbour gen.

1x Sisu diesel generatorset 77 kVA - 50Hz

Bow thruster

1x 220 kW - Electrically driven

Hold

1

62,70 x 10,10 x 8,43 m

Hatch

2

62,70 x 10,10 m

Hatch type

Steel pontoon hatches with gantry crane

Cargo capacity

Grain & Bales: 5.250 m³ / 185.400 ft³

Max. permitted loads

Tanktop: 15,0 t/m²

Auxiliary equipment

• 1x HFO separator

• 1x LO separator

• 1x GO separator

• 1x Booster-unit

• 2x Fuel oil trim pimps

• 1x Bilge water separator, acc. To Marpol regulations

• 2x General service pumps each 150 m³/h at 2,3 bar

• 1x Fire fighting pump

• 1x Freshwater pressure set

• 1x CO2 xfire fighting system for engine room and cargo hold

• 1x steering gear unit

Deck lay-out & equipment

• 1x Elec. driven bow anchor winch with two warping heads

• 1x Elec. driven capstan aft

• Rudder, fishtail type

• Container fittings in tanktop and on hatch covers

• Lashing eyes in hold and on outside of coaming

• 2x Moveable grain bulkheads with 8 stowage positions

• Electrically driven hold ventilation for 6 air changes per hour

Tank capacities

HFO: 156 m³

Gas oil: 55 m³

Lub oil clean: 8,6 m³

Dirty oil: 4 m³

Sludge: 4 m³

Sewage: 12 m³

Portable water: 55 m³

Ballast water: 1.372 m³

Anchor chain

Length: 440,00 m

Diameter: 34 mm

Accommodation

For captain and crew for a total of 8 persons with heating,

ventilation and air-conditioning

Managing owner

Gerdes Bereederungs- und Verwaltungs GmbH

Hermannstraße 1A

49733 Haren (Ems)

Germany

Register owner

Heinz G. Shipping Co. Ltd.

Latest data adjustment

11 January 2021
