| Antwerpen 27 July 2011 |
 |
 |
|
| Antwerpen16/04/13 | Antwerpen17/04/13 |
|
Name |

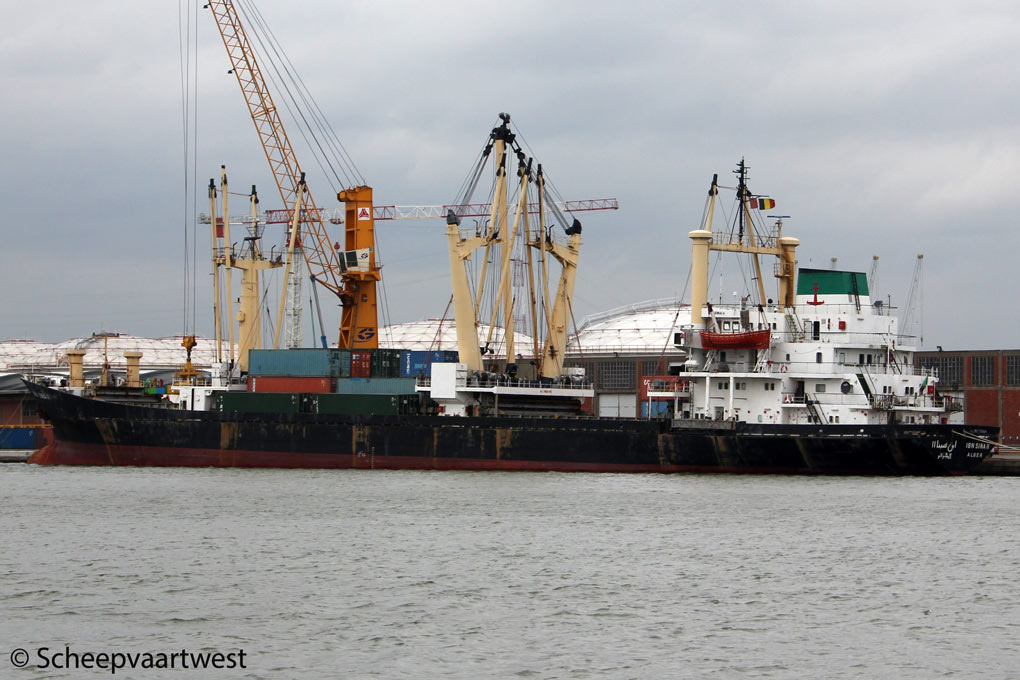

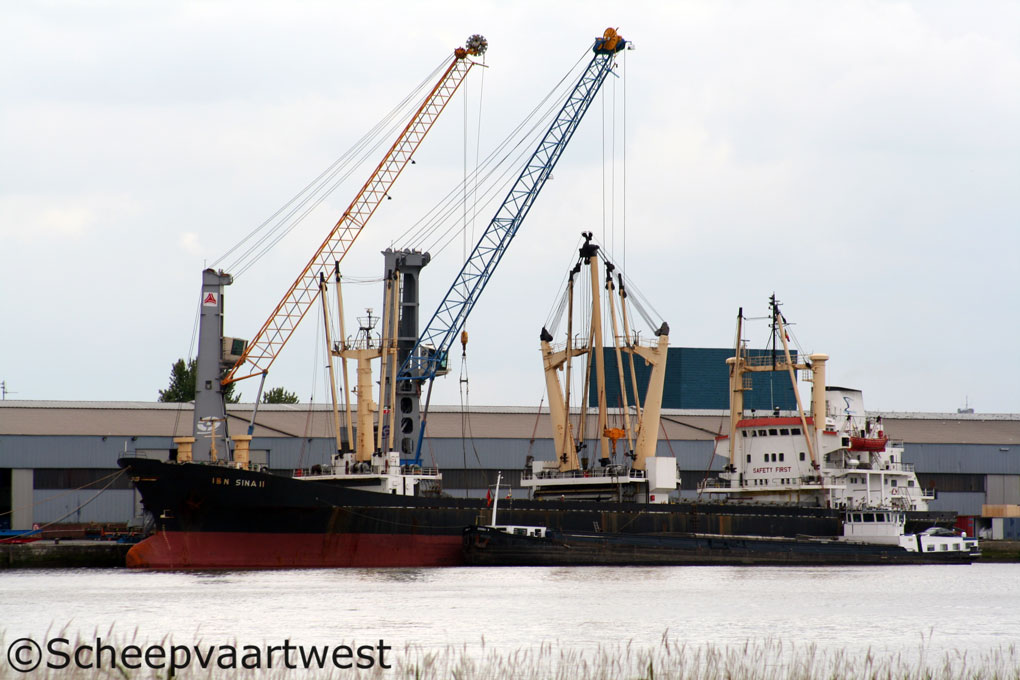

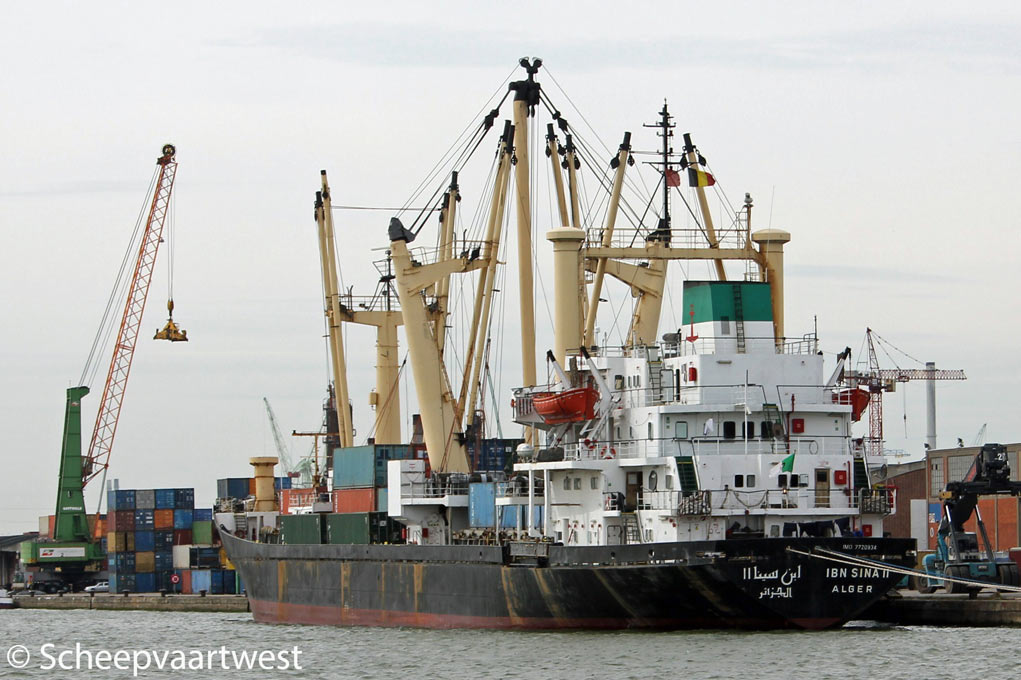

IBN SINA II |
|
Type |
General cargo ship - Strengthened for heavy cargo |
|
IMO-number |
7720934 |
|
Call sign |
7THM |
|
Flag |
Algeria |
|
Port of registry |
Alger |
|
GT |
5.403 t |
|
DWT |
8.190 t |
|
NT |
3.471 t |
|
Number of 20ft containers |
258 |
|
Length |
126,47 m overall 117,70 m registered |
|
Breadth |
17,21 m registered |
|
Draught |
7,352 m |
|
Forecastle |
8,45 m |
|
Depth |
9,92 m moulded |
|
Speed |
15,0 knots |
|
Built |
1978 |
|
Keel laid |
22.02.1978 |
|
Launch date |
19.05.1978 |
|
Date of completion |
07.1978 |
|
Builder |
Schlichting-Werft GmbH |
|
Yard number |
1406 |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8 MU 551 AK 4 stroke 8cylinder 450x 550 mm diesel engine - 3.678 kW / 5.000 hp at 425 rpm Year of manufacture: 1978 Manufacturer: MaK Maschinenbau GmbH |
|
Propeller |
1x Solid propeller - aft at 153 rpm |
|
Electric installations |
1x Plant 380/220 V - 155 kVA 1x Plant 380/220 V - 290 kVA 1x Plant 380/220 V - 290 kVA |
|
Generators |
2x Main generatorsets each 290 kVA 1x Main generatorset 155 kVA |
|
Compressed air receivers |
2x Receivers each 1.750 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Cargo capacity |
Grain: 12.344 m³ Bales: 11.322 m³ |
|
Tank capacities |
Fuel oil: 764 m³ Water ballast: 1.530 m³ |
|
Lifting equipment |
1x Derrick - SWL 1,0 t 10x Derricks - SWL 5,0 t each 1x Twinspan Derrick - SWL 80,0 t |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m |
|
Manager |
ASMC (Algerian Ship Management Co.) S.P.A. |
|
Operator |
SNTM (Société Nationale de Transports de Marchandises) |
|
Owner |
CNAN - Nord S.P.A. SNTM / CNAN (Société Nationale de Transports de Marchandises / Compagnie Nationale Algérienne de Navigation) - Group S.P.A. |
|
Scrapped |
Beached 28.04.2015 et Aliaga - Turkey |
|
Latest data adjustment |
05 May 2015 |
