| Antwerpen 04 March 2013 |
 |
 |
|
| Antwerpen 04/03/13 | Antwerpen 04/03/13 |
|
Name |

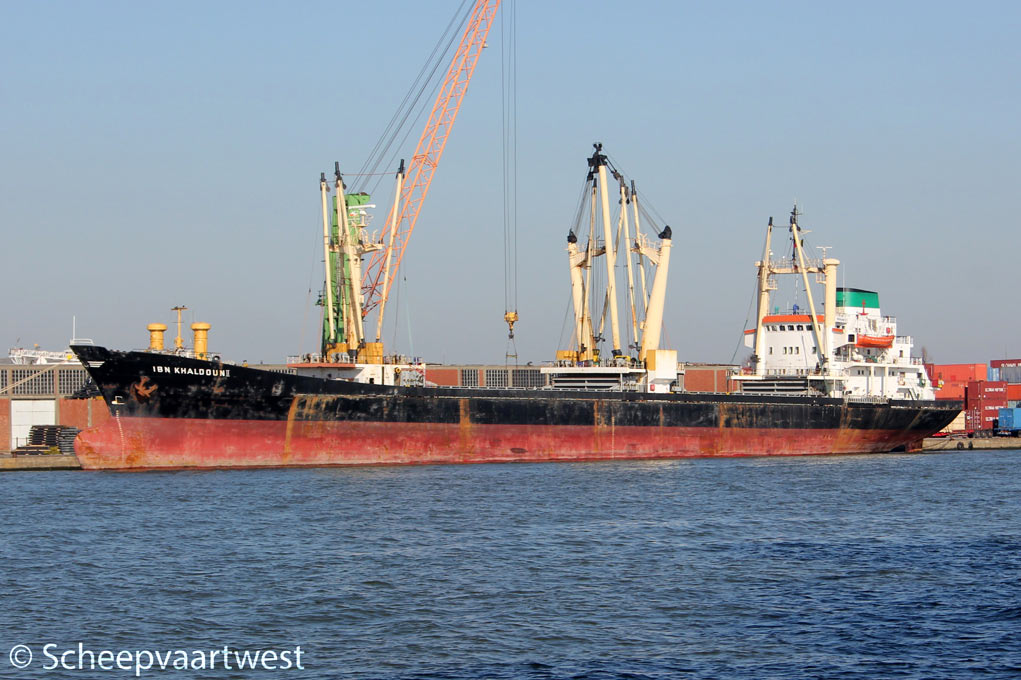

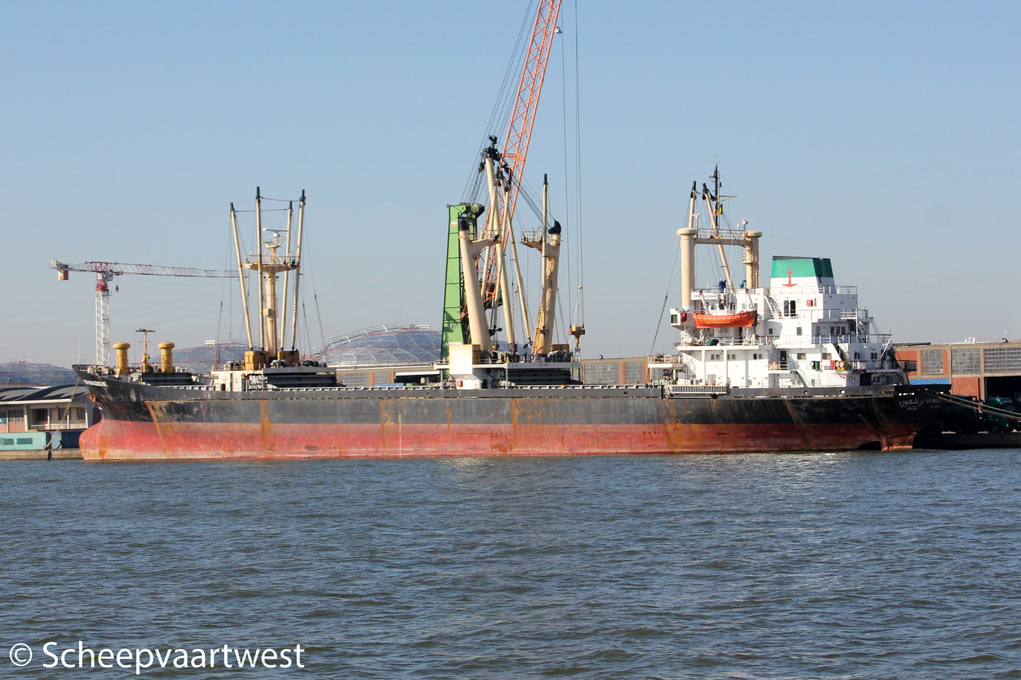

IBN KHALDOUN II |
|
Type |
General cargo ship - Equipped for carriage of containers, strengthened for heavy cargo |
|
IMO-number |
7711854 |
|
Call sign |
7THL |
|
Flag |
Algeria |
|
Port of registry |
Alger |
|
GT |
5.400 t |
|
DWT |
8.111 t |
|
NT |
3.471 t |
|
Number of 20ft containers |
254 |
|
Length |
126,60 m overall 117,70 m registered |
|
Breadth |
17,20 m registered |
|
Draught |
7,35 m |
|
Forecastle |
8,45 m |
|
Depth |
9,92 m moulded |
|
Speed |
15,0 knots |
|
Built |
1977 |
|
Keel laid |
04.1977 |
|
Launch date |
07.1977 |
|
Date of completion |
10.1977 |
|
Builder |
Schlichting-Werft GmbH |
|
Yard number |
1400 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8 Mu 551 AK - 4 stroke 8 cylinder 450 x 550 mm diesel engine - 3.678 kW / 5.000 bhp at 425 rpm Year of manufacture: 1977 Manufacturer: MaK Maschinenbau GmbH |
|
Propellers |
1x Solid propeller - aft at 153 rpm |
|
Electric installations |
1x Plant 380/ 220 V - 155 kVA 2x Plants each 380/220 V - 290 kVA |
|
Generators |
2x Main generatorsets each 290 kVA 1x Main generatorset 155 kVA |
|
Compressed air receivers |
2x Receivers each 1.750 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 2x Receivers each 20 litres - 8,0 bar |
|
Cargo capacity |
Grain: 12.290 m³ Bales: 11.553 m³ |
|
Tank capacities |
Fuel: 764 m³ Ballast water: 1.530 m³ |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m |
|
Lifting equipment |
1x Derrick - SWL 1,0 t 10x Derricks - SWL 10,0 t each 1x Twinspan derrick - SWL 80,0 t |
|
Manager |
SNTM CNAN - Compagnie Nationale Algérienne de Navigation - Group S.P.A. |
|
Owner |
CNAN - Compagnie Nationale Algérienne de Navigation) - Group S.P.A. |
|
Registered owner |
CNAN - Nord S.P.A. |
|
Scrapped |
15.05.15 Turkey |
|
Last data adjustment |
28 October 2015 |
