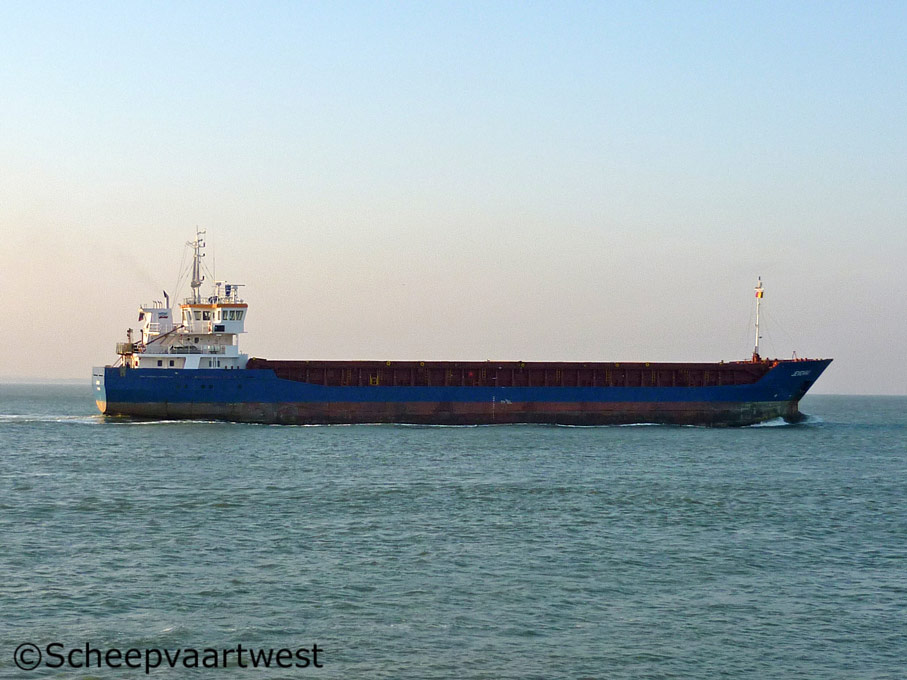

Jevenau 01
Westerschelde 01 February 2012

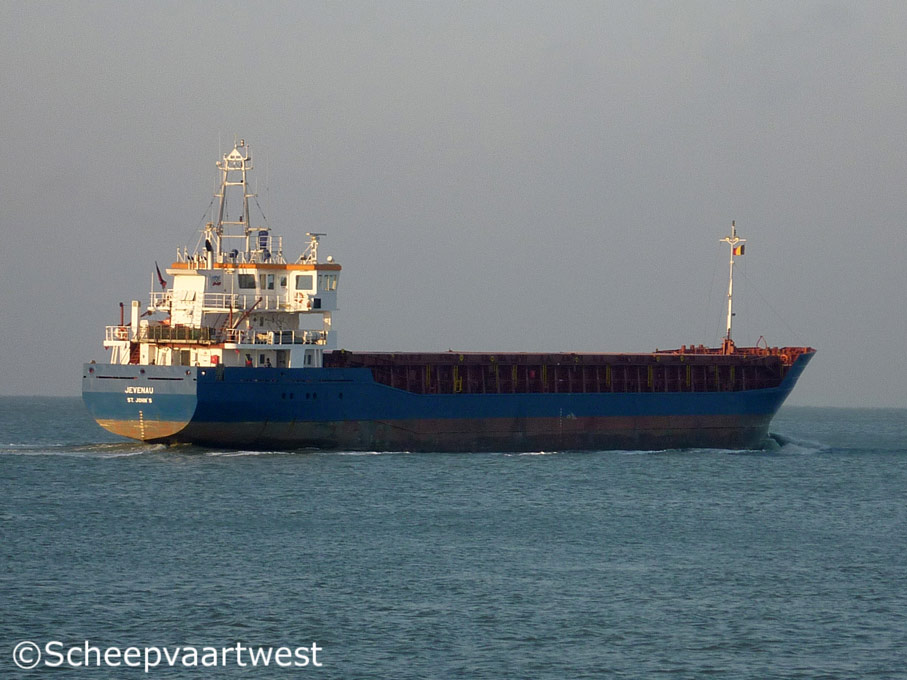

Jevenau 04
Westerschelde 01/02/12



Name

JEVENAU

Type

Multi-Purpose dry cargo ship

IMO-number

9356866

Call sign

V2CO5

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.461 t

DWT

3.701 t

NT

1.369 t

Number of 20ft containers

176

Length

87,84 m overall

82,10 m registered

Breadth

12,80 m registered

Draught

5,498 m

Forecastle

5,85 m

Freeboard

1.615 mm

Depth

7,10 m to main deck

4,55 m tweendeck

Speed

11,7 knots

Built

2007

Keel laid

21.05.1998

Launch date

22.02.2007

Date of completion

05.07.2007

Builder

Slovenske Lodenice Komarno a.s.
Rolnickej Skoly 1519
945 01 Komarno
Slovak Republic

Yard number

2965

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAK 8M20 - 4 stroke 8 cylinder 200 x 300 mm diesel engine - 1.520 kW at 1.000 rpm

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Solid propeller - aft at 226 rpm

Boilers

Water heater, oil fired - 5,0 bar

Year of manufacture: 2006

Manufacturer: A.C.V. Nederland B.V.
Kaartenmakerstraat 5
2984 CB Ridderkerk
The Netherlands

Electric installation

3x Plants each 400/230 V - 126 kVA

1x Plant 400 V - 50 kVA

Generators

3x SISU-Diesel 620 DSRG diesel engies each 110 KW with 3 generators each 126 kVA, 380/220 V, 50 Hz

Emergency generator

1x SISU-320-DSG 320 diesel generatorset 50 kW at 1.500 rpm

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 185 kW, forward

Number of holds

1

Number of hatches

1

56,55 x 10,20 m

Hatch cover type

Kvaerner

Cargo capacity

Grain: 4.613 m³

Anchor equipment

3x Anchors weight each 1.740 kg

Chain length: 440,00 m

Crew size

9

Manager

Reederei Erwin Strahlmann e.K.
Schleusenstr. 10
25541 Brunsbüttel
Federal Republic of Germany

Owner

Erwin Strahlmann MS JEVENAU
Federal Republic of Germany

Registered owner

Erwin Strahlmann
Schleusenstr. 10
25541 Brunsbüttel
Federal Republic of Germany
