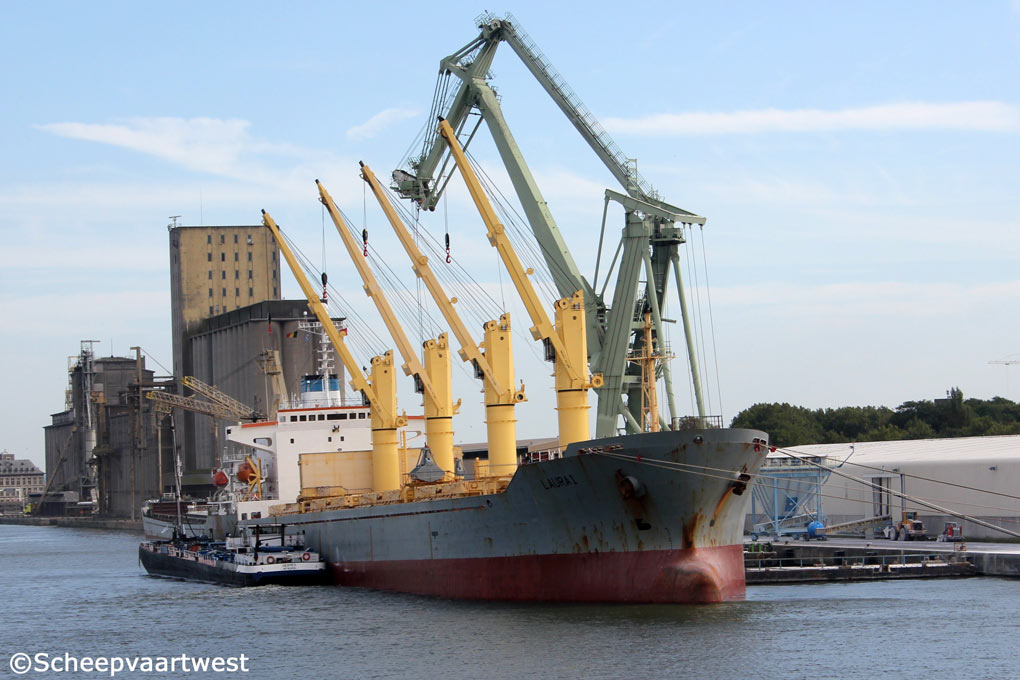

| Westerschelde 15 July 2014 |
 |
 |
 |
 |
|||

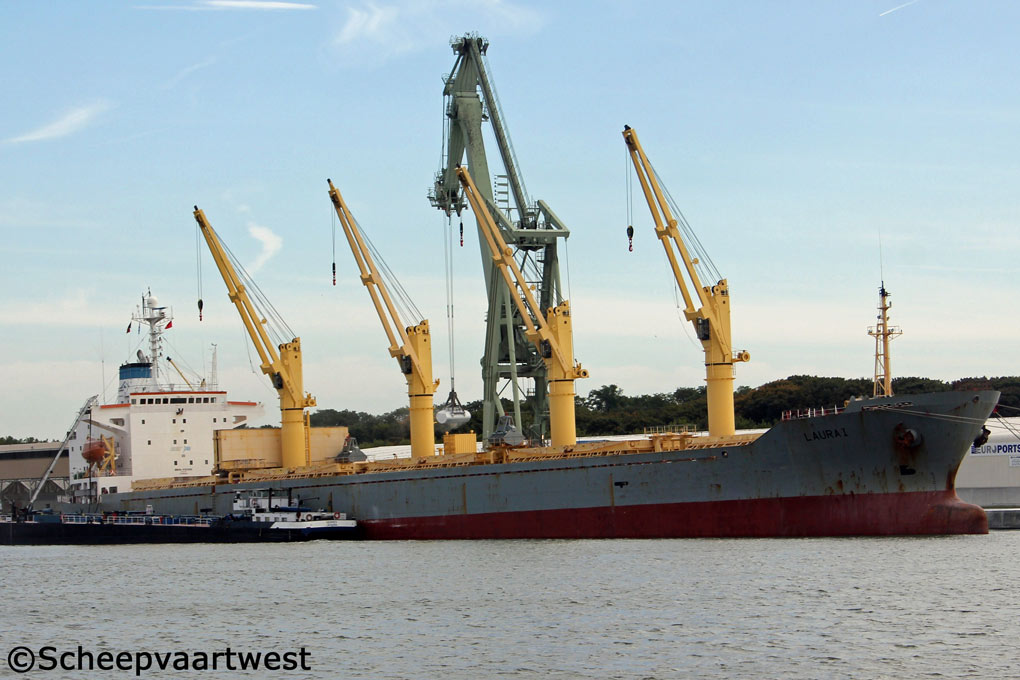

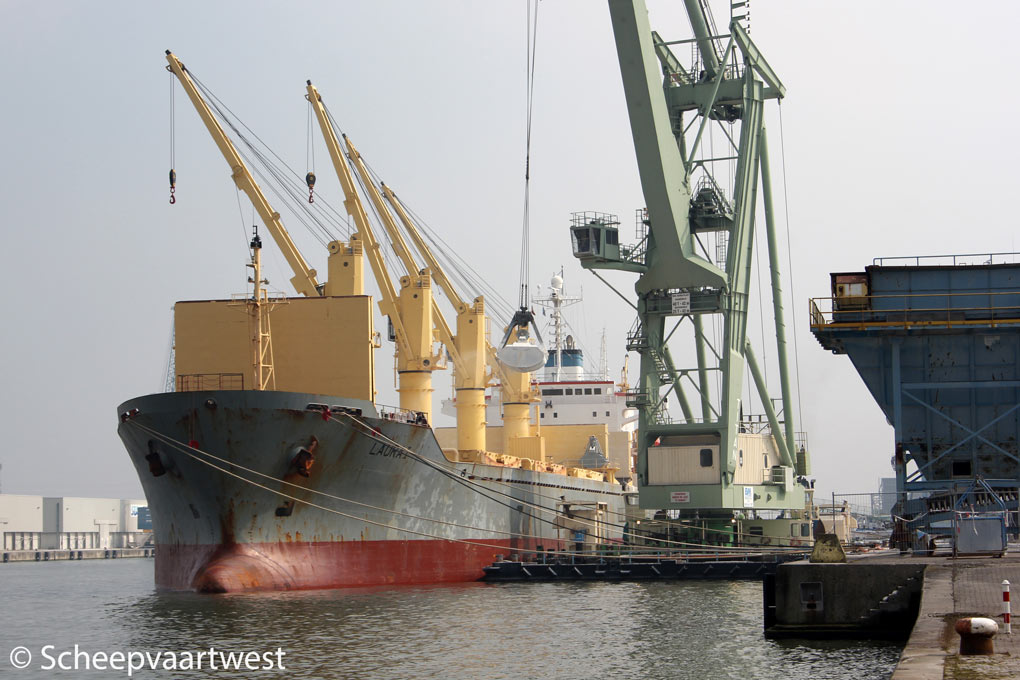

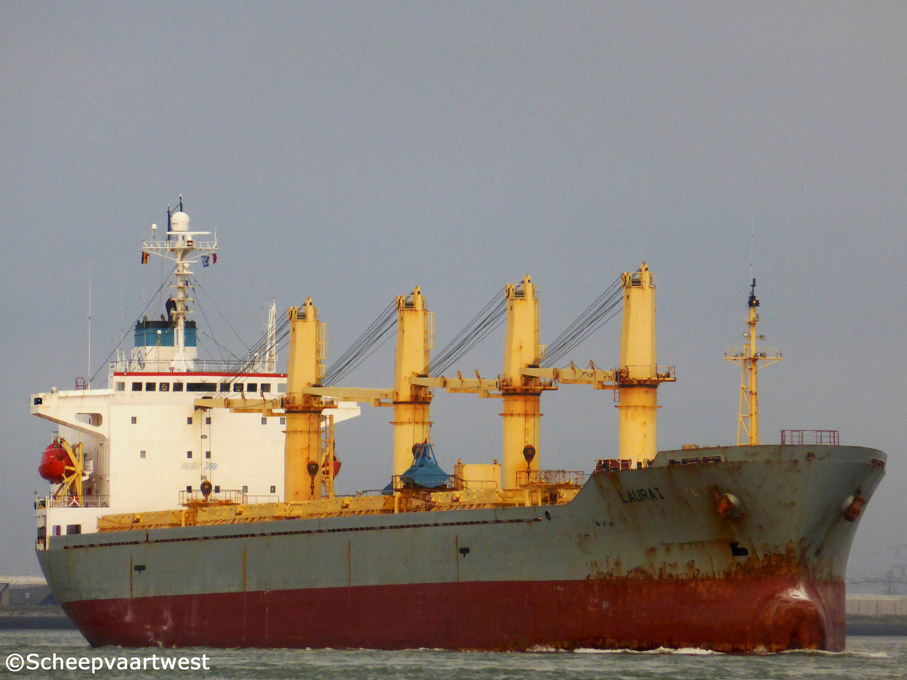

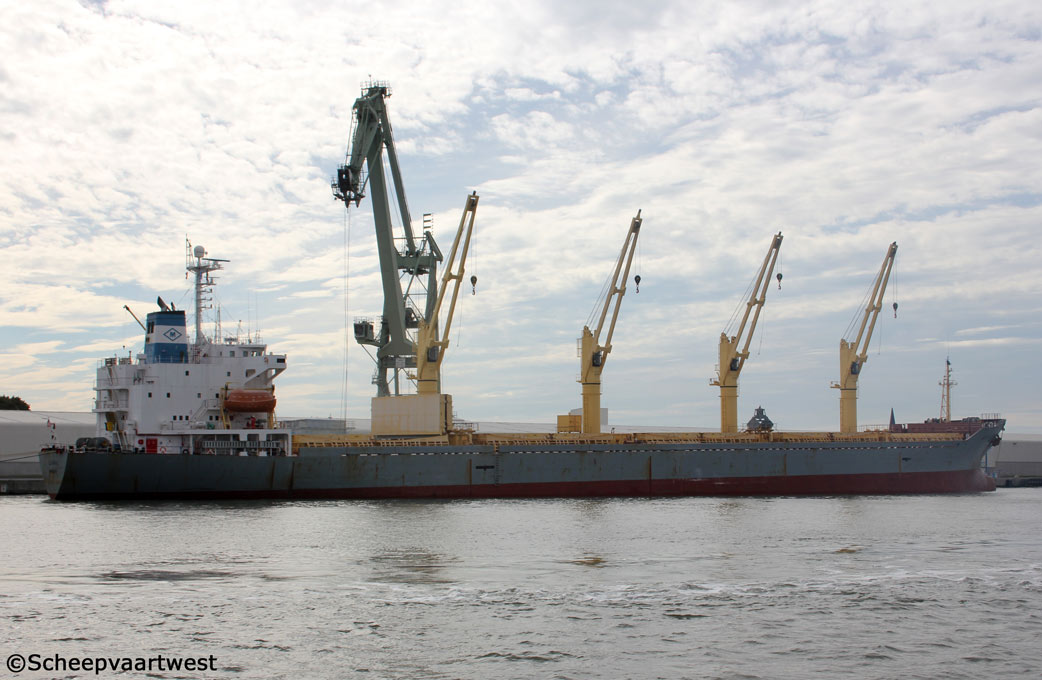

| Westerschelde 01/10/12 | Westerschelde 01/10/12 | Westerschelde 01/10/12 | Westerschelde 29/03/13 |
|
Name |
LAURA I |
|
Previous names |
1995 - 06.1997 Lucky Grace 1997 - 06.2010 Laura |
|
Type |
Bulk carrier - Single decker - Fitted with cargo tanks |
|
IMO-number |
9123960 |
|
Call sign |
A8WB6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.040 t registered |
|
DWT |
Summer: 26.818 t Winter: 24.046 t |
|
NT |
9.896 t registered |
|
Length |
176,62 m overall |
|
Breadth |
26,00 m moulded |
|
Draught |
Summer: 9,39 m Winter: 9,19 m |
|
Moulded L x B x D |
169,40 x 26,00 x 13,30 m |
|
Registered L x B x D |
169,40 x 26,00 x 13,30 m |
|
Freeboard |
Summer: 3.937 mm |
|
Depth |
13,30 m moulded |
|
Speed |
Max: 16,4 knots |
|
Built |
1995 |
|
Keel laid |
10.05.1995 |
|
Launch date |
19.07.1995 |
|
Date of completion |
28.09.1995 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding |
|
Yard number |
3402 |
|
Hull material |
Steel |
|
Main engine |
1x Akasaka-Mitsubishi 5UEC 52 LA - 2 stroke single acting 5 cylinder 520 x 1.600 mm diesel engine - 5.296 kW at 133,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propellers |
1 |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,74 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets 1.090 kVA |
|
Number of holds |
5 holds / 10 compartments - steel bulkheads between holds 1/2, 3/4, 5/6, 7/8, 9/10 No 1: 15,36 x 4,94/16,19 m No 2: 11,55 x 16,88/19,45 m No 3: 13,08 x 25,16/25,46 m No 4: 12,38 x 19,40 m No 5: 12,29 x 25,48 m No 6: 11,02 x 25,48 m No 7: 13,10 x 19,45 m No 8: 13,05 x 19,43/19,58 m No 9: 13,07 x 19,60/15,13 m No 10: 12,89 x 14,64/ 7,69 |
|
Number of hatches |
10 Hatch 1: 8,46 x 12,77 m Hatch 2: 8,30 x 12,77 m Hatch 3: 9,20 x 17,78 m Hatch 4: 9,15 x 17,78 m Hatch 5: 8,46 x 17,78 m Hatch 6: 10,00 x 17,78 m Hatch 7: 9,28 x 17,78 m Hatch 8: 9,04 x 17,78 m Hatch 9: 9,22 x 17,78 m Hatch 10: 9,22 x 17,78 m |
|
Hatch cover |
MacGregor hydraulic folding type |
|
Hold compartment capacity |
No.1: 111.802 ft³ / 3.165,90 m³ No 2: 117.240 ft³ / 3.319,90 m³ No 3: 82,184 ft³ / 2.327,20 m³ No 4: 143.539 ft³ / 4.064,60 m³ No 5: 71.296 ft³ / 2.018,90 m³ No 6: 78.179 ft³ / 2.213,80 m³ No 7: 144.390 ft³ / 4.088,70 M² No 8: 143.539 ft³ / 4.064,60 m³ No 9: 141.032 ft³ / 3.993,60 m³ No 10: 118.946 ft³ / 3.368,20 m³ Total: 1.152.147 ft³ / 32.625,40 m³ |
|
Number of tanks |
4 cargo tanks to carry liquid cargoes Tank 1: 1.458,70 m³ Tank 2: 1.550,10 m³ Tank 3 ps: 638,70 m³ Tank 4 sb: 631,40 m³ Total: 4.278,90 m³ |
|
Cargo capacity |
Grain: 32.491 m³ Bales: 37.313 m³ Liquid: 4.440 m³ |
|
Strength
|
Tanktop: holds 1, 2, 4, 7, 8, 9, 10: 15,00 t/m² Tanktop: holds 3, 5, 6: 10,00 t/m² Hatch cover: 3,00 t/m² Deck strength: 4,00 t/m² |
|
Manifolds |
Distance bow to manifold: 95,00 m |
|
Tank capacities |
Fuel oil: 1.224 m³ Fresh water: 239 m³ Water ballast: 9.207 m³ |
|
Cargo gear |
4x Electro hydraulic single deck cranes - SWL 30,0 each |
|
Manager |
MST Mineralien Schiffahrt Spedition und Transport GmbH |
|
Registered owner |
(Bareboat Charterer) Manuela Shipping Ltd. |
|
Renamed |
10.2014 Ayla - Cool Island - Call sing: E5U2885 |
|
Latest data adjustment |
19 January 2015 |
