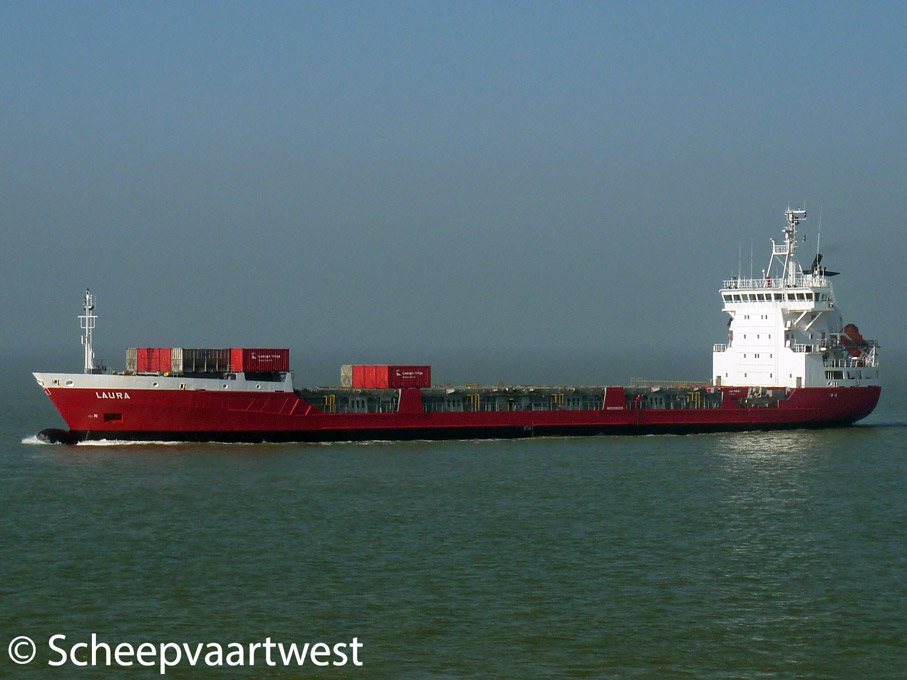

Laura IMO 9126223 02
Westerschelde 28 September 2011

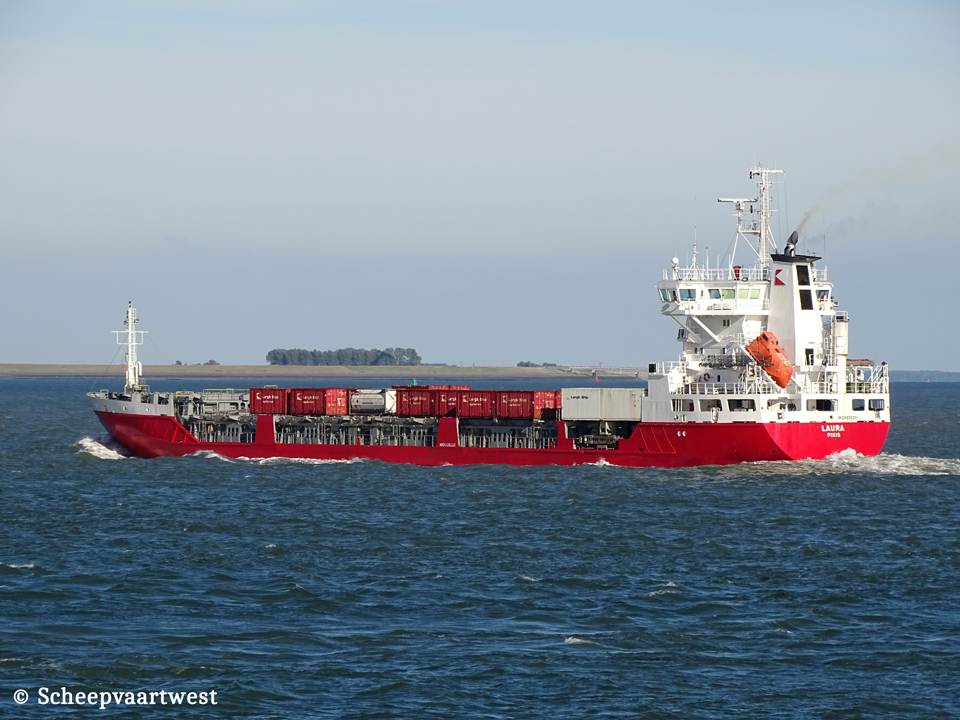

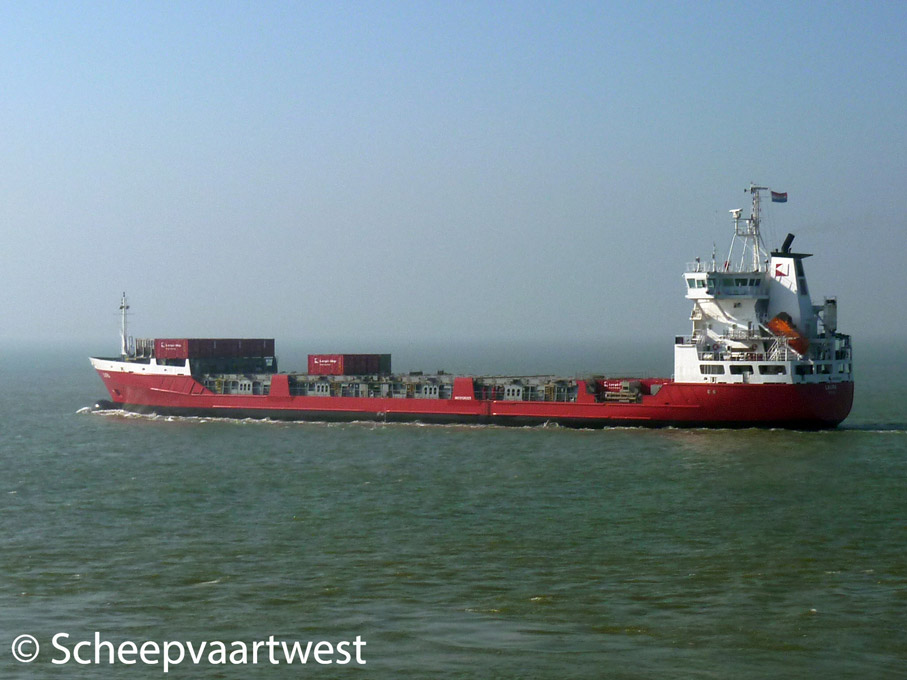

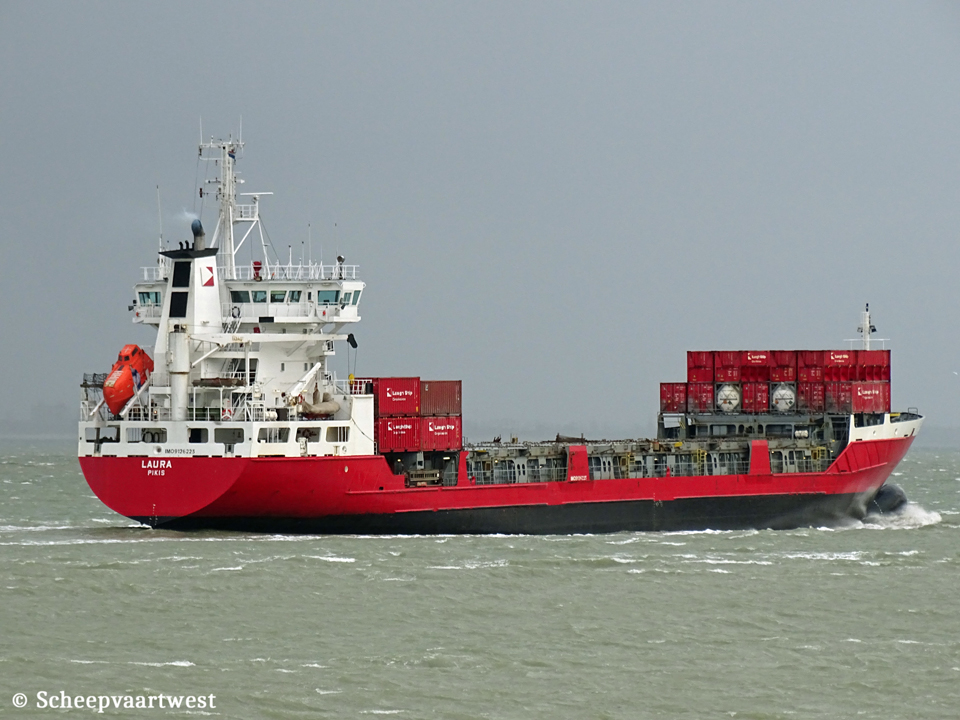

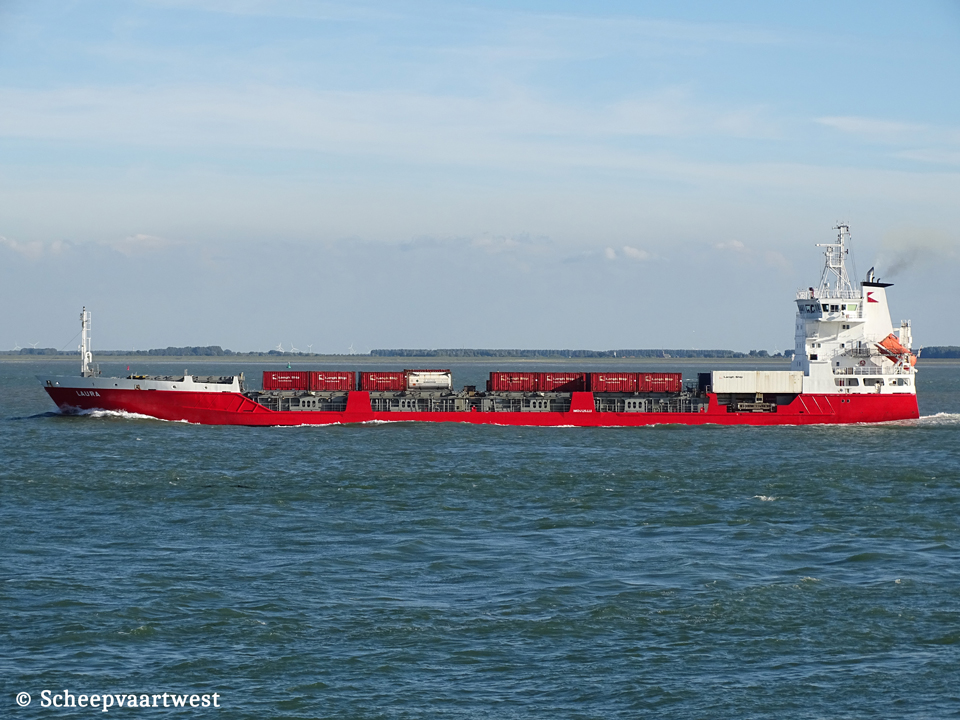

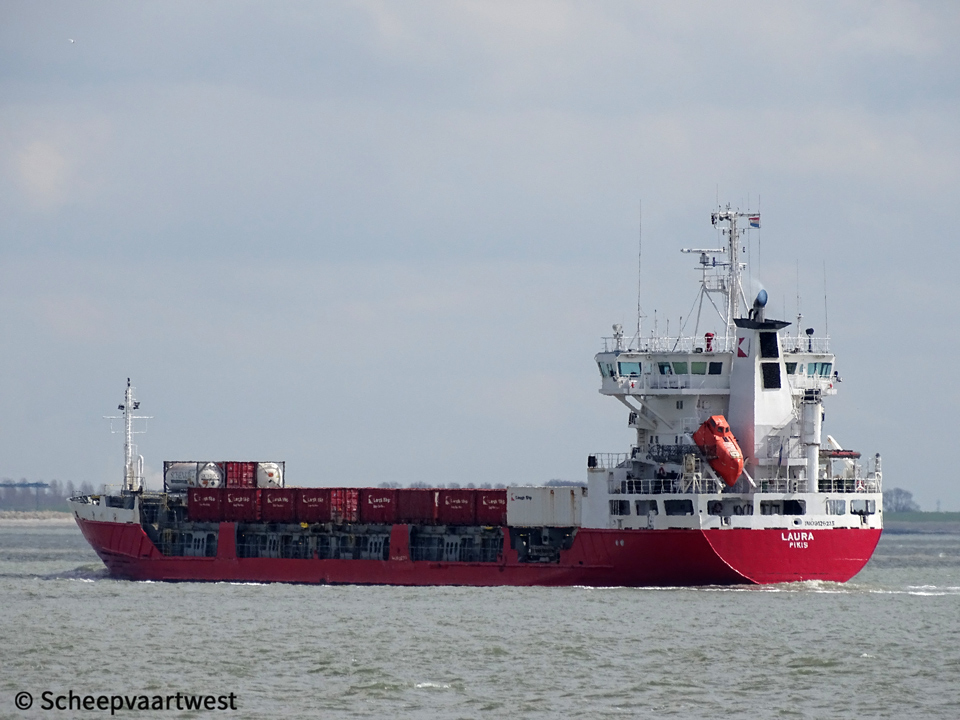

Laura IMO 9126223 07   Laura IMO 9126223 09   Laura IMO 9126223 10   Laura IMO 9126223 12   Laura IMO 9126223 13   Laura IMO 9126223 16
Westerschelde 28/09/11 Westerschelde 04/04/18   Westerschelde 02/08/20   Westerschelde 02/08/20   Westerschelde 02/08/20   Westerschelde 14/01/16

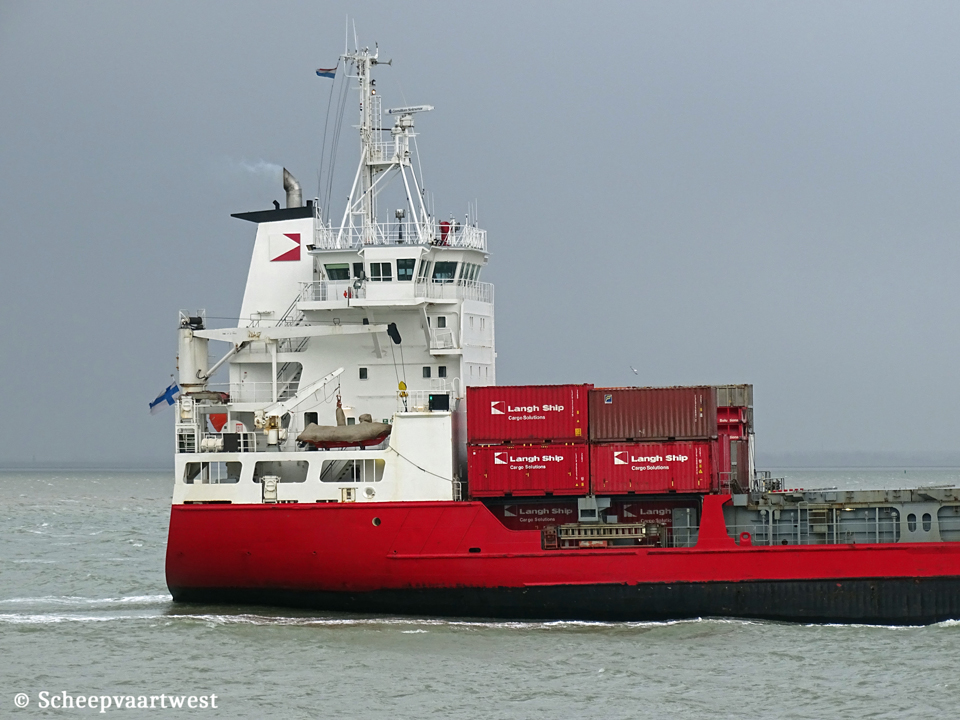

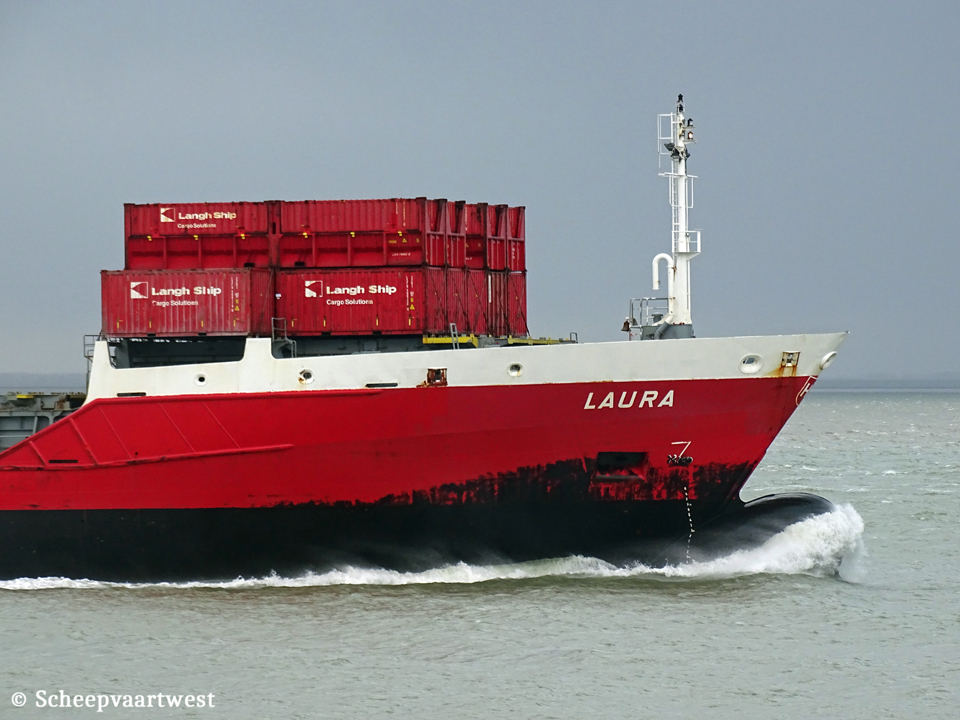

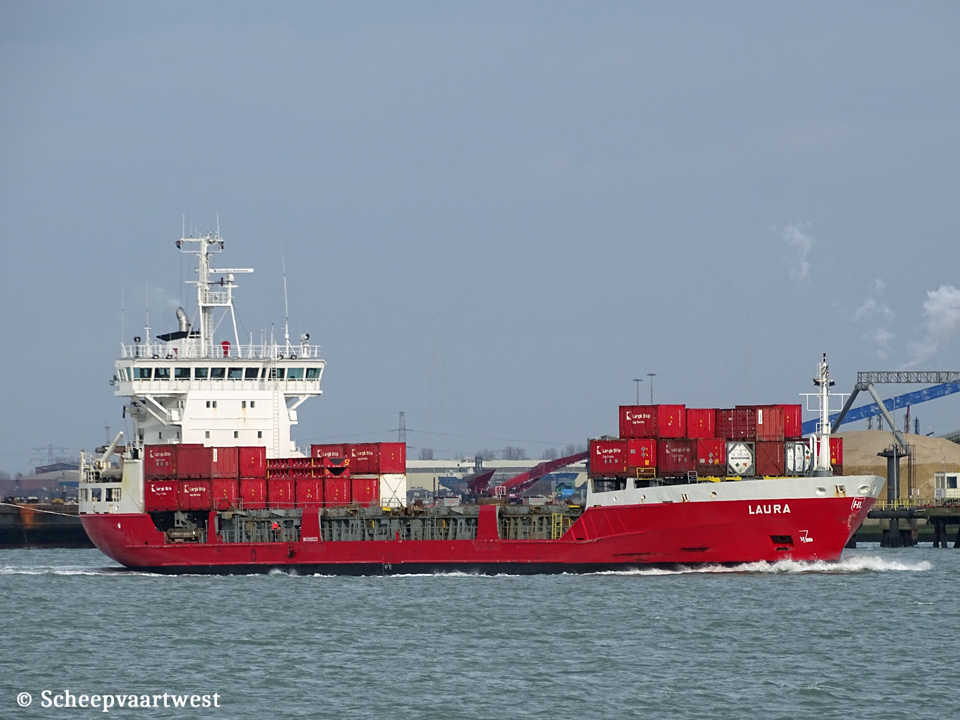

Laura IMO 9126223 15   Laura IMO 9126223 14   Laura IMO 9126223 17
Westerschelde 14/01/16   Westerschelde 14/01/16   Vlissingen 25/02/17


Name

LAURA

Type

General cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers

IMO-number

9126223

Call sign

OJHH

Flag

Finland

Port of registry

Pikis

GT

5.239 t

DWT

6.410 t

NT

2.625 t

Number of 20ft containers

On deck: 308

in hold: 158

Total: 466

Container capacity 14t

320

Reefer plug

40

Length

119,85 m overall

111,58 m registered

Breadth

18,14 m overall

17,90 m registered

Draught

6,81 m

Keel to mast end

35,41 m

Forecastle

22,31 m

Poop

12,55 m

Depth

8,80 m moulded

Speed

Service: 16,0 knots

Keel laid

07/07/1994

Launch date

24/07/1996

Date of completion

01/08/1996

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.

Neuenfelder Fährdeich 88

21129 Hamburg

Federal Republic of Germany

Yard number

1117

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

6

Continuous decks

2

Main engine

1x Wärtsilä 6L46B - 4 stroke 6 cylinder 460 x 580 mm combustion engine 5.850 kW / 7.954 hp at 500 rpm

Year of manufacture: 1996

Manufacturer: Wärtsilä Diesel Oy

Staalarminkatu 45

20810 Turku

Finland

Propellers

1x Controllable pitch propeller - aft at 157 rpm

Electric installations

2x Plants each 380/220 V - 430 kVA

1x Plant 380 V - 1.000 kVA

1x Plant 380 V - 75 kVA

Shaft generator

1x 1.000 kVA

Generators

2x Main diesel generatorsets each 430 kVA

Emergency generator

1x Diesel generatorset 75 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Fixed pitch propeller KAMEWA - 550 kW, forward

Number of holds

3x Box shaped

Hydraulic operated tween decks in holds 2 and 3

Number of hatches

3x Steel floored

Hatch 1: 12,66 x 10,40 m

Hatch 2 & 3: 26,80 x 15,52 m

Deck hatch covers are hydraulic folding type

Each folding pair is designed for 40' container compartments in accordance with the cargo hold stowage arrangement

Max permitted loads

Tanktop: 15,0 t/m²

Tween deck: 4,0 t/m²

Weather deck hatch cover: 1,75 t/m²

Timber on weather deck hatch cover: 2,0 t/m²

Cargo capacity

Grain: 8.251 m³ / 291.380 ft³

Bales: 7.796 m³ / 275.315 ft³

Cargo ventilation

Separate air drying plant for each hold

Hold 1: 6 air changes/hour

Hold 2&3: 2 air changes/hour

Tank capacities

Water ballast: 2.486 m³

Fresh water: 86 m³

Fuel oil: 460 m³

Gas oil: 164 m³

Anchor equipment

3x Anchors weight each 3.300 kg

Chain length: 501,00 m

Diameter: 46 mm

Crew size

16

ISM & commercial manager

Oy Langh Ship Ab

Alaskartano, Vanhamakarlantie 29

21500 Piikkiö

Finland

Registered owner

Oy Langh Ship Ab

Alaskartano, Vanhamakarlantie 29

21500 Piikkiö

Finland

Latest data adjustment

08 January 2023
