| Westerschelde 26 October 2011 |
|
Name |

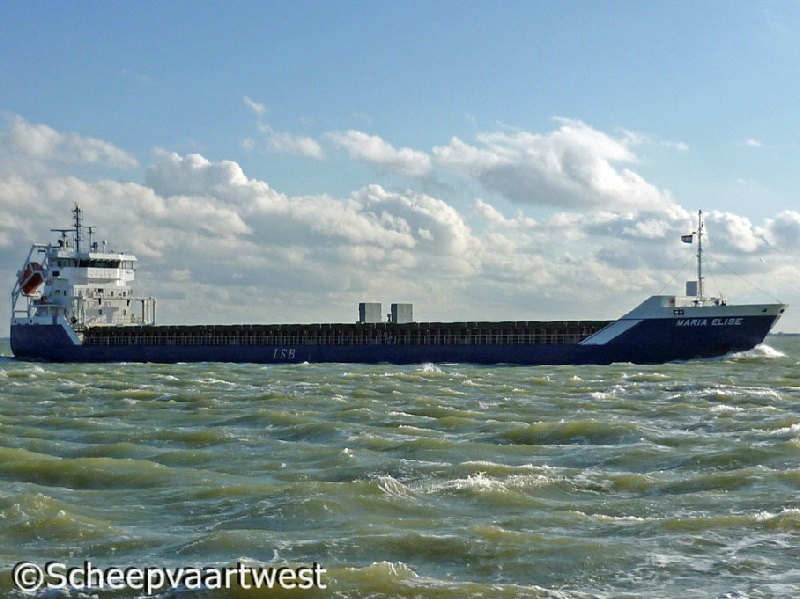

MARIA ELISE |
|
Type |
General cargo ship - Heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9534250 |
|
Call sign |
D5HS8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
4.255 t |
|
DWT |
6.050 t |
|
NT |
2.341 t |
|
Number of 20ft containers |
256 |
|
Containers capacity 14 t |
166 |
|
Length |
114,40 m overall 108,30 m between perpendiculars |
|
Breadth |
14,40 m |
|
Draught |
6,04 m |
|
Freeboard |
8.112 mm |
|
Depth |
8,10 m |
|
Speed |
13,0 knots |
|
Built |
2009 |
|
Date of completion |
14.10.2009 |
|
Builder |
Jiangsu Yangzi Changbo Shipbuilding Co.,Ltd. |
|
Yard number |
CBSY06-005 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
4 |
|
Main engine |
1x MAK 9M25C - 4 stroke 9 cylinder 255 x 400 mm diesel engine - 2.970 kW / 4.035 hp at 750 rpm Built: 29.08.2008 Builder: Caterpillar Motoren Guangdong Co.Ltd., Foshan City - P.R. China |
|
Electrical propulsion gen. |
1x 424kW - 380 Volt |
|
Propelling system |
1x Screw propeller controllable pitch at 194 rpm |
|
Boilers |
1x CHO Heatmaster 8,80 m² - 4,00 bar |
|
Diesel generators |
2x Diesel generatorsets each 235 kVA - 188 kW - 340 hp |
|
Bow thruster |
1x Diesel generatorset 350 kW |
|
Number of holds |
2 |
|
Total capacity of holds |
8.501 m³ |
|
Fuel capacity |
2.95,1 m³ |
|
Manager |
HS Bereederung GmbH & Co. KG |
|
Owner |
HS Schiffahrts GmbH & Co. KG |
