Antwerpen 30 January 2018 |
Name |

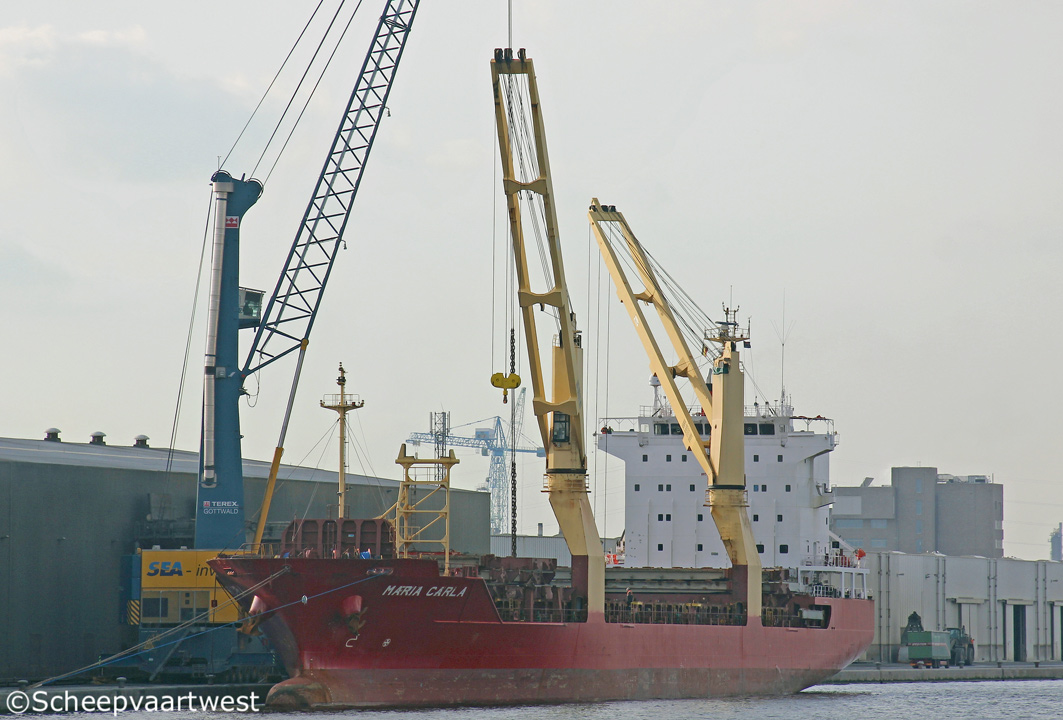

MARIA CARLA |
Previous names |
09/2005 - 12/2005 SCL Leman 12/2005 - 12/2010 Safmarine Leman 12/2010 - 07/2011 SCL Leman 07/2011 - 07/2012 Nirint Neerlandia 07/2012 - 12/2015 Neerlandia 12/2015 - 09/2017 SCL Leman |
Type |
Multi-purpose dry cargo ship - Containers in holds and on hatches - Strengthened for heavy cargo |
IMO-number |
9314375 |
Call sign |
8PAN4 |
Flag |
Barbados |
Port of registry |
2005 - 2017 Switzerland, Basel - Call sign: HBEJ |
GT |
9.900 t |
DWT |
Summer: 12.576 t |
NT |
4.483 t |
Ligthship |
5.678 t |
Number of 20ft containers |
766 On deck: 460 |
Container capacity 14t |
536 |
Reefer capacity |
120 |
Length |
139,99 m overall 133,50 m between perpendiculars |
Breadth |
21,54 m extreme |
Draught |
8,42 m |
Depth |
11,65 m |
Speed |
Service: 12,0 knots Max: 17,0 knots |
Built |
2005 |
Keel laid |
01/07/2005 |
Launch date |
25/09/2005 |
Delivery date |
20/12/2005 |
Builder |
Kyokuyo Shipbuilding & Iron Works Co., Ltd. |
Yard number |
458 |
Hull material |
Steel |
Main engine |
1x Hitachi/B&W 8S42MC - 2 stroke 8 cylinder diesel engine 8.200 kW / 11.160 hp at 136 rpm Manufacturer: Hitachi Zosen Corp.-Burmeister & Wain, Innoshima - Japan |
Propellers |
1x Fixed blade propeller (five blades) |
Generators |
3x Main diesel generatorsets each 850 kW |
Bow thruster |
1x Controllable pitch propeller 500 kW / 680 hp |
Number of holds |
3x Box shaped type; partly of slant construction in hold 1 forw. and 3 aft for bulk cargo Hlod 1: 26,60 x 6,80/17,90 m Hold 2: 51,80 x 17,90 m Hold 3: 13,30 x 17,90 m |
Cargo hold capacity |
17.010 m³ |
Tween deck |
Hold 2 fitted with a removable tween deck |
Max permitted loads |
Tank top: 18,0 t/m² Tween deck: 3,5 t/m² Hatch cover: 3,5 t/m² |
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
Cargo gear |
2x Electro-Hydraulic deck cranes - SWL 80 t each In combination: 160 t |
Crew |
18 |
Operator |
Maria Carla Marine Corp. Barbados |
Latest data adjustment |
16 February 2018 |
