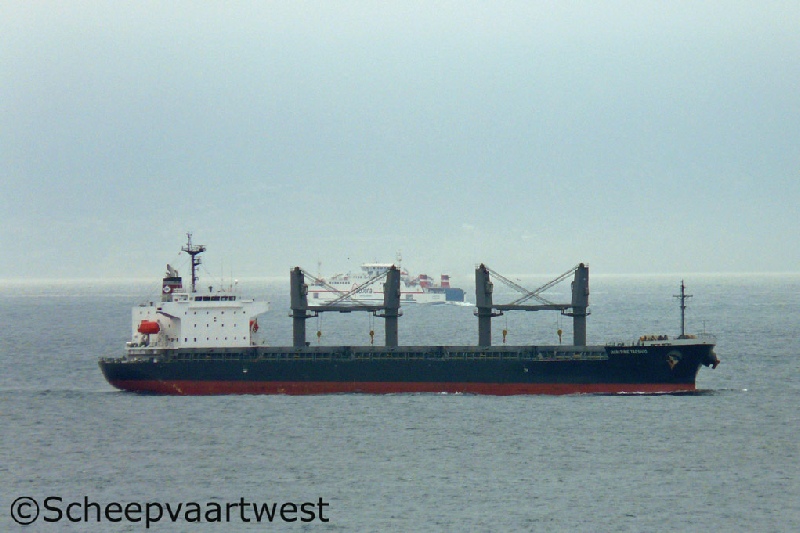

Maritime Taeshio 01
Gibraltar 21 September 2011



Name

MARITIME TAESHIO

Type

General cargo ship

IMO-number

9491575

Call sign

3FRX3

Flag

Republic of Panama

Port of registry

Panama City

GT

21.483 t

DWT

33.166 t

NT

10.828 t

Length

177,00 m overall

Breadth

29,00 m

Draught

10,034 m

Moulded L x B x D

170,00 x 28,60 x 14,35 m

Registered L x B x D

170,25 x 28,60 x 14,35 m

Freeboard

Summer: 4.392 mm

Depth

14,35 m moulded

Built

2011

Keel laid

19.02.2010

Launch date

20.11.2010

Date of completion

25.02.2011

Builder

Kanda Shipbuilding Co., Ltd.
Kure
Japan

Yard number

510

Hull type

Double hull construction applied to all cargo holds

Main engine

1x 2 stroke single acting 6 cylinder 450 x 1.840 mm diesel engine - 6.550 kW at 114,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Number of screws

1

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 1,91 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Generators

3x Main diesel generatorsets each 1.200 kVA

Cargo capacity

Bales: 41.207 m³

Grain: 42.630 m³

Tank capacities

Fuel oil: 1.519 m³

Fresh water: 578 m³

Water ballast: 14.552 m³

Lifting equipment

1x Crane - SWL 2,5 t

4x Cranes - SWL 30,5 t each

Manager

DAE AH Shipping Co., Ltd.

Registered owner

Moon Rise Shipping Co., S.A.
