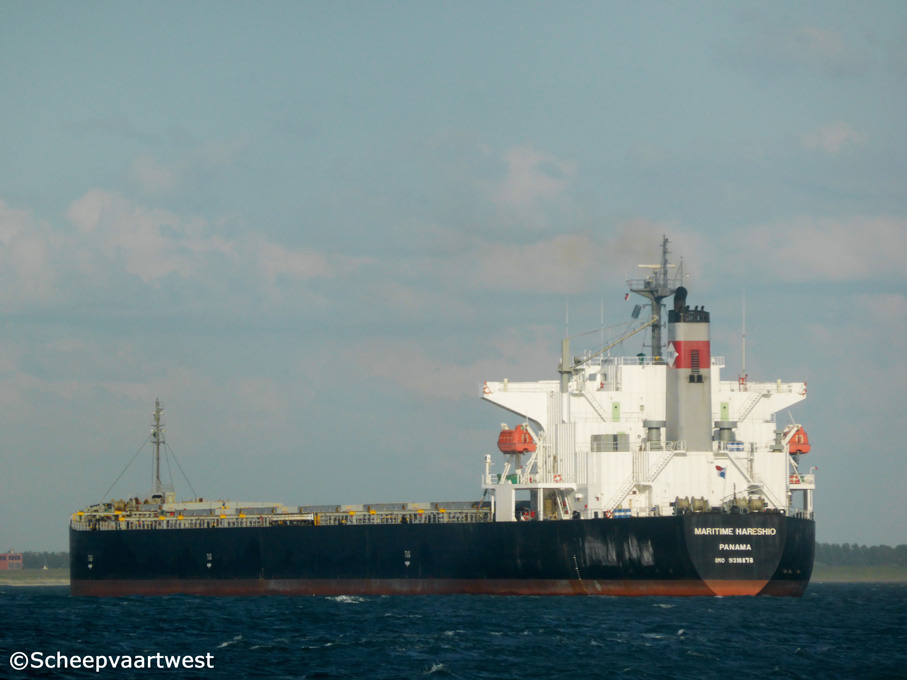

Maritime Hareshio 01

Westerschelde 05 June 2014



Name

MARITIME HARESHIO

Type

Bulk carrier

IMO-number

9316878

Call sign

3EHN8

Flag

Republic of Panama

Port of registry

Panama City

GT

38.888 t

DWT

Summer: 75.740 t

NT

25.194 t

Length

225,00 m overall

Breadth

32,26 m moulded

Draught

Summer: 13,99 m

Moulded L x B x D

217,00 x 32,26 x 19,30 m

Registered L x B x D

217,68 x 32,26 x 19,30 m

Freeboard

5.349 mm

Depth

19,30 m moulded

Speed

Max.: 16,2 knots

Service: 14,5 knots

Built

2006

Keel laid

30.12.2004

Launch date

12.10.2006

Date of completion

28.11.2006

Builder

Sanoyas Hishino Meisho Corporation
Kurashiki
Japan

Yard number

1248

Hull material

Steel

Main engine

1x MAN-B&W/Mitsui 7S50MC-C - 2 stroke single acting 7 cylinder 500 x 2.000 mm diesel engine - 8.973 kW at 104,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 500 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,50 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators - 1.600 kVA

Number of holds

9

Hold capacity

Grain: 89.201 m³

Tank capacities

Fuel oil: 2.947 m²

Fresh water: 296 m³

Water ballast: 20.507 m³

Anchor equipment

1x Deck crane - SWL 4,0 t

1x Deck crane - SWL 3,0 t

1x Deck crane - SWL 0,5 t

Manager

MSI Shipmanagement Qingdao Co., Ltd.
Room 1004, the 6th of China Overseas Building
No.76 Yan Ji Road, Shibei District
Qingdao
Shandong
China

Owner

Nagashiki Shipping
Kasaoka
Japan

Registered owner

Hareshio Navigation Co. Inc.

Latest data adjustment

22 February 2015
