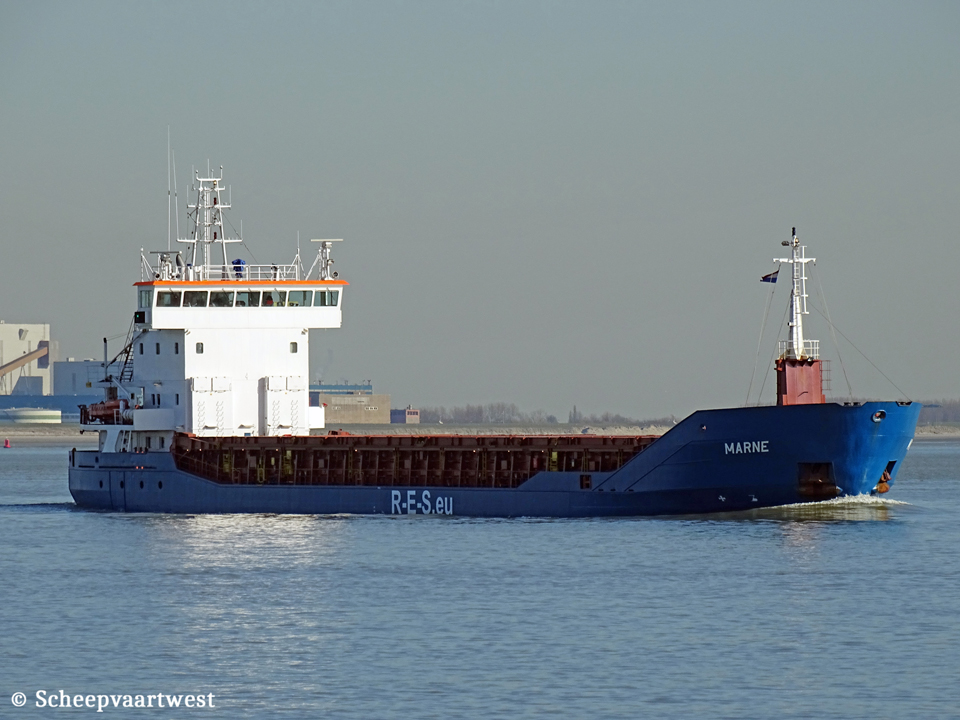

Marne IMO 9197442 07
Westerschelde 16 February 2016

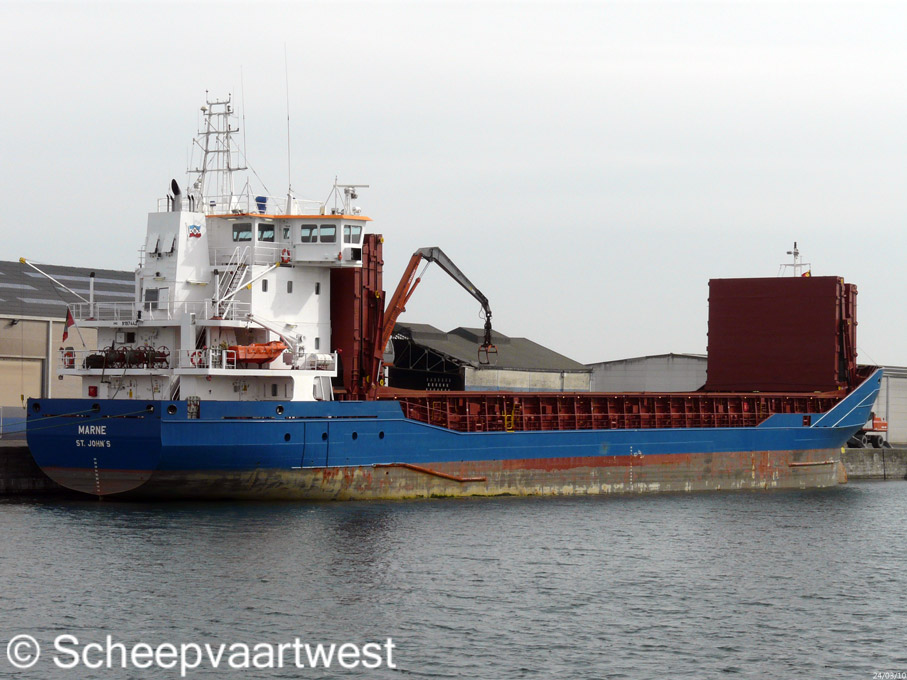

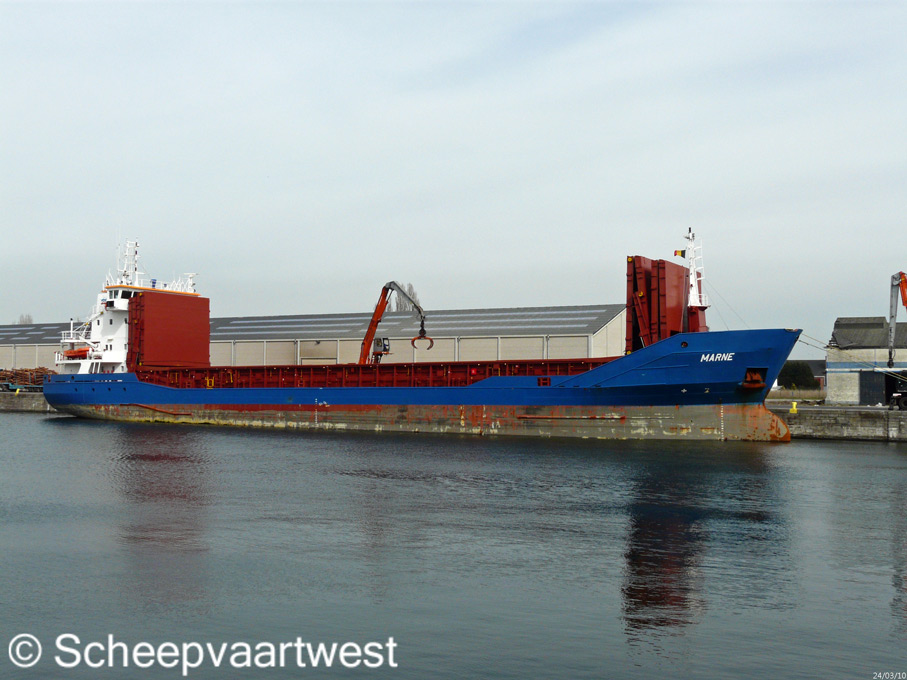

Marne 02   Marne 06
Brugge 24/03/10   Brugge 24/03/10


Name

MARNE

Type

Multi-Purpose dry cargo ship - Mini bulk carrier

Strengthened for heavy cargo

IMO-number

9197442

Call sign

V2OV1

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.530 t registered

DWT

3.539 t

NT

1.372 t registered

Number of 20ft containers

167

Length

86,57 m overall

81,07 m registered

Breadth

12,80 m

Draught

5,55 m

Forecastle

6,70 m

Depth

7,10 m to main deck

4,55 m to tween deck

Speed

12,3 knots

Built

2005

Keel laid

02/06/1998

Launch date

10/01/2005

Date of completion

11/04/2005

Builder

Slovenske Lodenice Komarno A.S.

Sasinkova 12

81108 Bratislava

Slovak Republic

Yard number

1905

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Movable bulkheads

2x Movable bulkheads, various positions

Continuous decks

1

Main engine

1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.067 hp at 1.000 rpm

Year of manufacture: 2004

Manufacturer: Caterpillar Motoren GmbH & Co. KG

Falckensteiner Str. 2

24159 Kiel

Federal Republic of Germany

Propeller

1x Fixed pitch propeller - aft at 226 rpm

Boilers

1x Water heater, oil fired - 5,0 bar

Heating surface: 5,0 m²

Year of manufacture: 2004

Manufacturer: ACV Nederland B.V.

Kaartenmakerstraat 5

2984 CB Ridderkerk

The Netherlands

Electric installations

1x Plant 400/230 V - 390 kVA

1x Plant 400 V - 49 kVA

1x Plant 24 V - 140 Ah

1x Plant 24 V - 155 Ah

1x Plant 24 V - 155 Ah

1x Plant 24 V - 170 Ah

Generators

3x MAN D2866 E diesel engines each 115 kW at 1.500 rpm connected with 3 generators each 130 kVA, 380/220 Volt, 50 Hz

Emergency generator

1x Deutz KHD F6L912 diesel engine 39 kW at 1.500 rpm connected with generator 49 kVA, 380/220 Volt, 50 Hz

Batteries

1x Battery for emergency lighting - 155 Ah

Compressed air receivers

2x Receivers each125 litres - 30,0 bar

1x Receiver10 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 185 kW, forward

Cargo hold capacity

Grain: 4.677 m³

Bales: 4.620 m³

Number of holds

1x Box

56,55 x 10,20 x 8,10 m

Number of hatches

1

56,55 x 10,20 m

Hatch type

Kvaerner folding type

Tank capacities

Ballast: 1.533 m³

Anchor equipment

3x Anchors weight each 1.920 kg

Chain length: 440,00 m

Diameter: 34 mm

Crew

7

Manager

Reederei Erwin Strahlmann E.K.

Allee 12-14

25709 Marne

Federal Republic of German

Owner

Erwin Strahlmann

Allee 14

25709 Marne

Federal Republic of German

Renamed

2021 Petra

Portugal, Madeira - Call sign: CQET7

Owner: Petra Schiffahrts UG (haftungsbeschränkt) & Co., KG

Manager: Wessels Reederei Gmbh & Co KG

Latest data adjustment

23 September 2021
