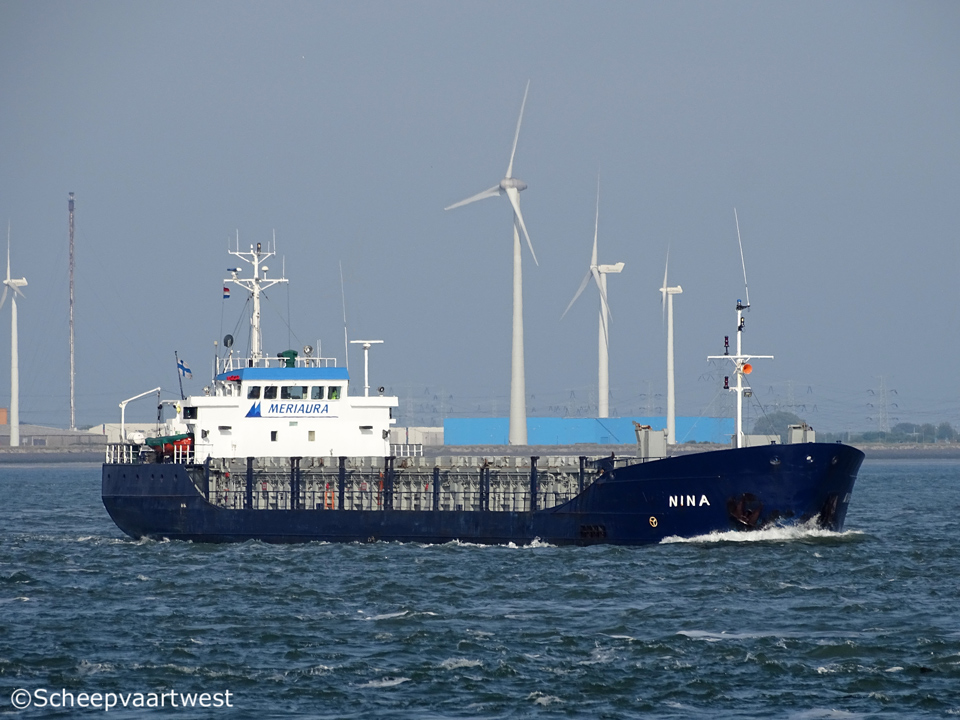

Nina 05
Westerschelde 24 May 2017

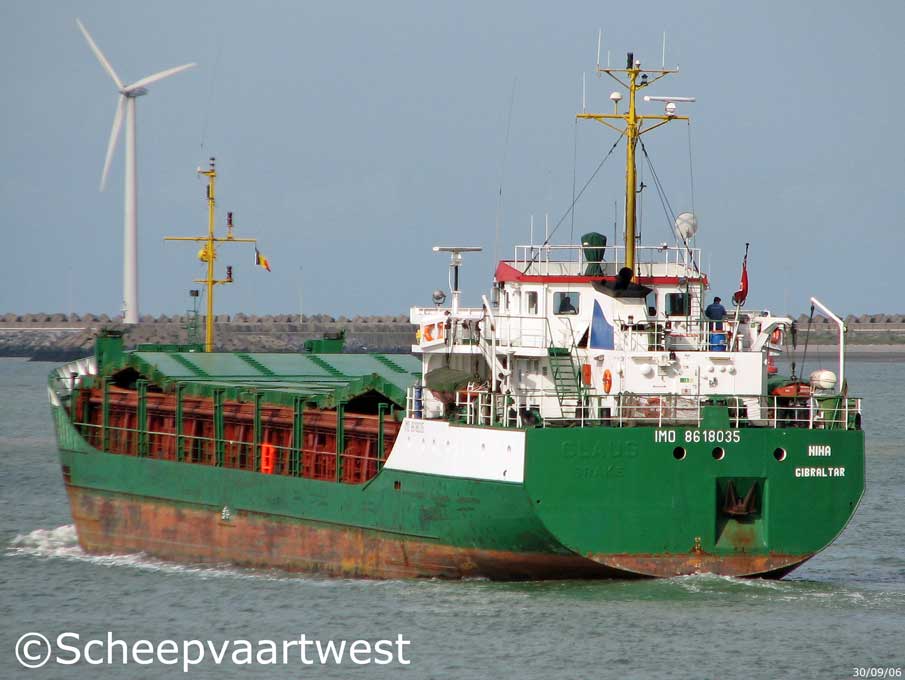

Nina
Zeebrugge 30/09/06



Name

NINA

Previous names

1987 - 20.12.2002 Claus - Germany

20.12.2002 - Ursula G

Type

General Cargo Ship - Strengthened for heavy cargo, Equipped for carriage of containers

IMO-number

8618035

Call sign

ZDFO5

Flag

Gibraltar

Previous flags

11.05.1995 Germany

11.05.1995 - 2002 Tuvalu

Port of registration

Gibraltar

GT

2.006 t

DWT

Summer: 2.706 t

NT

1.096 t

Length

81,86 m overall

78,45 m between perpendiculars

78,42 m registered

Breadth

12,63 m overall

Number of 20ft containers

128

Draught

Summer: 4,52 m

Forecastle

9,00 m

Poop

12,62 m

Freeboard

1.255 mm

Depth

6,00 m moulded

Speed

11,00 knots ballast

Built

1987

Launch date

11.04.1987

Date of completed

07.05.1987

Builder

Heinrich Brand Schiffswerft GMBH & Co. KG
Oldenburg
Germany

Yard number

228

Hull material

Steel

Hull type

Single hull

Watertight compartments

6

Continuous decks

1

Main engine

1x Deutz KHD type SBV 6 M 628 - 6 cylinder 240 x 280 mm diesel engine, four stroke single acting - 1.185 kW / 1.610 hp at 1.000 rpm

Built: 1987

Builder: Klockner-Humboldt-Deutz AG, Köln - Germany

Elec. propulsion generator

1x 94 kW - 400 V

Number of screws

1x Screw propeller solid at 260 rpm

Electrical installation

Power voltage: 400 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Diesel generatorsets each 187 kVA - 150 kW - 251 hp

Emergency generator

1x Diesel generatorset 49 kVA - 39 kW - 64 hp

Bow thruster

162 kW

Number of holds

1x Box shaped hold 51,34 x 10,15 x 6,975 m

2x Movable steel bulkheads

Hold capacity

Grain: 3.397,40 m³
Bale: 3.692 m³

Number of hatches

1

51,34 x 10,15 m

Max. load hatch covers 1,35 t/m²

Timber intake

3.500 m³
Container intake 128 Teu (92 + 32)

Tank top strength

12,5 t/m²

Bunker capacity

137 t

Manager

Meriaura Turku

Linja 3
20100 Turku
Finland

Owner

Vallis Mare Ltd / Meriaura Ltd.
Gibraltar

Renamed

10.2017 Rinaland

Latvia, Riga - Call sign: YLOK

Owner: Rinaland Shipping Company Ltd.

Latest data adjustment

12 November 2017
