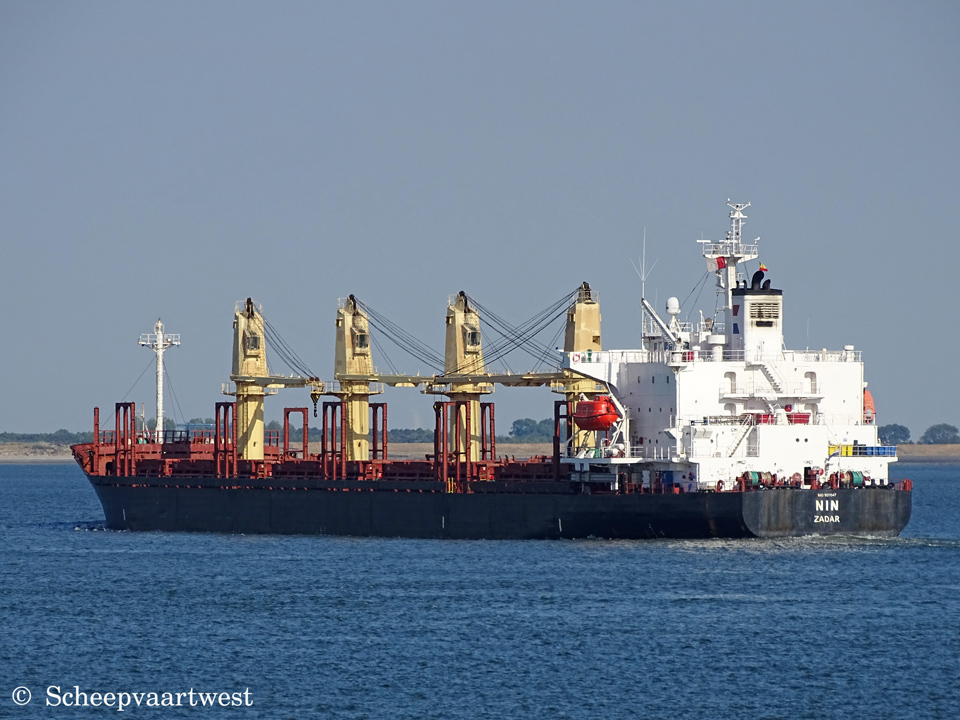

Westerschelde 06 August 2018 |
|
Name |
NIN |
|
Previous names |
Tonghaibaida |
|
Type |
Bulk carrier |
|
IMO-number |
9211547 |
|
Flag |
Croatia (Republika Hrvatska) |
|
Port of registry |
Zadar |
|
Previous flags |
2000 - 2016 Malta, Valletta - Call sign: 9HSW6 |
|
GT |
17.928 t |
|
DWT |
Summer: 28.373 t |
|
NT |
9.871 t |
|
Length |
172,00 m overall 165,00 m between perpendiculars |
|
Breadth |
27,00 m |
|
Draught |
Max: 9,55 m |
|
Freeboard |
4.085 mm |
|
Depth |
13,60 m |
|
Speed |
Max: 14,0 knots |
|
Built |
2000 |
|
Date of completion |
27/07/2000 |
|
Builder |
Tsuneishi Heavy Industries (Cebu), Inc. Balamban |
|
Yard number |
SC-016 |
|
Hull material |
Steel |
|
Watertight compartment |
8 |
|
Continuous decks |
1 |
|
Main engine |
1xMAN-B&W-Mitsui 5S50ME-B - 2 stroke 5 cylinder 500 x 1.910 mm combustion engine 5.392 kW / 7.326 hp at 104,0 rpm Built: 1999 Builder: Mitsui Engineering & Shipbuilding Co. Ltd., Tamano (Okayama) - Japan |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHM Osaka 169,00 m² - 7,0 bar |
|
Electric installations |
Power Voltage: 440 V Lighting Voltage: 220 V Frequency: 60 Hz |
|
Generators |
2x Main diesel generatorsets each 500 kVA - 400 kW - 611 hp |
|
Emergency generator |
1x Diesel generatorset 100 kVA - 80 kW - 122 hp |
|
Number of holds |
5 1x 12,90 x 16,00 m 4x 19,70 x 17,60 m |
|
Total capacity of holds |
38.472 m³ |
|
Number of hatches |
5 |
|
Hatch type |
McGregor folding |
|
Tank capacities |
Fuel: 1.515,2 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Manager |
Tankerska Plovidba d.d. |
|
Registered owner |
Punta Maritime Ltd. |
|
Renamed |
2018 Amira Eman Niue, Alogi - Call sign: E6QV2 Owner: Elamira Greece Co. |
|
Latest data adjustment |
02 January 2019 |
