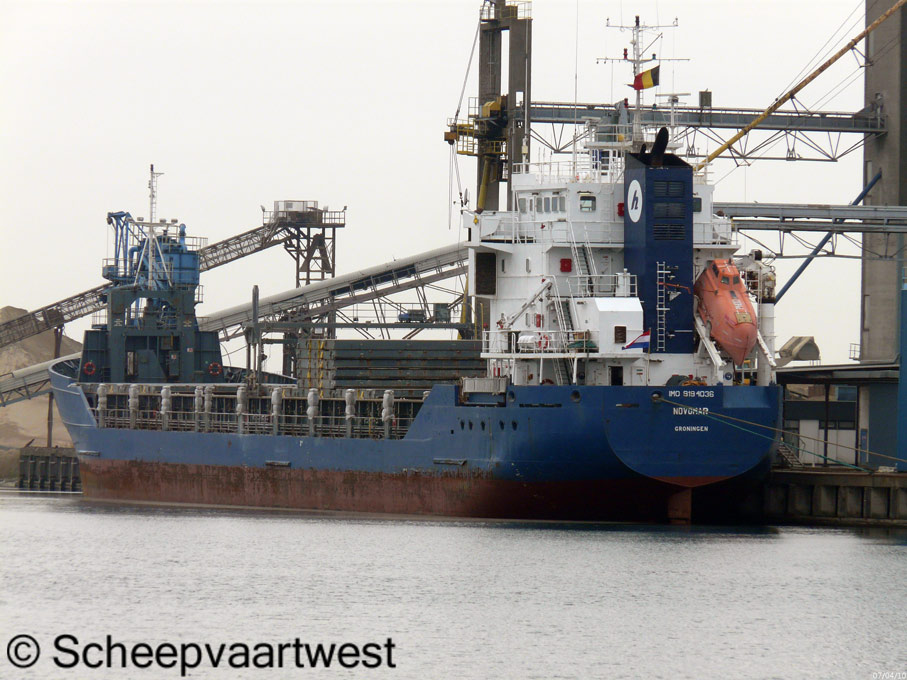

Novomar 04
Zeebrugge 07 April 2010



Name

NOVOMAR

Previous names

10.1999 Elara

02.10.2002 Slochterdiep
26.10.2007 Novomar

Type

General cargo ship - Strengthened for Heavy Cargo, Equipped for Carriage of Containers

IMO-number

9194036

MMSI-number

246404000

Call sign

PHDO

Flag

The Netherlands

Port of registry

Groningen

GT

3.170 t

DWT

Summer: 4.750 t

NT

1.876 t

Number of 20ft containers

282

Number of 40ft containers

129

Containers capacity 14t

174

Length

98,90 m overall

92,50 m between perpendiculars

92,75 m registered

Breadth

13,80 m registered

Draught

5,739 m

Air draft

27,50 m

Forecastle

12,60 m

Poop

6,80 m

Depth to main deck

7,40 moulded

Speed

13,0 knots

Built

1999

Keel laid

26.02.1998

Launch date

15.04.1999

Date of completion

18.10.1999

Builder

Rousse Industry A.D. Shipyard
5, Matei Stoikov Street
7000 Ruse
Bulgaria

Yard number

401

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double hull

Partly double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAK 6 M 32 - 4 stroke single acting 6 cylinder 320 x 480 mm diesel engine - 2.880 kW / 3.915 bhp at 600 rpm

Year of manufacture: 1998

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 321 rpm

Boilers

1x Water heater, oil fired - 5,0 bar

Heating surface: 11,0 m²

Year of manufacture: 1999

Electric installations

1x Plant 380/220 V - 400 kVA

1x Plant 380 V - 410 kVA

1x Plant 380 V - 106 kVA

Shaft generator

1x 410 kVA

Generators

2x Main diesel generatorsets each 200 kVA

Emergency generator

1x Diesel generatorset 106 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver 20 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 325 kW, forward

Cargo capacity

Grain: 6.255 m³

Bales: 6.255 m³

Hold capacity

Hold 1: 118.655 ft³ / 3.359,94 m³

Hold 2: 102.246 ft³ / 2.895,28 m³

Hold dimension

Hold 1: 37,70 x 11,20 x 8,46 m

Hold 2: 21,30 x 11,20 x 8,46 m

Hatch

Length: 70,35 m

Breadth: 11,20 m

Tank capacities

Fuel oil: 254 m³

Ballast water: 1.906 m³

Anchor equipment

3x Anchors weight each 2.280 kg

Chain length: 467,50 m

Crew

9

Manager

Feederlines B.V.
Eenrumermaar 2
9735 AD Groningen
The Netherlands

Owner

Beheermaatschappij MS "SLOCHTERDIEP II" B.V.
Eenrumermaar 2
9735 AD Groningen
The Netherlands
