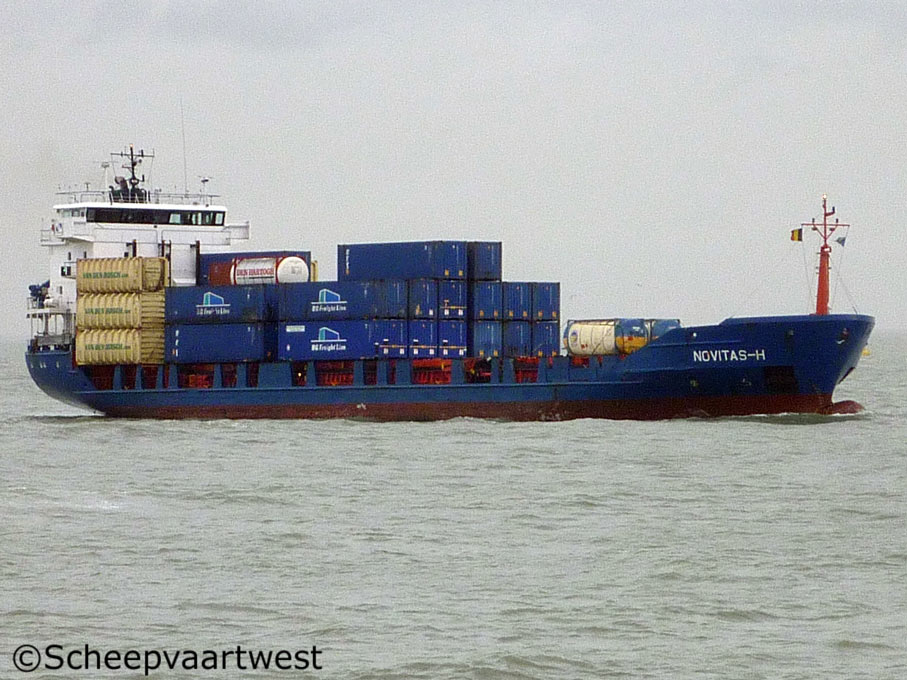

Novitas-H 01
Westerschelde 03 December 2011

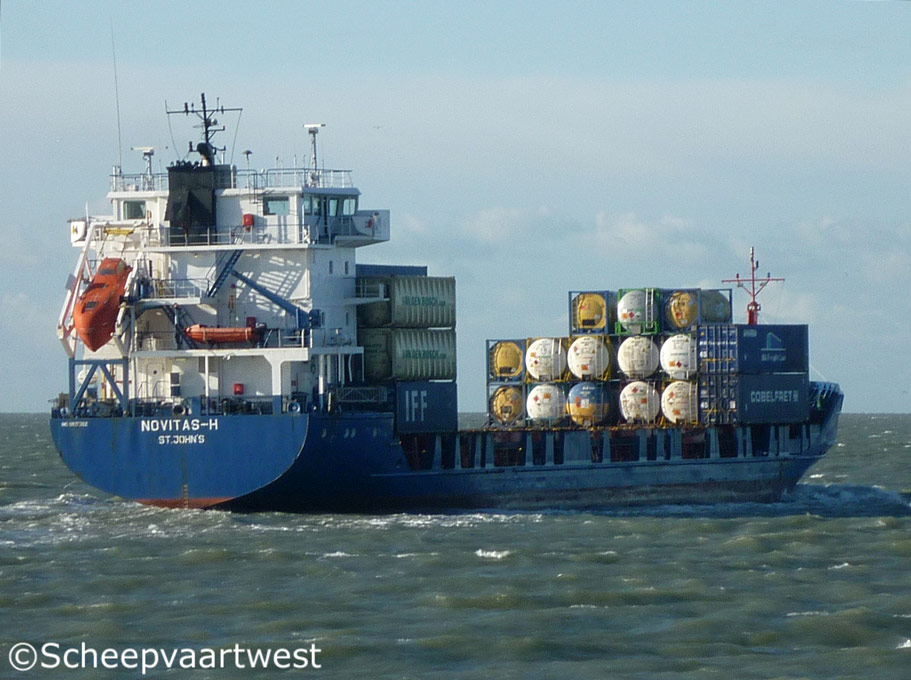

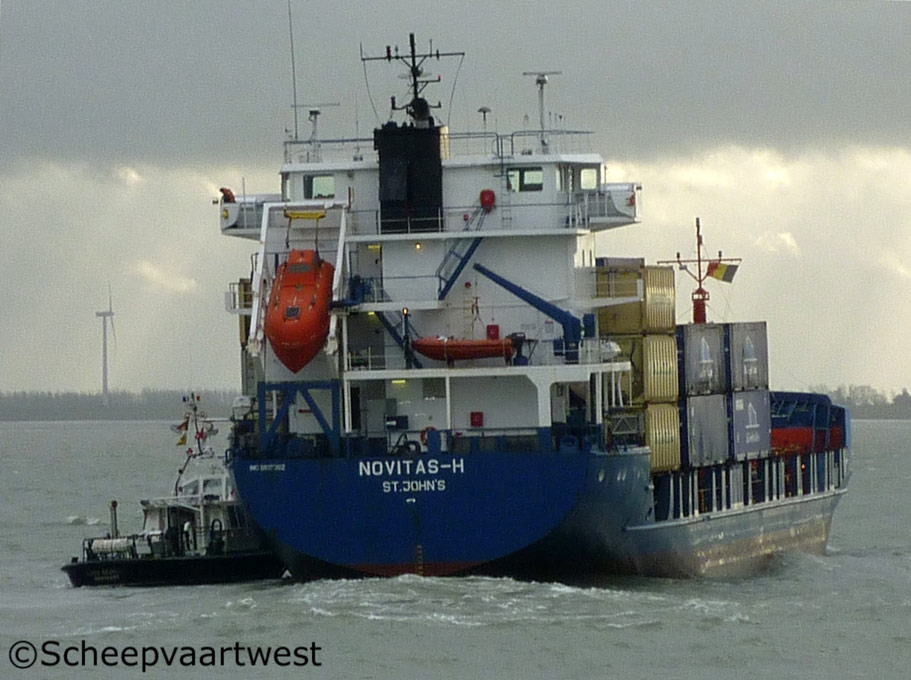

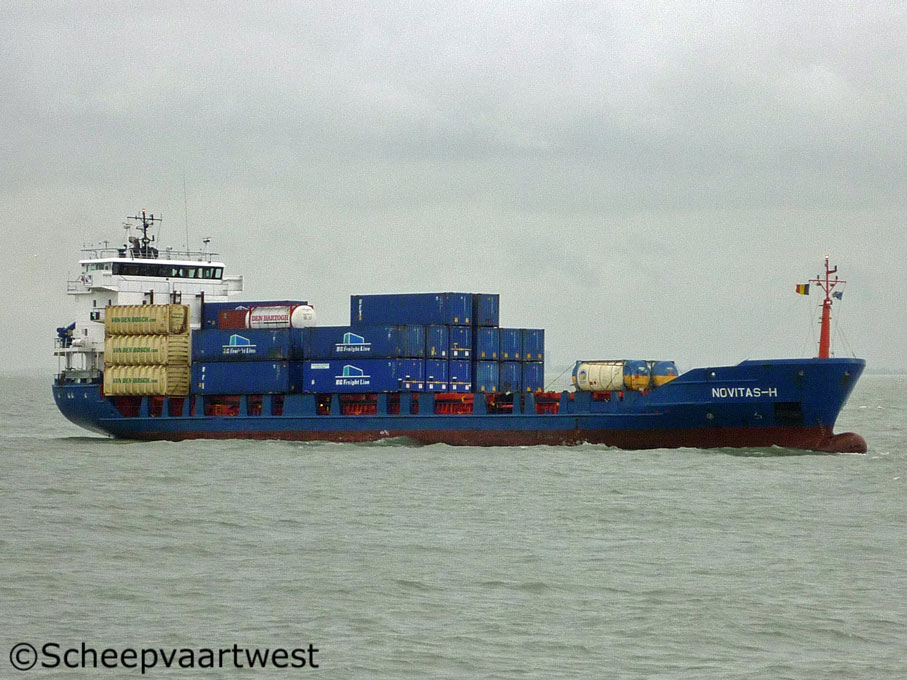

Novitas-H 12 Novitas-H 17   Novitas-H 03
Westerschelde 03/12/11 Westerschelde 18/12/11 Westerschelde 03/1211



Name

NOVITAS-H

Previous names

1995 - 08.06.1997 Bell Ady

08.06.1997 - 08.09.2003 Ady

Type

General cargo ship - Strengthened for heavy cargo, Equipped for carriage of containers

IMO-number

9107382

Call sign

V2AH3

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.899 t

DWT

3.922 t

NT

1.390 t

Number of 20ft containers

338

Container capacity 14t

215

Reefer capacity

40

Length

99,33 m overall

94,09 m registered

Breadth

16,20 m registered

Draught

4,09 m

Forecastle

7,04 m

Poop

6,96 m

Depth

6,40 m moulded

Speed

14,0 knots

Built

1995

Keel laid

24.06.1994

Launch date

12.11.1994

Date of completion

28.02.1995

Builder

Elbewerft Boizenburg GmbH
Fährweg 1
19258 Boizenburg
Federal Republic of Germany

Yard number

225

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x Krupp MaK 8 M 453 C - 4 stroke 8 cylinder 320 x 420 mm diesel engine - 1.879 kW at 600 rpm

Year of Manufacture: 1994

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 182 rpm

Boilers

1x Water heater, oil fired - 4,0 bar

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 20,9 m²

Year of Manufacture: 1994

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

2x Plant 390/220 V - 175 kVA

1x Plant 390 V - 475 kVA

1x Plant 390 V - 175 kVA

Shaft generator

1x 475 kVA

Generators

2x Main diesel generatorsets each 175 kVA

Emergency generator

1x Diesel generatorset 175 kVA

Compressed air receivers

1x Receiver 500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 250 kW, forward

Cargo capacity

Grain: 4.440 m³

Ballast water

2.020 m³

Anchor equipment

3x Anchors weight each 2.640 kg

Chain length: 467,50 m

Crew size

13

Manager

Reederei Hinsch GmbH & Co. KG
Rudolf-Diesel-Str. 2
21614 Buxtehude
Federal Republic of Germany

Owner

Novitas-H Zehnte R.S.T. Schiffahrtsges. mbH & Co. KG
Große Elbstraße 45
22787 Hamburg
Federal Republic of Germany
