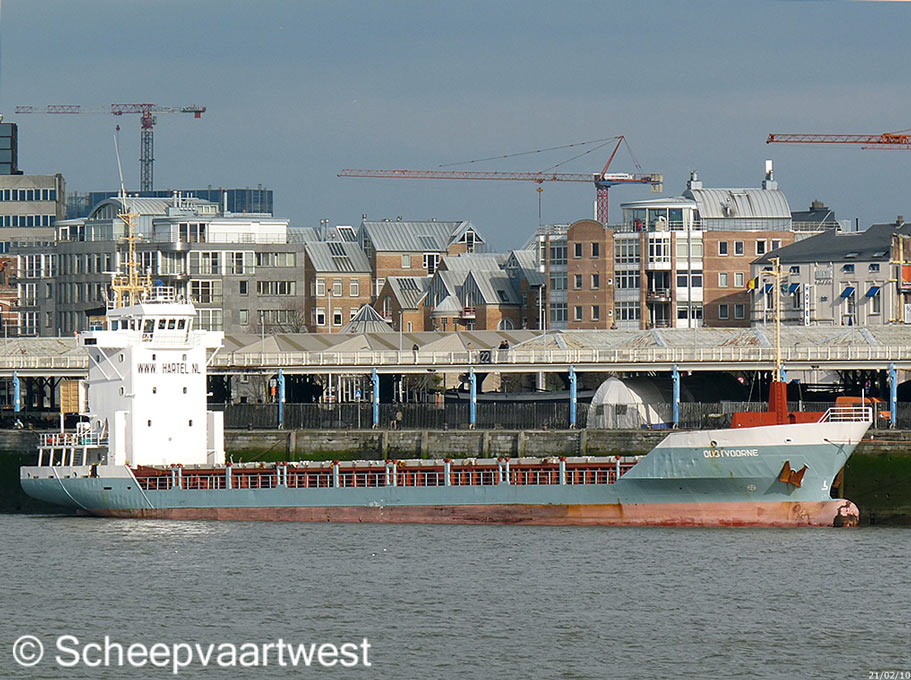

Oostvoorne - IMO 9142655

Name

OOSTVOORNE

Previous names

00.1996 Lys Viking
11.2000 Heereweg
06.2004 Oostvoorne
07.2004 Happy Hopper
10.2004 Oostvoorne

Type

General cargo ship - Equipped for Carriage of Containers, Strengthened for Heavy Cargo

Single decker / Box type

IMO-number

9142655

Official number

2848

Call sign

V2BZ5

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.035 t registered

DWT

2.780 m

NT

1.168 t registered

Number of 20ft containers

205

Length

90,60 m overall

84,64 m registered

Breadth

13,75 m registered

Draught

4,295 m

Forecastle

5,97 m

Quarterdeck

9,90 m

Depth

5,55 m moulded

Speed

13,5 knots

Built

1996

Keel laid

05.10.1995

Launch date

01.04.1996

Date of completion

01.05.1996

Builder

Tille Scheepsbouw Kootstertille B.V.
Balkwar 10
9288 ZG Kootstertille
The Netherlands

Yard number

310

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

3

Continuous decks

1

Main engine

1x Stork-Wärtsilä 6 SW 280 - 4 stroke single acting 6 cylinder 280 x 300 mm diesel engine - 1.800 kW at 900 rpm

Year of manufacture: 1995

Manufacturer: Stork - Wärtsilä Diesel B.V.
Assendorperlure 5
8017 AA Zwolle
The Netherlands

Propeller

1x Solid propeller - aft at 222 rpm

Electric installations

1x Plant 440/220 V - 476 kVA

1x Plant 440 V - 13 kVA

Generators

2x Scania diesel generatorsets each 190 kW / 237,5 kVA

Emergency generator

1x Diesel generatorset 13 kVA

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

Bow thruster

220 kW / 300 bhp

Cargo capacity

Grain & bales: 3.922 m³

Hold

1

Hatch

1

Length: 61,80 m

Breadth: 10,80 m

Height under hatch

6,00 m

Tank capacities

Ballast water: 1.275 m³

Fuel oil: 277 m³

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440,00 m

Crew size

8

Manager

Hartel Shipping & Chartering
Oostvoorne
The Netherlands

Operator

Hartel Shipping & Chartering B.V.
Goudhoekweg 14
3233 AM Oostvoorne
The Netherlands

Owner

Schepers Navigamus Trans GmbH & Co. KG
Wesuweer Hauptstr. 67
49733 Haren/Ems
Federal Republic of Germany

Registered owner

Schepers Navigamus Trans GmbH & Co. KG
Haren/Ems
Federal Republic of Germany

Remarks

Non-cellular container feeder vessel able accept high volume units on deck
