| Spijkenisse 09 April 2011 |
|
Name |

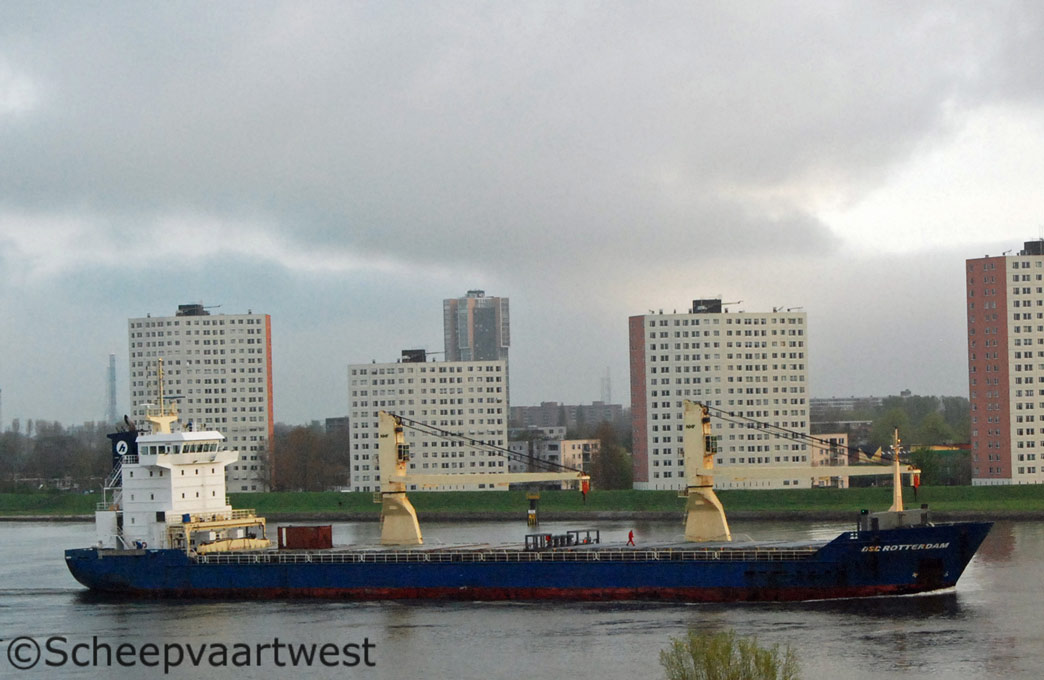

OSC ROTTERDAM |
|
Previous names |
2004 - 28.09.2004 Veelerdiep 2004 - 12.11.2009 UAL Rotterdam 2009 - 26.10.2011 OSC Rotterdam |
|
Type |
Multi-purpose cargo vessel - Strengthened for heavy cargoes, Container cargoes in hold and on hatch covers |
|
IMO-number |
9277333 |
|
Call sign |
PHBQ |
|
Flag |
The Netherlands |
|
Port of registry |
Groeningen |
|
GT |
5.057 t |
|
DWT |
Summer: 7.650t |
|
NT |
2.663 t |
|
Number of 20ft containers |
In hatch: 199 On deck: 174 Total: 373 |
|
Number of 40ft containers |
On hatch: 88 + 23 TEU On deck: 84 + 6 TEU Total: 172 + 29 TEU |
|
Containers capacity 14 t |
238 |
|
Reefer plugs |
10 on hatch |
|
Length |
119,98 m overall 113,35 m between perpendiculars |
|
Breadth |
15,21 m |
|
Draught |
7,05 m |
|
Depth |
8,45 m to main deck |
|
Speed |
14,0 knots |
|
Built |
2004 |
|
Date of completion |
29.09.2004 |
|
Builder casco |
Zaliv Shipyard |
|
Builder completion |
Bodewes Hoogezand Yard number: 623 |
|
Main engine |
1x MAK 8 M 32 - 3.840 kW |
|
Generators |
3x Scania DI 12 45 M diesel generatorsets each 275 kW |
|
Emergency generator |
1x Diesel generatorset 96 kW |
|
Bow thruster |
300 kW |
|
Number of holds |
2 Hold 1: abt. 4.306 m³ / 152.062 ft³ Hold 2: abt. 5.288 m³ / 186.740 ft³ Total: abt. 9.594 m³ / 338.802 ft³ |
|
Hatch covers |
Pontoon type |
|
Hatch openings |
Hatch 1: 39,00 x 12,65 / 5,50 m |
|
Deck strength |
Tanktop : 15 t/m² Hatch cover: 1,75 t/m² |
|
Tank capacities |
HFO: 545 m³ 98% MGO: 80 m³ 98 % Fresh water: 50 m³ Water ballast: 3.313 m³ |
|
Ventilation |
6 air changes per hour |
|
Cargo gears |
2x Cranes - SWL 60 t - Max. outreach: 25,00 m |
|
Crew complement |
12 |
|
Manager |
Feederlines |
|
Operator |
Onego Shipping & Chartering B.V. |
|
Renamed |
2011 Veelerdiep |
