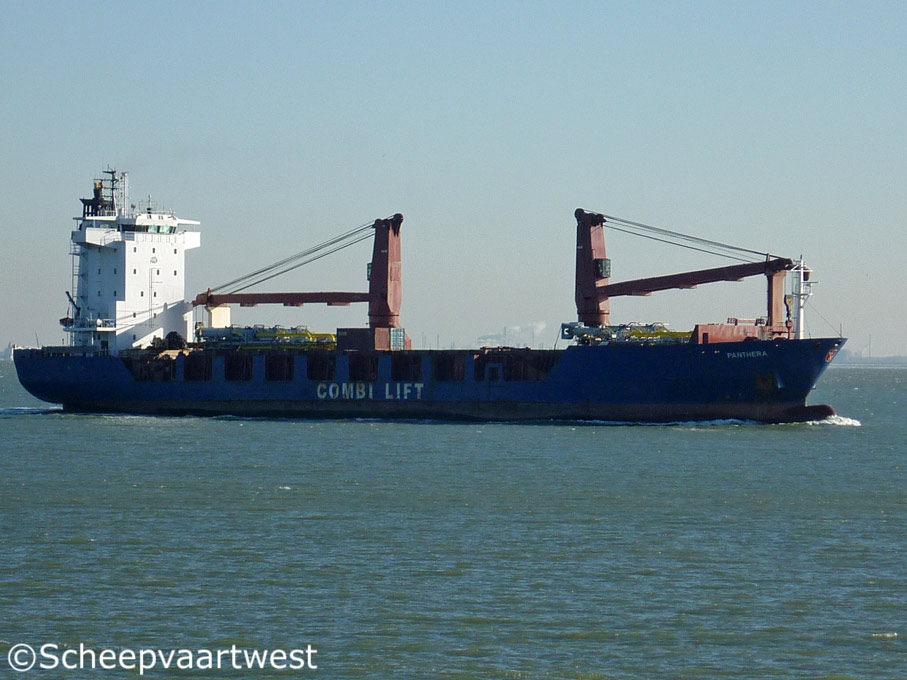

| Westerschelde 02 February 2012 |
|
Name |
PANTHERA |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Heavy lift carrier |
|
IMO-number |
9226700 |
|
Call sign |
V2FA5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
6.272 t |
|
DWT |
7.072 t |
|
NT |
3.116 t |
|
Number of 20ft containers |
On deck: 269 In hold: 218 Total: 487 |
|
Container capacity 14t |
338 |
|
Reefer points |
40 |
|
Length |
117,94 m overall 111,22 m registered |
|
Breadth |
19,40 m registered |
|
Draught |
7,25 m |
|
Forecastle |
21,67 m |
|
Poop |
13,41 m |
|
Freeboard |
2.211 mm |
|
Depth |
9,45 m moulded |
|
Speed |
Max.: 16,0 knots |
|
Built |
2001 |
|
Keel laid |
08.06.2000 |
|
Launch date |
09.12.2000 |
|
Date of completion |
02.2001 |
|
Builder |
P + S Werften GmbH |
|
Yard number |
496 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 6 M 43 - 4 stroke 6 cylinder 430 x 610 mm diesel engine - 5.400 kW at 500 rpm Year of manufacture: 2000 Manufacturer: MaK Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft 169 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating Surface: 15 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating Surface: 182 m² Year of manufacture: 2000 Manufacturer: Aalborg Marine Boilers |
|
Electric installation |
2x Plants each 440/220 V - 450 kVA 1x Plant 440 V - 825 kVA 1x Plant 440 V - 450 kVA |
|
Shaft generator |
1x 825 kVA |
|
Generators |
2x Main diesel generators each 450 kVA |
|
Emergency generator |
1x Diesel generatorset 450 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 450 kW, forward |
|
Number of holds |
2 |
|
Capacity of all holds |
10.000 m³ |
|
Max. Deckload |
Tanktop: 12,5 t/m² Tweendeck: 3,5 t/m² Hatchcover: 2,5 t/m² |
|
Tank capacities |
Fuel oil: 651,056 m³ Diesel oil: 111,436 m³ Ballast water: 3.914 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m |
|
Lifting devices |
2x Cranes - each SWL 150.00 / 120.00 t Combinable SWL up to max. 300 t Manufacturer: NMF |
|
Manager |
Harren & Partner Ship Management GmbH & Co. KG |
|
Operator |
Combi Lift |
|
Registered owner |
Harren & Partner Schiffahrts GmbH & Co. KG MS "PANTHERA" |
|
Special annotation |
Stability pontoon 46,2 t |
