| Westerschelde 21 September 2011 |
|
Name |

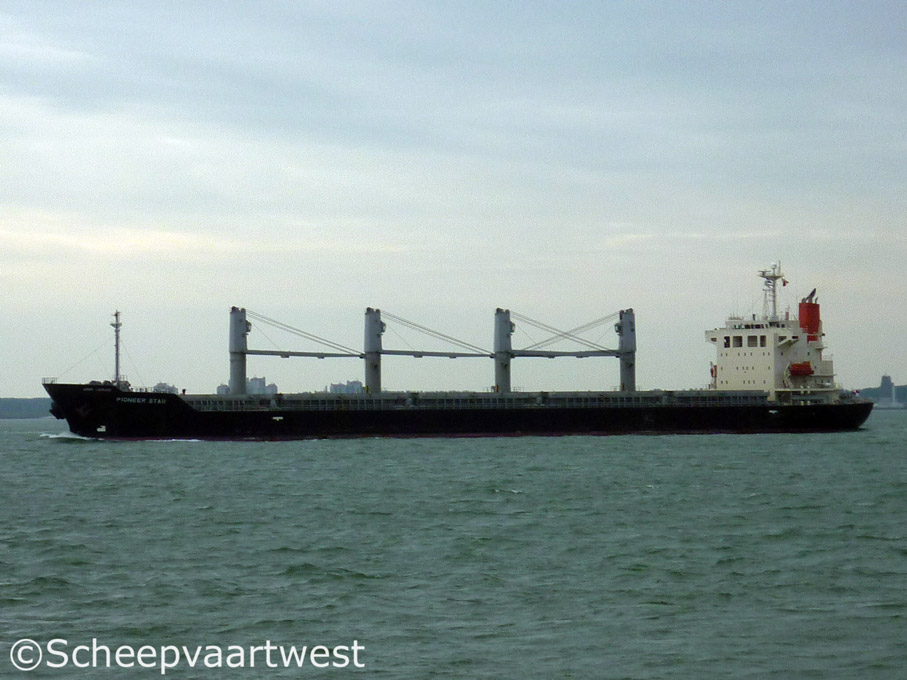

PIONEER STAR |
|
Type |
Bulk carrier |
|
IMO-number |
9303601 |
|
Call sign |
H8OT |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
21.385 t |
|
DWT |
33.540 t |
|
NT |
11.444 t |
|
Length |
179,99 m overall |
|
Breadth |
28,00 m |
|
Draught |
10,032 m |
|
Moulded L x B x D |
172,00 x 28,20 x 14,30 m |
|
Registered L x B x D |
172,32 x 28,20 x 14,30 m |
|
Freeboard |
Summer: 4.337 mm |
|
Depth |
14,30 m moulded |
|
Speed |
Trial: 16,0 knots |
|
Built |
2004 |
|
Keel laid |
02.04.2004 |
|
Launch date |
02.07.2004 |
|
Date of completion |
24.09.2004 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5273 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine - 6.250 kW / 8.381 bhp at 118,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Number of screws |
1 |
|
Propeller Shaf |
1x Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,87 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 1.590 kVA |
|
Cargo capacity |
Grain: 44.651 m³ Bales: 43.791 m³ |
|
Tank capacities |
Fuel oil: 1.613 m³ Fresh water: 310 m³ Water ballast: 12/579 m³ |
|
Lifting capacity |
1x Crane - SWL 2,0 t 4x Cranes - SWL 30,0 t each |
|
Manager |
Dojima Marine Co., Ltd. |
|
Registered Owner |
Oceanwide Shipping, S.A. |
