| Antwerpen 31 August 2011 |
|
Name |

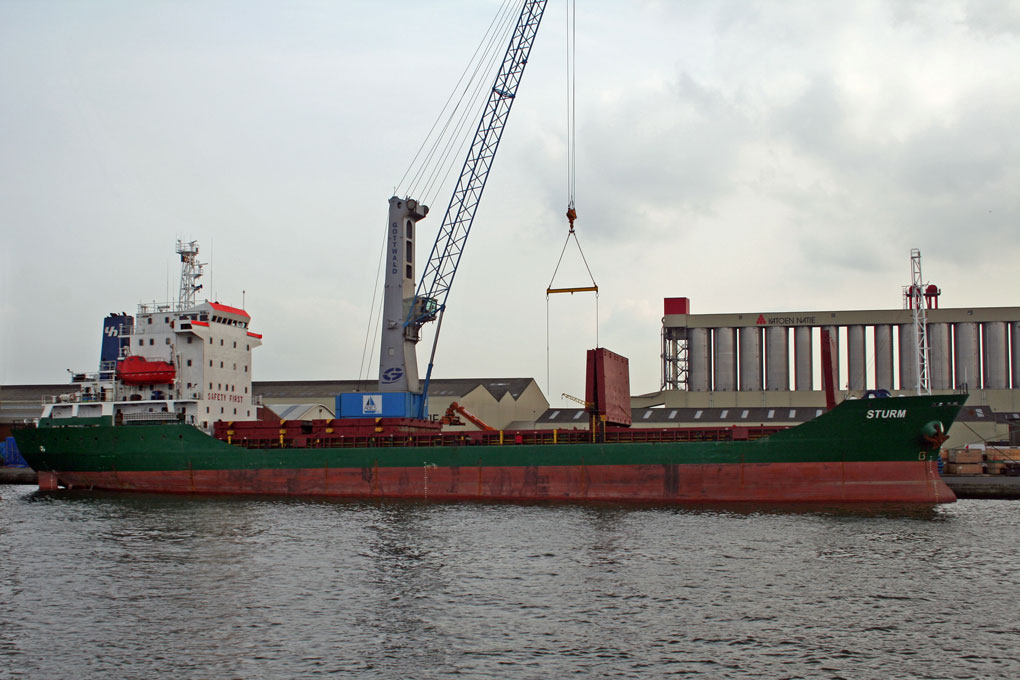

STURM |
|
Previous names |
1996 - 09.10.2008 Yu Yin |
|
Type |
General cargo ship |
|
IMO-number |
9156424 |
|
Call sign |
3EPV2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
4.048 t registered |
|
DWT |
5.531 t |
|
NT |
1.867 t registered |
|
Number of 20ft containers |
298 |
|
Length |
98,50 m |
|
Breadth |
16,80 m |
|
Draught |
6,080 m |
|
Moulded L x B x D |
92,00 x 16,80 x 7,80 m |
|
Registered L x B x D |
92,15 x 16,80 x 7,80 m |
|
Freeboard |
Summer: 1.740 mm |
|
Depth |
7,80 m moulded |
|
Speed |
10,0 knots |
|
Built |
1996 |
|
Keel laid |
17.08.1995 |
|
Date of completion |
18.11.1996 |
|
Builder |
Zhejiang Jingang Shipbuilding |
|
Yard number |
95-59 |
|
Main engine |
2x ZJMO MAN B&W - 4 stroke single acting 8 cylinder 225 x 300 mm diesel engines - each 1.080 kW total 2.160 kW at 825,0 rpm Manufacturer: Zhenjiang Marine Diesel Works |
|
Propeller shaft |
Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 1,30 t/h Manufacturer: Shazhou Marine Boiler Factory |
|
Generators |
4x Diesel generatorsets each 524 kVA |
|
Number of holds |
2 Hold 1: 21,45 x 12,60 x 8,16 m (box shape) Hold 2: 39,65 x 12,60 x 8,16 m (box shape) |
|
Number of hatches |
2 Hatch 1: 19,50 x 12,60 m (Pontoon leaves, piggy back) Hatch 2: 37,70 x 12,60 m (Hydraulic folding) |
|
Cargo capacity |
Hold 1: Grain: 2.096 m³ / Bales: 2.060 m³ Hold 2: Grain 4.069 m³ / Bales 4.000 m³ |
|
Tank capacities |
Fuel oil: 206 m³ Fresh water: 126 m³ Water ballast: 385 m³ |
|
Gear |
Gearless |
|
Manager |
Sefer Chartering Ltd. Co. |
|
Operator |
Mina Madencilik Ltd Sti |
|
Registered Owner |
Granada Trade Company Ltd. |
