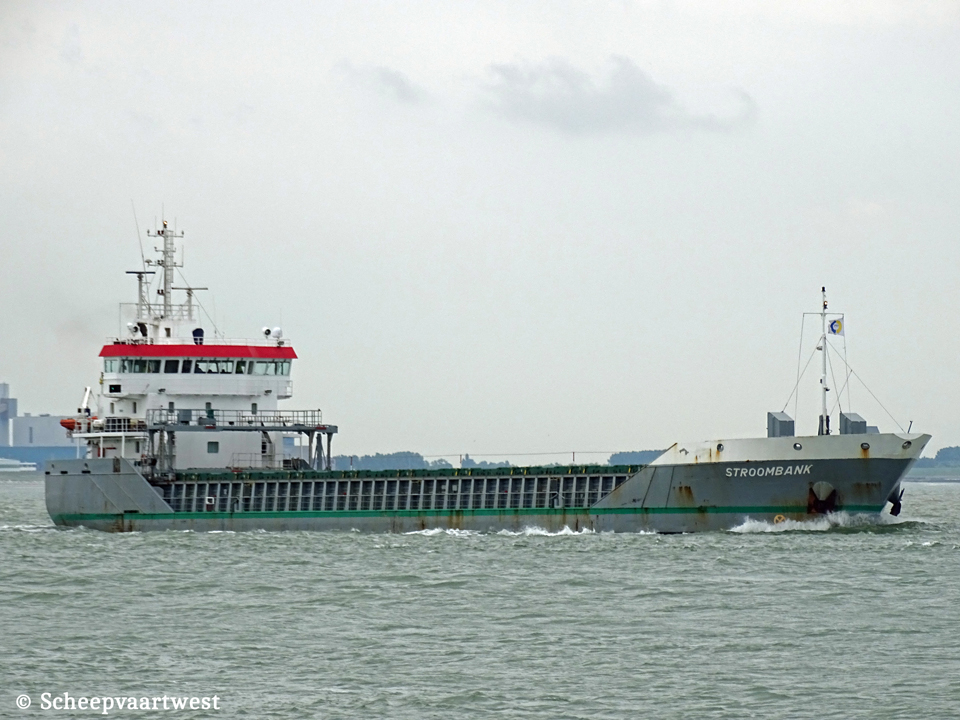

Westerschelde 30 July 2016 |
 |
 |
|

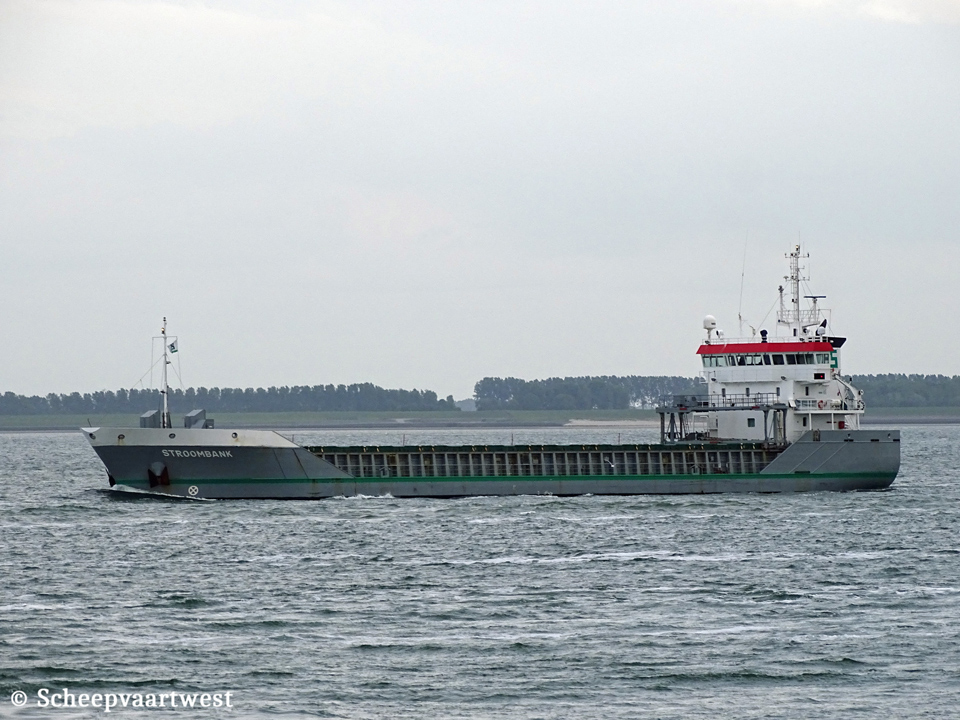

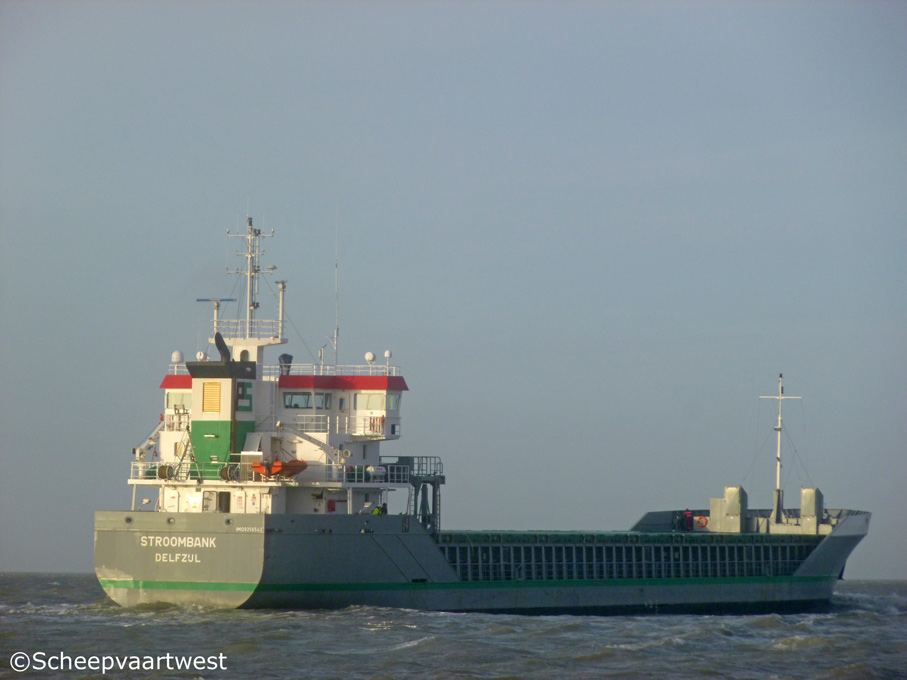

| Westerschelde 27/05/19 | Westerschelde 07/01/14 | |
|
Name |
STROOMBANK |
|
Type |
Multi-purpose dry cargo carrier - Container ship - Heavy cargo |
|
IMO-number |
9356543 |
|
Call sign |
PBSE |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.999 t |
|
DWT |
Summer: 4.550 t |
|
NT |
1.662 t |
|
Number of 20ft containers |
106 |
|
Length |
89,95 m overall 84,99 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
5,83 m |
|
Freeboard |
1.232 mm |
|
Depth |
7,35 m moulded |
|
Speed |
Max.: 13,0 knots Service: 11,5 knots |
|
Built |
2009 |
|
Launch date |
06/04/2009 |
|
Date of completion |
07/06/2009 |
|
Builder casco |
Servië |
|
Builder completion |
Bijlsma Shipyard B.V. (Veka) Lemmer The Netherlands |
|
Yard number |
707 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
5 |
|
Movable bulkheads |
Vessel equipped with movable hold separations / grain bulkheads in various positions |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26 - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine 1.860 kW / 2.527 bhp at 900 rpm |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHR Heatmaster B.V. 26,00 m² - 10,0 bar 1x CHO Heatmaster B.V. 9,90 m² - 10,0 bar |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
1x Scania DI-9 60M main diesel generatorset 339 kVA - 271 kW - 296 hp |
|
Emergency generator |
1x Scania DI-9 60M diesel generatorset 339 kVA - 271 kW - 296 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1x Single box-shaped hold 63,00 x 11,60 x 8,39 m |
|
Total capacity of holds |
6.032 m³ / 207.000 ft³ |
|
Hold ventilation |
8 Changes/hour |
|
Number of hatches |
1x Pontoon hatch panels by gantry crane on coaming rails 63,00 x 11,60 m |
|
Hatches cover type |
Pontoon hatch covers |
|
Max. permitted loads |
Tank top: 15,0 t/m² Tween deck: 2,0 t/m² |
|
Tank capacities |
HFO: 395 m³ Gas oil: 359 m² Fresh water: 48 m³ Water ballast: 1.800 m³ |
|
ISM Manager |
Pot Scheepvaart B.V. Handelskade West 28-A 9934 AA Delfzijl The Netherlands |
|
Commerical manager |
Wagenborg Shipping B.V. Delfzijl The Netherlands |
|
Registered owner |
Bankship IV B.V. Care of Pot Scheepvaart Handelskade West 28A 9934 AA Delfzijl The Netherlands |
|
Latest data adjustment |
08 November 2021 |
