| Westerschelde 09 October 2012 |
|
Name |

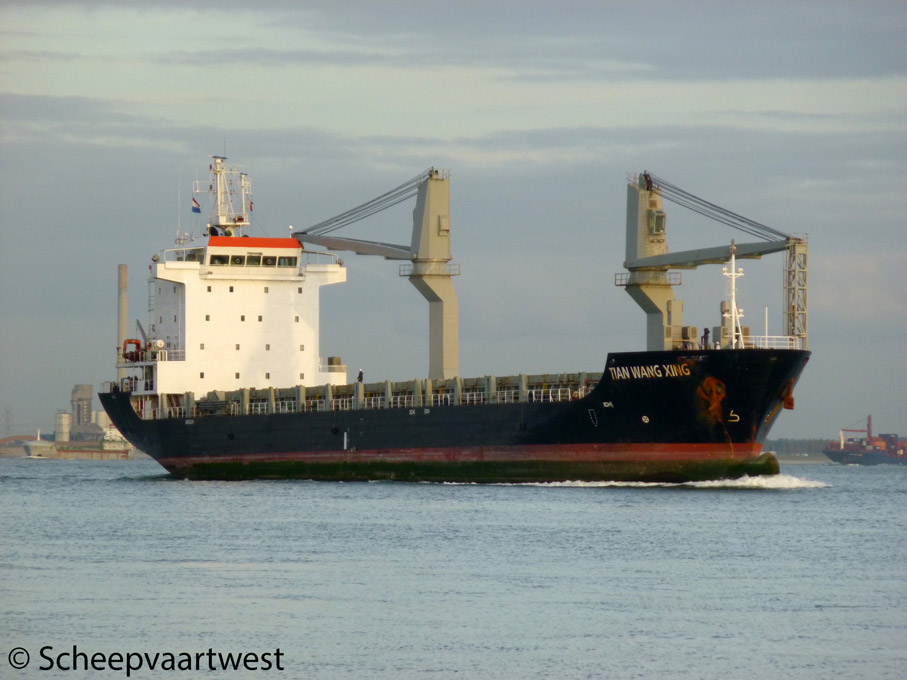

TIAN WANG XING |
|
Previous names |
Launch as: Top Glory |
|
Type |
General dry cargo ship |
|
IMO-number |
9464223 |
|
Call sign |
3EOW4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
7.460 t |
|
DWT |
9.106,2 t |
|
NT |
3.295 t |
|
Number of 20ft containers |
On deck: 366 In hold: 264 Total: 630 |
|
Length |
122,20 m overall 116,00 m between perpendiculars |
|
Breadth |
19,80 m moulded |
|
Draught |
7,20 m |
|
Forecastle |
11,00 m |
|
Deckhouse |
16,20 m |
|
Poop |
8,00 m |
|
Freeboard |
3.514 mm |
|
Speed |
13,5 knots |
|
Built |
2008 |
|
Keel laid |
28.03.2007 |
|
Launch date |
13.10.2007 |
|
Date of completion |
04.02.2008 |
|
Builder |
China Changjiang National Shipping Group Yichang Shipyard |
|
Yard number |
20068011 |
|
Hull material |
Steel |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Pielstick 6PC2-6/2L*1 - 4 stroke single acting 6 cylinder 400 x 460 mm diesel engine - 3.300 kW / 4.487 hp at 520 rpm Built: 01.06.2007 Builder: Qingdao Marine Boiler Works Co., Ltd. - China |
|
Propellers |
1 |
|
Boilers |
1x Boiler - 9,0 bar Built: 01.07.2007 Builder: Shanxi Diesel Heavy Industry Co., Ltd. - China |
|
Generators |
3x Main diesel generatorsets each 331,2 kVA - 400 Volt |
|
Number of holds |
2 |
|
Water ballast |
3.619,2 m³ |
|
Cargo gear |
2x Cranes - SWL 40,0 t each |
|
Operator |
COSCO Shipping Co., Ltd. |
|
Owner |
Tian Wang Xing Maritime S.A. |
|
Last update |
28.03.2013 |
