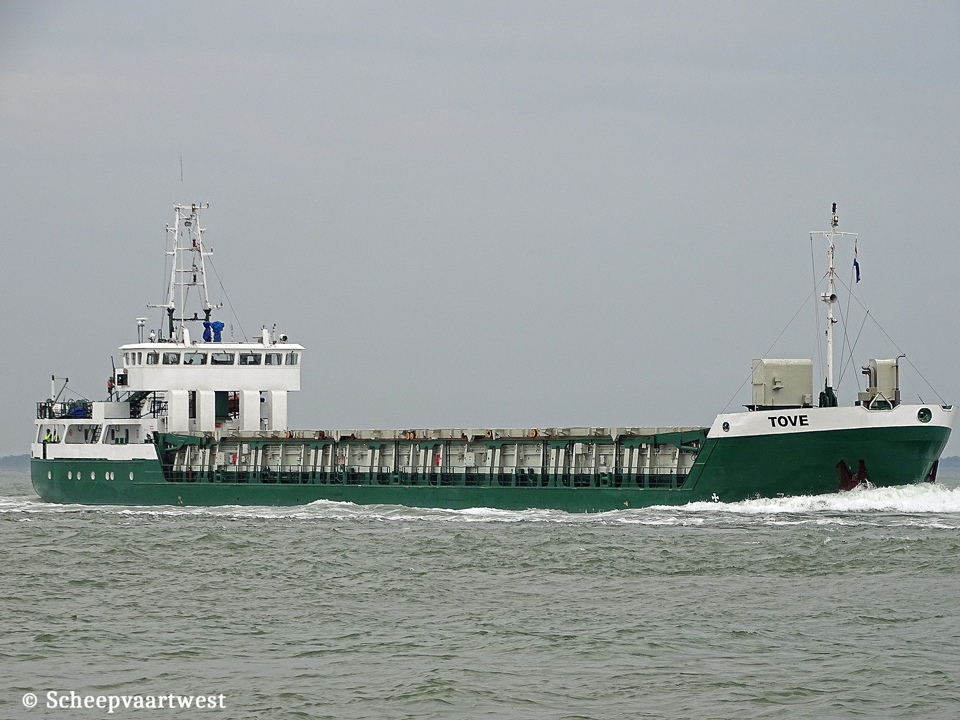

| Westerschelde 10 August 2017 |
 |
|

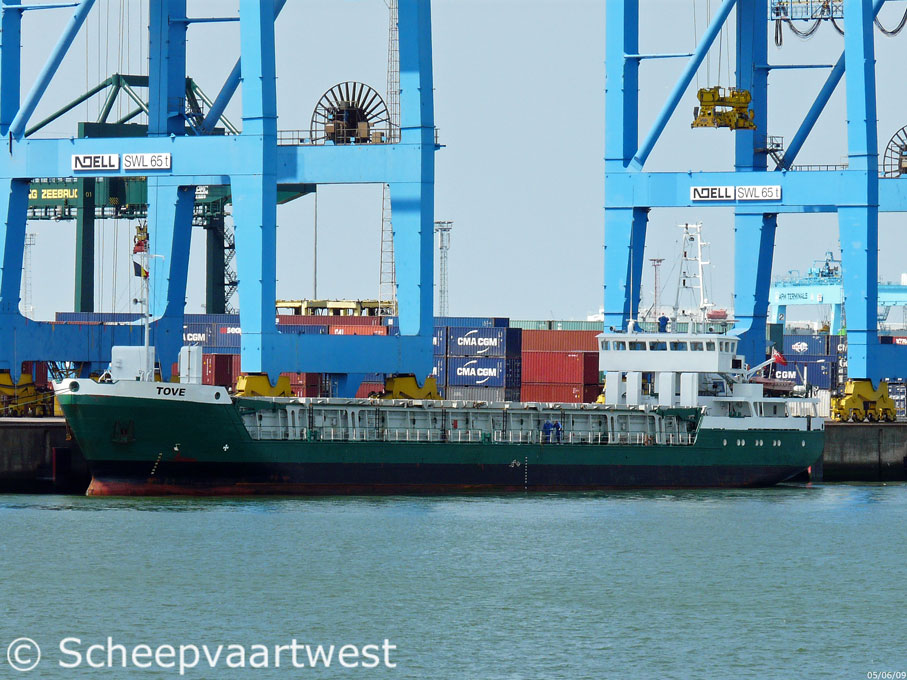

| Zeebrugge 10/08/17 | |
|
Name |
TOVE |
|
Previous names |
10/1996 Arcturus 02/2004 RMS Arcturus 02./2006 HAV Arcturus 01/2007 Arcturus 2007 - 02/2019 Tove |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9156175 |
|
Call sign |
ZDHX3 |
|
Flag |
Gibraltar |
|
Previous flags |
1996 - 2000 Germany 2000 - 2007 Antigua & Barbuda |
|
Port of registry |
Gibraltar |
|
GT |
1.864 t |
|
DWT |
Summer: 2.517 t |
|
NT |
938 t |
|
Number of 20ft containers |
In hold: 69 On deck 36 Total: 105 |
|
Length |
82,35 m overall 79,82 m between perpendiculars |
|
Breadth |
11,50 m overall 11,35 m moulded |
|
Draught |
Summer: 4,80 m Winter: 4,70 |
|
Keel to mast end |
25,48 m 14,15 m lowered mast |
|
Forecastle |
6,62 m |
|
Poop |
15,60 m |
|
Air draft |
9,00 m |
|
Freeboard |
1.300 mm |
|
Depth |
6,12 m moulded |
|
Speed |
Service: 10,0 knots |
|
Built |
1996 |
|
Keel laid |
18/12/1995 |
|
Launch date |
23/08/1996 |
|
Delivery date |
09/10/1996 |
|
Builder |
Slovenske Lodenice a.s. Rolnickej Skoly 1519 945 25 Komarno Slovak Republic |
|
Yard number |
1504 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom, (E.G. Interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2x Movable bulkheads |
|
Main engine |
1x Deutz SBV8M628 - 4 stroke single acting 8 cylinder 240 x 280 mm combustion engine 1.350 kW / 1.835 hp at 800 rpm Year of manufacture: 1995 Manufacturer: MWM - Motoren-Werke Mannheim AG Carl-Benz-Str. 5 68167 Mannheim Federal Republic of Germany |
|
Number of screws |
1x Fixed pitch propeller - aft |
|
Boiler |
1x Water heater, oil fired - 4,0 bar Year of manufacture: 1995 |
|
Electric installations |
1x 380/220 V - 170 kVA 1x 380 V - 85 kVA |
|
Generators |
2x Deutz-MWM TD 226-6 main diesel generatorsets each 85 kVA |
|
Emergency generator |
1x Deutz-MWM TD 226-6 diesel generatorset 85 kVA |
|
Compressed air receivers |
2x Receivers, each 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x OMEGA jet - 255 kW, forward |
|
Cargo capacity |
Grain/bale: 3.436 m³ / 121.343 ft³ with bulkheads |
|
Number of holds |
1 53,40 x 9,00 x 7,59 m |
|
Number of hatches |
1 52,40 x 9,00 m |
|
Hatch type |
Kvaerner Multifold Crocodile |
|
Tank capacities |
Water ballast: 1.059,11 m³ MGO: 171 m³ |
|
Anchor equipment |
3x Anchors weight each 1.290 kg Chain length: 385,00 m Diameter: 28 mm |
|
Crew |
6 |
|
Manager |
Vaage Ship Management AS Fjoesangerveien 70a 5068 Bergen Norway |
|
Operator |
Wagle Chartering AS |
|
Owner |
Vaagebulk II KS Torgallmenningen 10 5014 Bergen Norway |
|
Renamed |
02/2019 Wilson Wisla Barbados, Bidgetown - Call sign: 8PAQ9 Manager: Wilson Eurocarriers AS, Bergen - Norway Owner: Wilson Shipowning AS, Bergen - Norway |
|
Latest data adjustment |
27 April 2019 |
