| Antwerpen 06 April 2010 |
 |
| Antwerpen 06/04/10 |
|
Name |

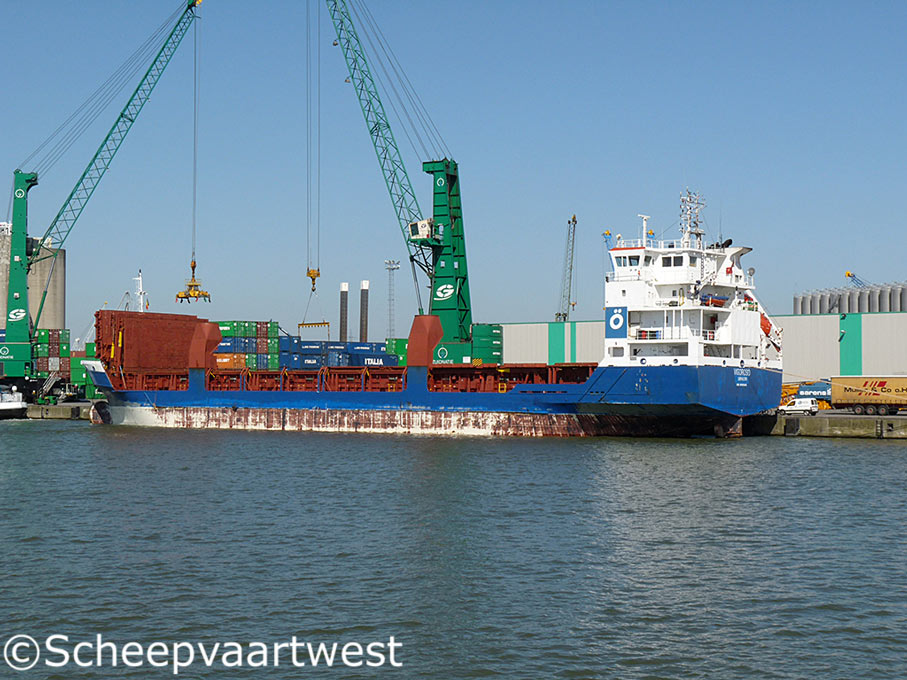

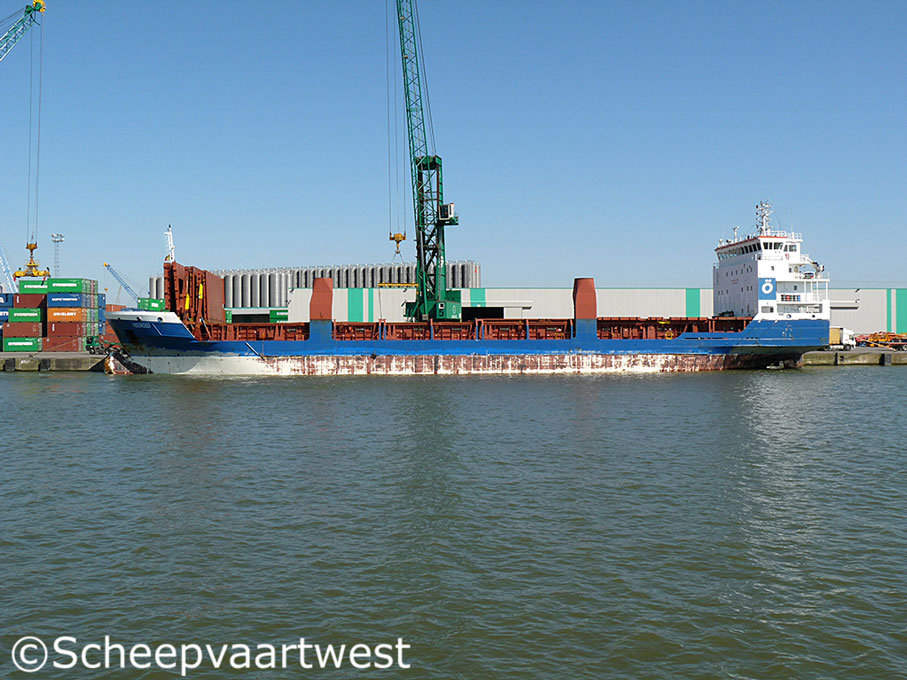

VIGOROSO |
|
Previous names |
Kar Cengizhan |
|
Type |
Multi-purpose single deck dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9191943 |
|
Call sign |
ZDIK3 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
4.244 t |
|
DWT |
5.555 t |
|
NT |
2.370 t |
|
Number of 20ft containers |
342 |
|
Length |
99,98 m overall 95,31 m registered |
|
Breadth |
16,50 m registered |
|
Draught |
6,10 m |
|
Freeboard |
1.910 mm |
|
Depth |
8,00 m moulded |
|
Speed |
13,0 knots |
|
Built |
2007 |
|
Keel laid |
08.06.1998 |
|
Launch date |
04.10.2002 |
|
Date of completion |
22.02.2007 |
|
Builder |
Istanbul Tersanesi Komutanligi |
|
Yard number |
5103 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 7 L 32/40 - 4 stroke single acting 7 cylinder 320 x 400 mm diesel engine - 3.360 kW at 750 rpm Year of manufacture: 1999 Manufacturer: MAN Diesel & Turbo SE |
|
Propeller |
Controllable pitch propeller - aft at 185 rpm |
|
Boiler |
1x Water heater, oil fired - 5,00 bar Heating surface: 11,74 m² Year of manufacture: 2000 |
|
Electric installations |
1x Plant 380/220 V - 452,5 kVA 1x Plant 380/220 V - 452,5 kVA 1x Plant 400 V - 750 kVA 1x Plant 380 V - 166,25 kVA 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 750 kVA |
|
Generators |
2x Main diesel generatorsets each 452,5 kVA |
|
Emergency generator |
1x Diesel generatorset 166,25 kVA |
|
Batteries |
2x Batteries for diesel control each 200 Ah 2x Batteries for UPS radio each 200 Ah 2x Batteries for start emergency engine each 200 Ah |
|
Compressed air receivers |
2x Receivers each 355 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 410 kW, forward |
|
Cargo capacity |
Grain:7.835 m³ Bales: 7.810 m³ |
|
Number of holds |
1 64,00 x 13,80 x 9,00 m |
|
Number of hatches |
1 64,00 x 13,80 m |
|
Strength |
Tanktop: 12,0 t/m² Hatch cover: 2,5 t/m² |
|
Anchor equipment |
3x Anchors weight each 2.850 kg |
|
Ventilation |
6 air changes/h |
|
Manager |
ShipCom Bereederungs GmbH |
|
Operator |
Österströms Logistics Klarabergsviadukten 90 SE-111 64 Stockholm |
|
Owner |
ShipCom Bereederungs GmbH & Co. Betriebs-KG MS "SCALDIS" |
