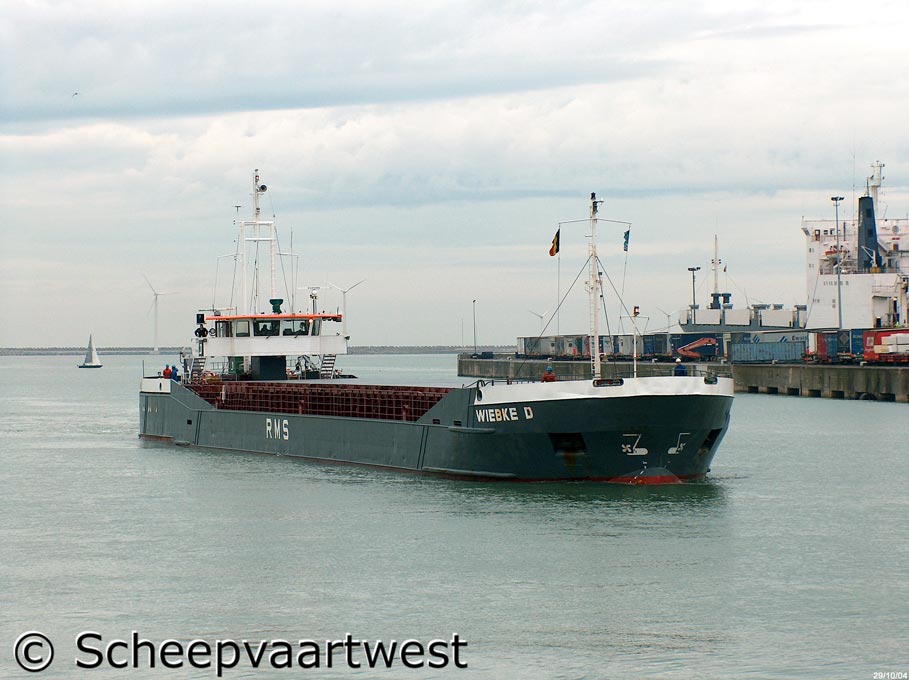

Wiebke D 02
Zeebrugge 29 October 2004

Wiebke D
Zeebrugge 29/10/04



Name

WIEBKE D

Previous names

1980 - 19.12.1997 Pandor - Germany

19.12.1997 - Wiebke D.

Type

General cargo ship

IMO-number

7924401

Call sign

V2CN

Flag

Antigua & Barbuda

Previous flag

30.11.1997 Germany

Port of registry

St. John’s

GT

1.441 t

DWT

Summer: 1.795 t

DWCC

1.700 t

NT

459 t

Length

80,91 m overall

77,80 m between perpendiculars

78,14 m registered

Breadth

11,30 m overall

Draught

Summer: 3,287 m

Draft

3,45 m

Forecastle

6,95 m

Poop

12,70 m

Quarterdeck

6,50 m

Depth

3,33 m moulded

Speed

10,5 knots

Built

1980

Keel laid

11.02.1980

Launch Date

05.03.1980

Date of completion

04.1980

Builder

J.J. Sietas Schifftwerft GmbH & Co
Neuenfelde
Hamburg
Germany

Yard number

910

Hull type

Double hull
Partly double bottom

Watertight bulkheads

3

Continuous decks

2

Main engine

1x Deutz SBA 8 M 528 - 4 stroke single acting 8 cylinder 220 x 280 mm diesel engine - 441 kW

Built: 1979

Builder:Klöckner-Humboldt-Deutz AG - Germany

Number of screws

1x Solid propeller - aft

Boiler

1x Steam boiler, oil fired
Year of manufacture: 1980

Electric installation

1x 380/220 V - 240 kVA

Generators

3x Diesel generatorsets each 80 kVA

Bow thruster

1x Variable pitch propeller PLEUGER forward

Compressed air receivers

2x Receivers, each 125 litres - 30,0 bar

Cargo capacity

Bale:2.425 m³ / 85.640 ft³

Grain: 2.444 m³ / 86.310 ft³

Tank capacities

Ballast: 1.201 m³

Fuel oil: 82 m³

Anchor equipment

3x Anchors weight each 1.020 kg
Chain length: 357,50 m

Manager

Kapitän Wolfgang Drabert
Eichenweg 1
23758 Oldenburg
Federal Republic of Germany

Operator

RMS - Lübeck Schiffahrtgesellschaft mbH
Lubeck
Germany

Owner

Drabert Schiffahrtsges. mbH
Eichenweg 1
23758 Oldenburg
Federal Republic of Germany

Special annotations

Wheelhouse hydraulic lowering
