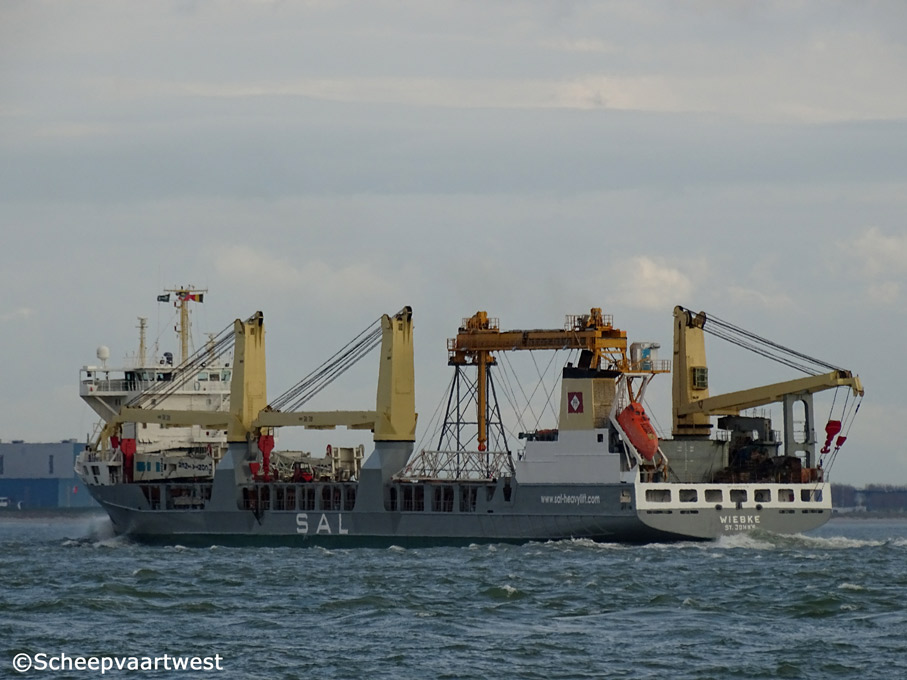

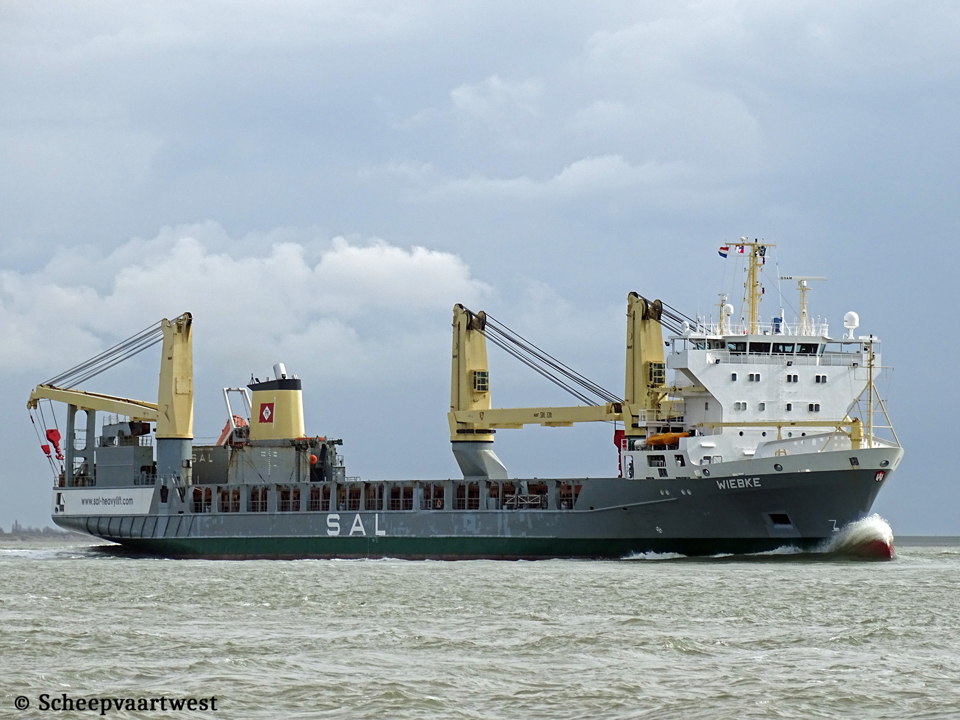

Westerschelde 28 March 2016 |
 |
 |
|

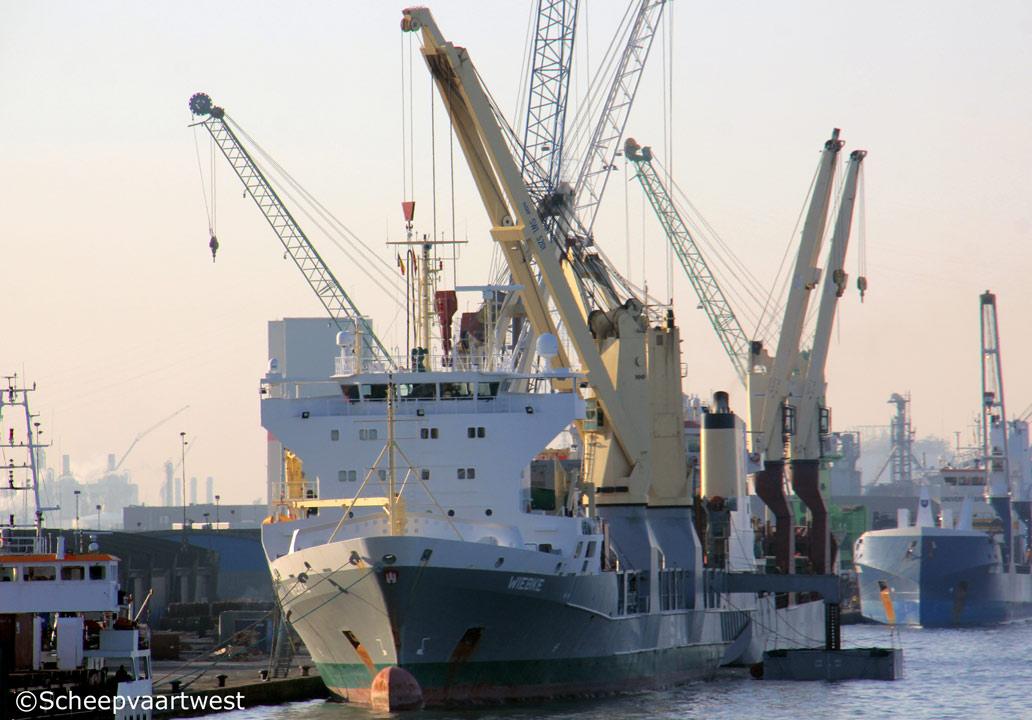

| Westerschelde 07/11/15 | Antwerpen 05/12/16 | |
|
Name |
WIEBKE |
|
Previous names |
2000 - 07/2001 Wiebeke 07/2001 - 2017 MS Wiebke |
|
Type |
General cargo ship - Strengthened for heavy cargo - Heavy lift ship Handysize |
|
IMO-number |
9197478 |
|
Call sign |
CQ2073 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2000 - 2017 Antigua & Barbuda, St. John's - Call sign: V2OD9 2017 - 2023 Germany, Hamburg - Call sign: DPEK |
|
GT |
8.397 t Suez: 8.572,53 t |
|
DWT |
Summer: 9.360 t |
|
NT |
4.178 t Suez: 6.915,35 t Panama: 7.636 t |
|
Displacement |
14.980 m³ |
|
Number of 20ft containers |
827 |
|
Reefer capacity |
50 |
|
Length |
151,65 m overall 143,32 m between perpendiculars |
|
Breadth |
20,40 m moulded 21,02 m extreme |
|
Draught |
Summer: 7,85 m |
|
Freeboard |
Summer: 2.179 mm |
|
Depth |
10,50 m moulded |
|
Speed |
20,0 knots |
|
Built |
2000 |
|
Keel laid |
17/12/1997 |
|
Launch date |
29/06/2000 |
|
Date of completion |
02/09/2000 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Hamburg Germany |
|
Yard number |
1175 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9L48/60 - 4 stroke 9 cylinder 480 x 600 mm combustion engine 9.450 kW / 12.848 hp at 500 rpm Manufacturer: MAN B&W Diesel GmbH Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 35,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 157,5 m² Year of manufacture: 1998 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH Justus-von-Liebig-Ring 4-6 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
1x Plant 380/ 220 V - 380 kVA 1x Plant 380/ 220 V - 380 kVA 1x Plant 380/ 220 V - 380 kVA 1x Plant 380 V - 1.250 kVA 1 xPlant 380 V - 430 kVA |
|
Shaft generator |
1x 1.000 kW / 1.250 kVA |
|
Generators |
3x Volvo Penta TAMD 163-A main diesel generatorsets each 304 kW |
|
Emergency generator |
1x Volvo Penta TAMD 163-A diesel generatorset 430 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 475 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS 750 kW / 1.020 hp, forward |
|
Number of holds |
1 Dimensions: 82,90 x 15,80 x 10,97 m |
|
Cargo hold capacity |
Bale: 13.604 m³ Grain: 14.000 m³ |
|
Number of hatches |
1 84,00 x 15,80 m |
|
Hatch cover |
MacGregor hydraulic operated combined folding type and lift and roll type |
|
Free deck space |
2.120 m² |
|
Tank capacities |
Ballast water: 3.979,10 m³ Gas oil: 214,22 m³ HFO: 1.093,29 m³ Fresh water: 123,99 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 530,50 m Diameter: 50 mm |
|
Cargo gear |
2x Cranes - SWL 320 t 1x Crane - SWL 200 t Combinable upto SWL 640 t Auxiliary hoist: 2x SWL 40 t 1x SWL 30 t |
|
Crew size |
22 |
|
Manager |
SAL Ship Management UG |
|
Previous managers |
2000 - 2004 MS "WIEBKE" Hans und Claus Heinrich KG 2004 - 2010 Lühe Engineering GmbH 2010 - 2011 SAL Heavy Lift Engineering GmbH 2011 SAL Heavy Lift GmbH (member of the “K” Line Group), Hamburg - germany |
|
Owner |
SAL Fleetholding I UG (haftungsbeschränkt) & Co. KG |
|
Previous owners |
|
|
Latest data adjustment |
11 Septelber 2023 |
