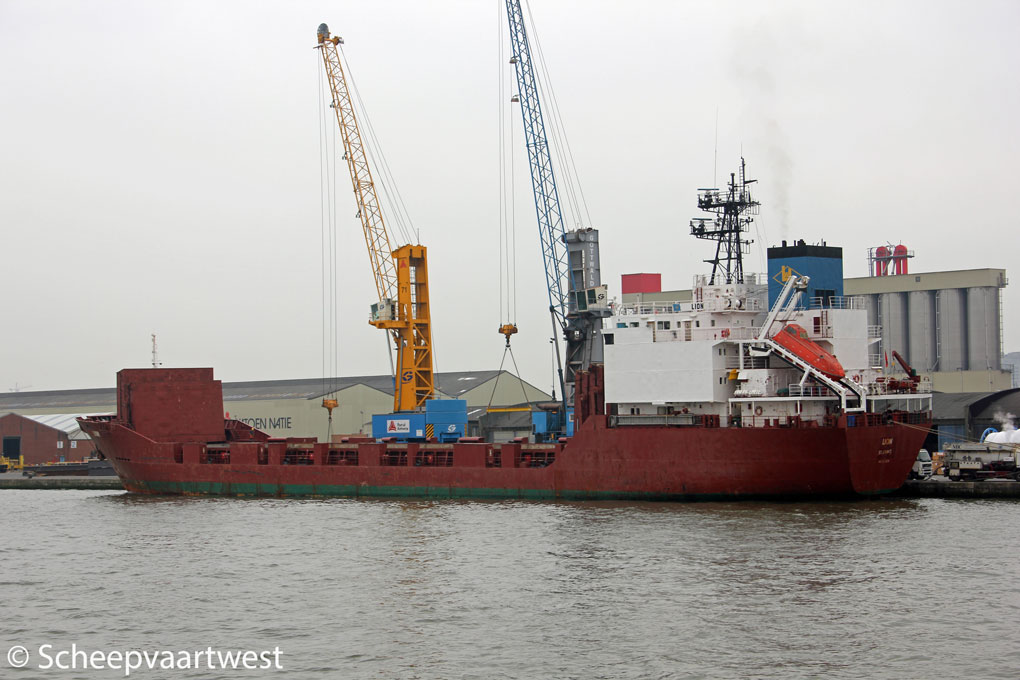

Lion 01
Antwerpen 05 July 2013



Lion 02
Antwerpen 05/07/13



Name

LION

Previous names

1994 - 1998 Donbass

1998 - 03.2011 Kalliope

Type

General cargo ship - Strengthened for heavy cargo

IMO-number

8872801

Call sign

V2FM6

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

5.624 t

DWT

7.158 t

NT

2.363 t

Number of 20ft containers

342

Length

109,70 m overall

100,81 m registered

Breadth

17,80 m registered

Draught

7,22 m

Forecastle

7,11 m

Poop

19,60 m

Depth

9,00 m moulded

Speed

12,0 knots

Built

1994

Keel laid

30.10.1990

Launch date

10.1993

Date of completion

27.03.1994

Builder

Severnaya Verf OAO
ul. Korabelnaya 6
198096 St. Petersburg
Russian Federation

Yard number

431

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x B&W-BMZ 6 DKRN 35/105 - 2 stroke 6 cylinder 350 x 1.050 mm diesel engine - 3.360 kW at 200 rpm

Manufacturer: Bryansk Engine Works

Bryansk
Russian Federation

Propellers

1x Solid propeller - aft

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 20,7 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 150,0 m²

Year of manufacture: 1992

Manufacturer: Aalborg Sunrod
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

3x Plants each 380/220 V - 400 kVA

1x Plant 380 V - 250 kVA

Generators

3x Main diesel generatorsets each 400 kVA

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 400 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 130 litres - 30,0 bar

1x Receiver 1.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 400 kW, forward

Number of holds

3

Number of hatches

1

Hatch 1: 64,80 x 12,80 m

Cargo capacity

Grain: 7.750 m³

Anchor equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Manager

L&L Shipping GmbH
Am Hohenwedel 133
21682 Stade
Federal Republic of Germany

Registered owner

MS "LION" Shipping GmbH & Co. KG
Am Hohenwedel 133
21682 Stade
Federal Republic of Germany

Last update

17 July 2013
