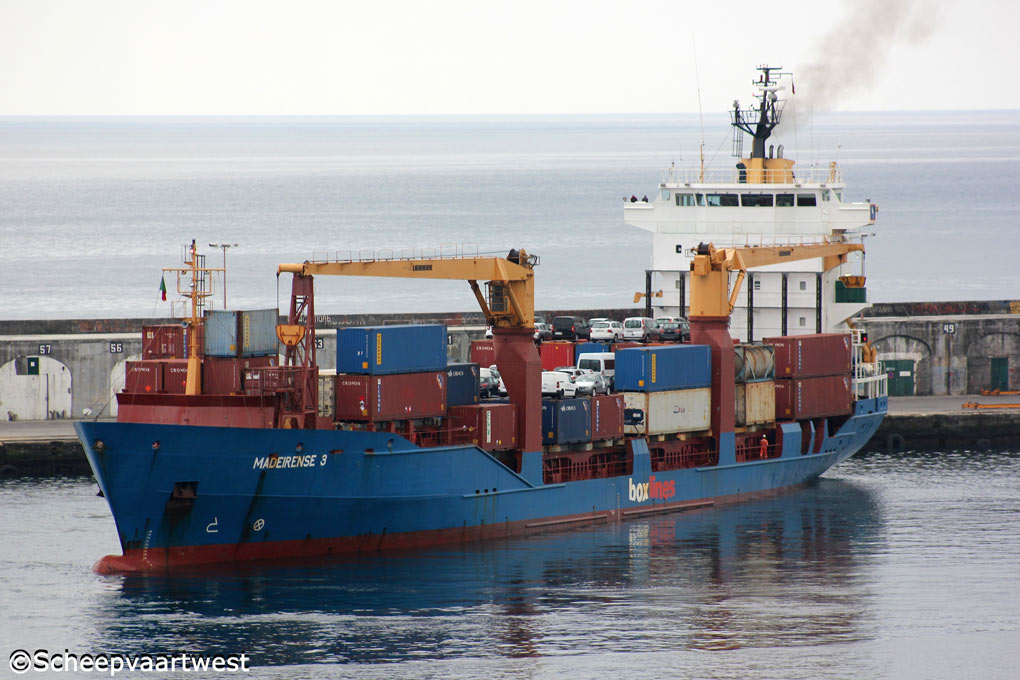

Madeirense 3 04
Ponta Delgada, Azores 15 June 2015

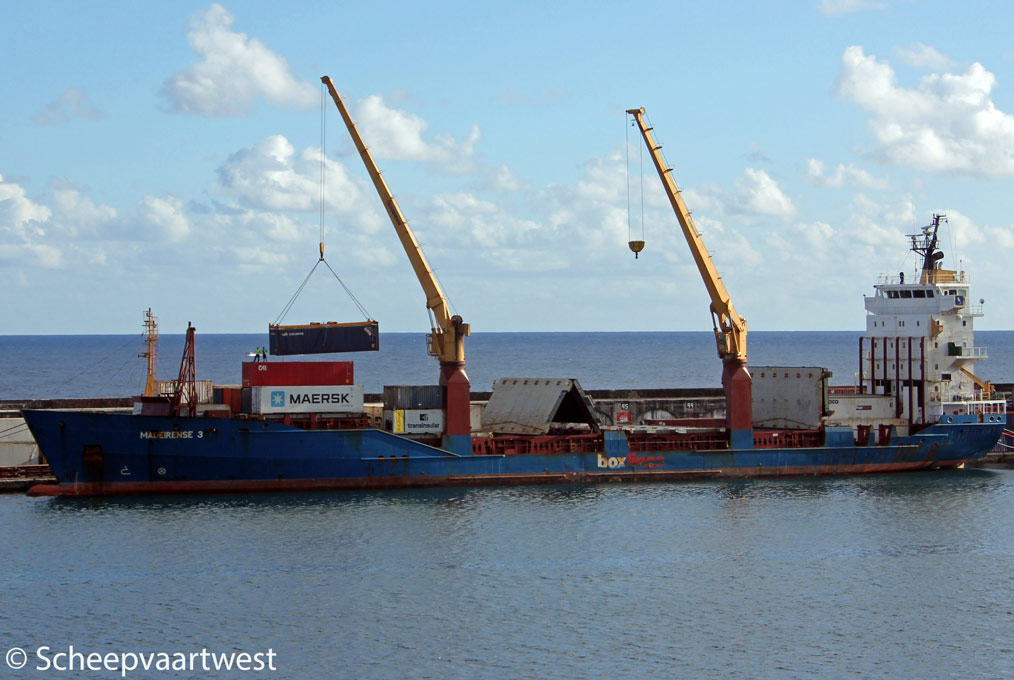

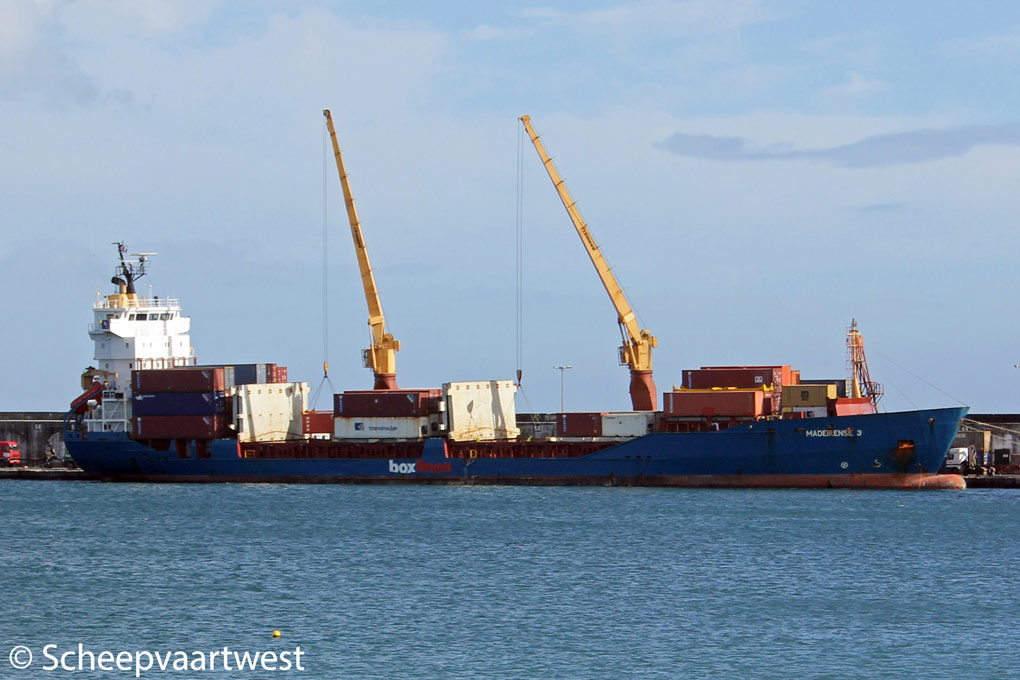

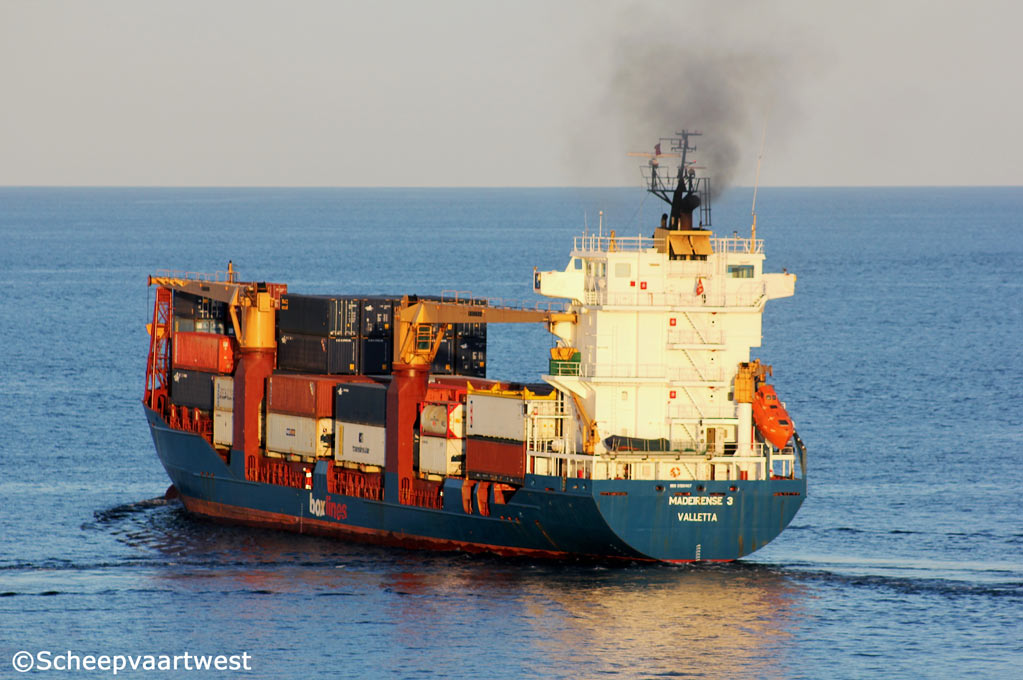

Madeirense 3 03   Madeirense 3 02   Madeirense 3 01
Ponta Delgada 05/06/15 Ponta Delgada 26/09/13 Ponta Delgada 23/09/13



Name

MADEIRENSE 3

Previous names

1996 - 09.2001 Stefan Sibum

09.2001 - 10.2003 Seaboard Ranger

10.2003 - 05.2004 CMA CGM Trinidad

05.2004 -11.2004 Stefan Sibum

11.2004 - 15.12. 2006 CMA CGM Caracas

15.12.2006 - 18.12.2006 Madeirense 3

18.12.2006 - 02.2007 CMA CGM Caracas

Type

Multi-purpose cargo ship - Strengthened for Heavy Cargo - Equipped for Carriage of Containers

IMO-number

9126467

Call sign

9HA3083

Flag

Malta

Port of registry

Valletta

Previous flags

1996 - 2001 Germany

2001 - 2004 Antigua & Barbuda

2004 - 2012 Portugal

GT

5.712 t

DWT

6.917 t

NT

2.649 t

Number of 20ft containers

591

Length

122,55 m overall

115,10 m between perpendiculars

115,61 m registered

Breadth

19,24 m overall

19,00 m registered

Draught

6,85 m

Forecastle

32,80 m

Poop

7,80 m

Freeboard

2.262 mm

Depth

9,10 m

Speed

17,5 knots

Built

1997

Keel laid

07.08.1995

Launch date

20.04.1996

Date of completion

12.1996

Builder

Selah Makine ve Gemicilik Endüstri Ticaret A.S.
Özel Sektör Tersaneleri Bölgesi Tersaneler Cad. No:4, Tuzla
34940 Istanbul
Turkey

Yard number

25

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN 6L48/60 - 4 stroke 6 cylinder 480 x 600 mm diesel engine - 6.300 kW at 500 rpm

Reduced power: 5.900 kW

Year of Manufacture: 1996

Manufacturer: MAN B&W Diesel GmbH
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 166 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0bar

Heating Surface: 101,0 m²

1x Thermal oil heater, oil fired

Heating Surface: 367,0 m²

Year of Manufacture: 1996

Manufacturer: WSA Wärmetechnik GmbH
Werner-von-Siemens-Str. 96
76694 Forst/Baden
Federal Republic of Germany

Electric installations

2x Plants 380/220 V - 610 kVA

1x Plant 380 V - 875 kVA

1x Plant 380 V - 200 kVA

Shaft generator

1x 875 kVA

Generators

2x 3412 DITA main diesel generatorsets each 610 kVA

Emergency generator

1x 3306 DIT diesel generatorset 200 kVA

Compressed air receivers

2x Receivers each 710 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 400 kW, forward

Tank capacities

Fuel: 707 m³

Ballast water: 2.411 m³

Anchor equipment

3x Anchors weight each 4050 kg

Chain Length: 522,50 m

Diameter: 50 mm

Cargo gear

2x Cranes - SWL 35,0 t each

Manager

Steer Mar Shipmanagement Services, Lda.
Largo dos Varadouros, 4-3
9000-503 Funchal
Portugal

Previous managers

1996 - 2006 Reederei Bernd Sibum GmbH & Co. KG

Registered owner

Box Lines Transportes Internacionais S.A.R.L.
70, Route d'Esch
1470 Luxenbourg
G.D. Luxembourg

Previous owners

1996 - 2006 MS "STEFAN SIBUM" Schiffahrts GmbH & Co. KG

2006 - 2012 Empresa de Navegacao Madeirense, Lda.

Renamed

2017 Levant Horizon - Republic of Panama, Panama City - Call sign: 3FML3

Owner: Middle East & North Africa Shipping Company S.A.

Manager: Levant Marine Group S.A.

Latest data adjustment

23 February 2017
