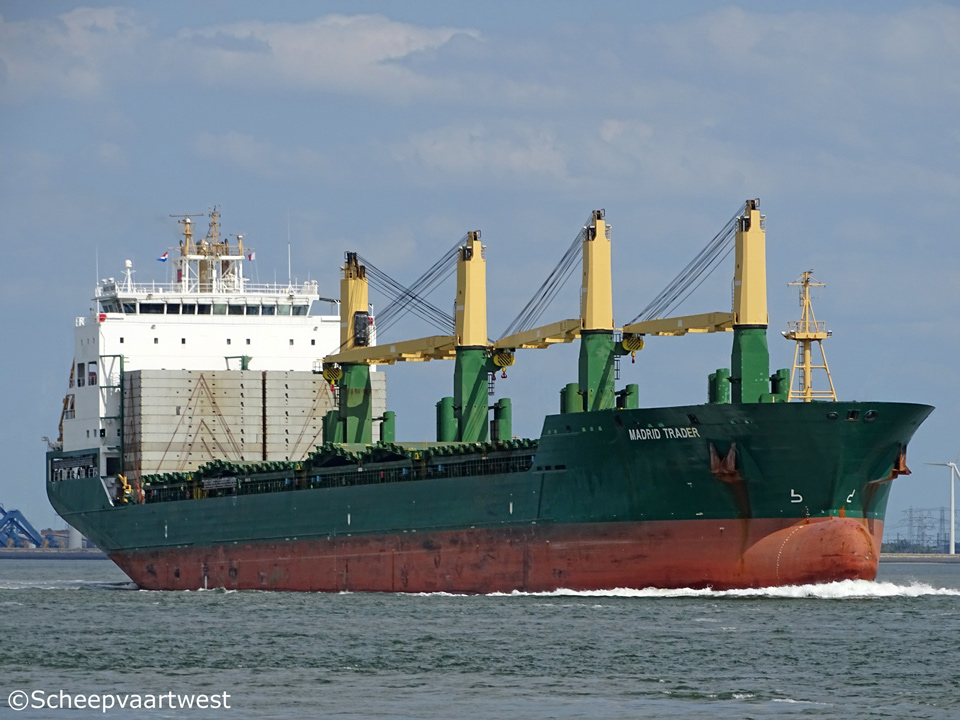

Madrid Trader 01

Westerschelde 21 July 2017

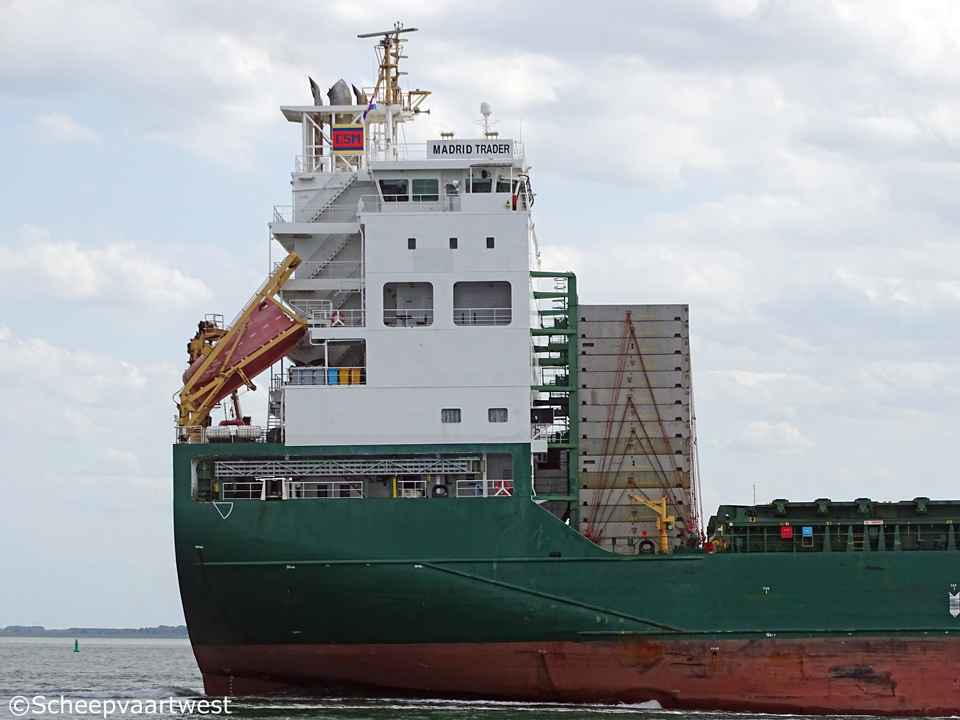

Madrid Trader 02
Westerschelde 21/06/17



Name

MADRID TRADER

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9594470

Call sign

A8ZP7

Flag

Liberia

Port of registry

Monrovia

Previous flags

2011 - 2011 Germany

GT

22.863 t

DWT

Summer: 32.900 t

NT

10.602

Number of 20ft containers

On deck: 484

In hold: 674

Total: 1.158

Number of 40ft containers

On deck: 218

In hold: 327
Total: 545

Container capacity 14t

545

Reefer capacity

30

Length

179,42 m overall

168,93 m between perpendiculars

Breadth

28,23 m extreme

Draught

10,80 m

Depth

15,10 m

Speed

15,0 knots

Built

2011

Keel laid

23.12.2008

Launch date

03.04.2011

Date of completion

25.08.2011

Builder

Zhejiang Ouhua Shipbuilding Co., Ltd.
Zhoushan
China

Yard number

581

Hull material

Shipbuilding steel (standard)

Hull type

Single hull partly double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MAN-B&W-STX 6S50MC-C7 - 2 stroke 6 cylinder diesel engine 8.800 kW at 127 rpm

Manufacturer: STX Engine Co., Ltd

Propellers

1x Fixed pitch propeller (keyless) 4 blades - aft at 127 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar
Heating surface: 50,0 m²
Heating surface: 340,0 m²

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd

Electric installations

1x Plant 400 V - 522.5 kVA
2x Plant 400 V - 627.5 kVA
1x Plant 400 V - 200 kVA
2x Plants each 24 V - 12 Ah
2x Plants each 24 V - 100 Ah
1x Plant 24 V - 200 Ah

Generators

2x MAN B&W 6L16/2 main generators, each 627,5 kVA

1x MAN B&W 5L16/24 main generator 522,5 kVA

Emergency generator

1x MAN D2866 LXE20 diesel generatorset 200 kVA

Batteries

1x Battery for start emergency engine 200 Ah
1x Battery for UPS navigation 150 Ah
2x Batteries for automation each 100 Ah
2x Batteries for automation each 12 Ah

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar
1x Receiver 250 litres - 30,0 bar
1x Receiver 2500 litres - 8,0 bar
1x Receiver 100 litres - 8,0 bar

Number of holds

5

Cargo hold capacity

Bale: 37.490 m³
Grain: 39.927 m³

Tank capacities

Heavy fuel oil: 2,049 m³
Gas oil: 126 m³
Fresh water: 171 m³

Ballast: 12.957 m³

Anchor equipment

3x Anchors weight each 8.300 kg

Length: 641,80 m

Diameter: 80 mm

Cargo gear

3x JIB cranes each 60.00 / 50.00 / 40.00 t
1x JIB cranes 60.00 / 50.00 / 40.00 t

Crew size

30

Manager

Columbia Shipmanagement (Deutschland) GmbH
Große Elbstraße 275
22767 Hamburg
Germany

Registered owner

Bruce M2 Schifffahrts UG

Latest data adjustment

28 September 2017
