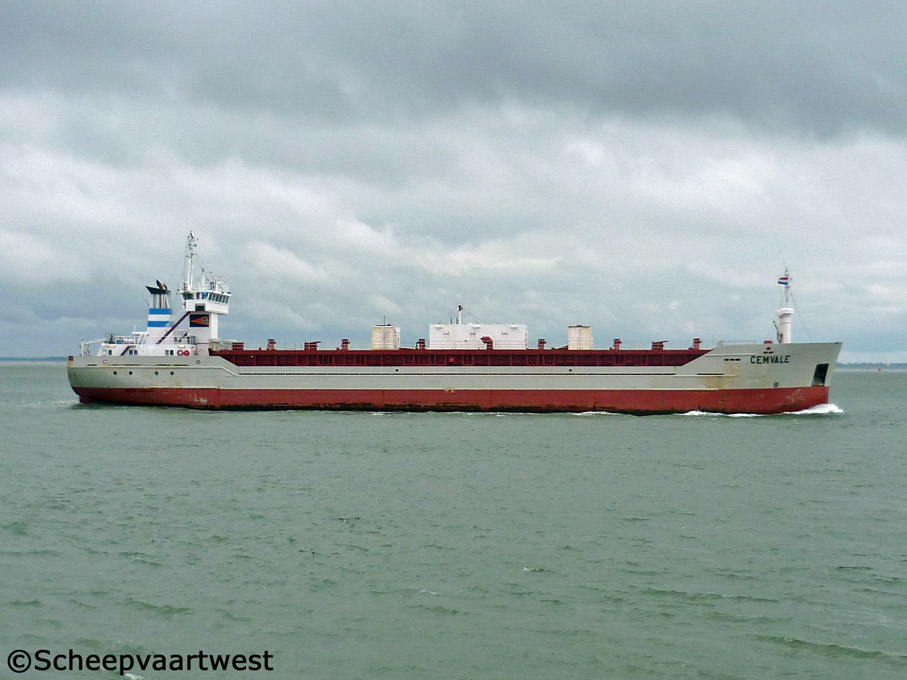

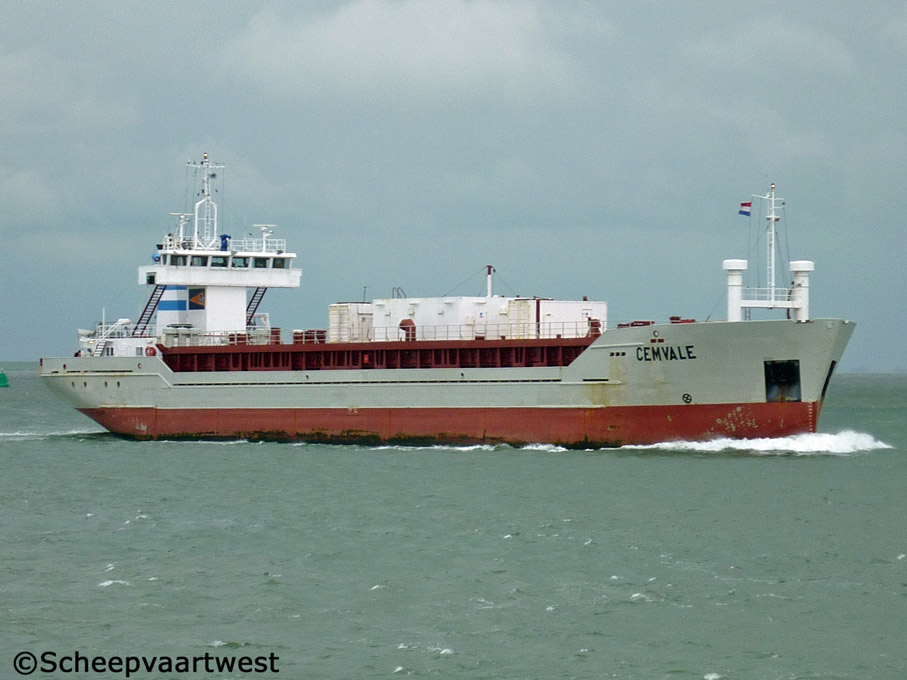

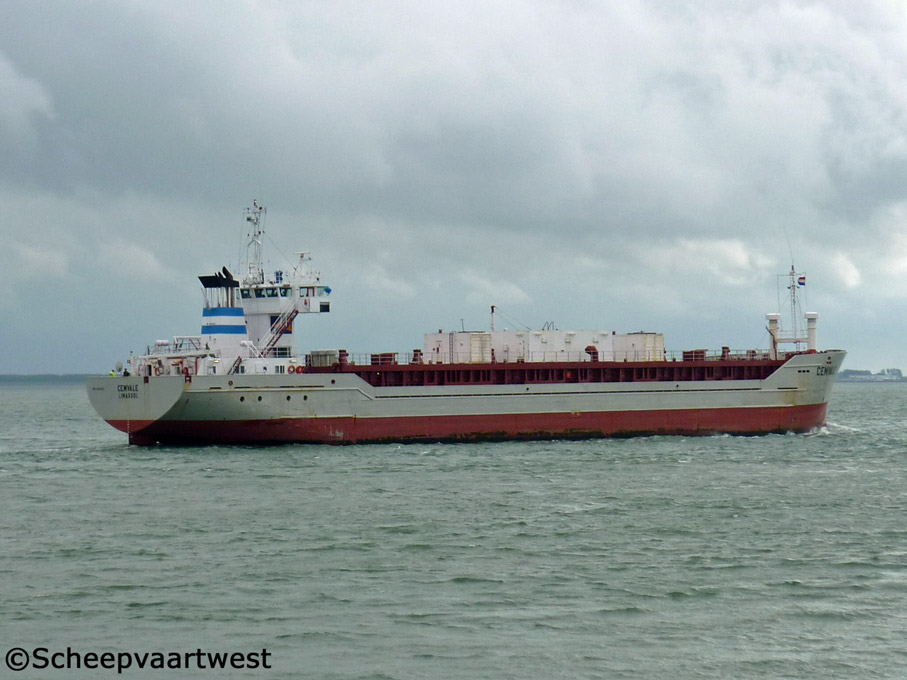

| Westerschelde 08 July 2012 |
 |
 |
|
| Westerschelde 08/07/12 | Westerschelde 08/07/12 |
|
Name |
CEMVALE |
|
Previous names |
1992 - 03.2006 Arklow Valley |
|
Type |
Cement carrier with pneumatic selfdischarging equipment |
|
IMO-number |
9048287 |
|
Call sign |
C4JW2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
2.894 t |
|
DWT |
Summer: 4.257 t |
|
NT |
1.257 t |
|
Number of 20ft containers |
173 |
|
Length |
88,20 m overall 84,99 m registered |
|
Breadth |
13,60 m registered |
|
Draught |
6,10 m |
|
Air draft |
17,50 m in ballast |
|
Forecastle |
8,49 m |
|
Poop |
16,50 m |
|
Depth |
7,70 m |
|
Speed |
10,5 knots |
|
Built |
1992 Conversion: 05.2006 Poltramp Service, Szczecin - Poland |
|
Keel laid |
29.01.1991 |
|
Launch date |
29.08.1991 |
|
Date of completion |
10.1992 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH |
|
Yard number |
639 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x Krupp MaK 8M332 - 4 stroke 8 cylinder 240 x 330 mm diesel engine - 1.300 kW at 750 rpm Year of manufacture: 1992 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Solid propeller - aft at 171 rpm |
|
Boilers |
1x Water heater, oil fired - 2,5 bar Year of manufacture: 1992 |
|
Electric installations |
3x Plants each 400/220 V - 120 kVA 1x Plant 400 V - 31 kVA |
|
Generators |
3x DAF DK 1160 main diesel generatorsets each 120 kVA |
|
Emergency generator |
1x Diesel generatorset 31 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Bow thruster Snijder Hasselt - 220 kW, forward |
|
Number of hold |
2 Hold 1: 2.285 m³ Hold 2: 2.315 m³ |
|
Cargo capacity |
Grain & bales: 5665 m³ |
|
Loading equipment |
By gravity via 6 (3 each hold) separate inlets (600 mm diam.) or by pneumatic loading via 12 (6 each hold) ‘STORTZ’ couplings (100 mm / 4“) for loading from trucks/wagons or two 150 mm hoses in two positions with DIN flanges |
|
Discharging equipment |
By pneumatic discharge at an average of 150 t/hour to shore-connections, via one 10” or 12” outlet pipe, placed amidships on portside |
|
Tank capacities |
Gas oil: 72 m³ Ballast water: 1.827 m³ Fresh water: 21 m³ |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m |
|
Manager |
Brise Bereederungs GmbH & Co. KG |
|
Registered owner |
Hilmo Shipping Co. Ltd. |
|
Last data update |
01 January 2014 |
