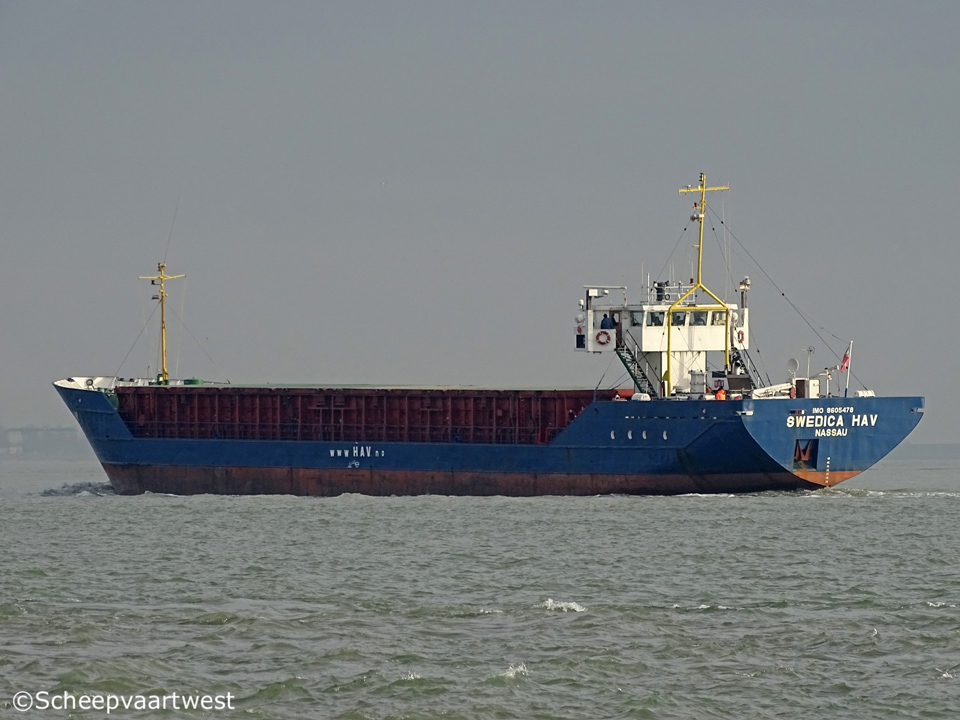

| Westerschelde 19 January 2018 |
 |
 |
 |
 |
 |
||||

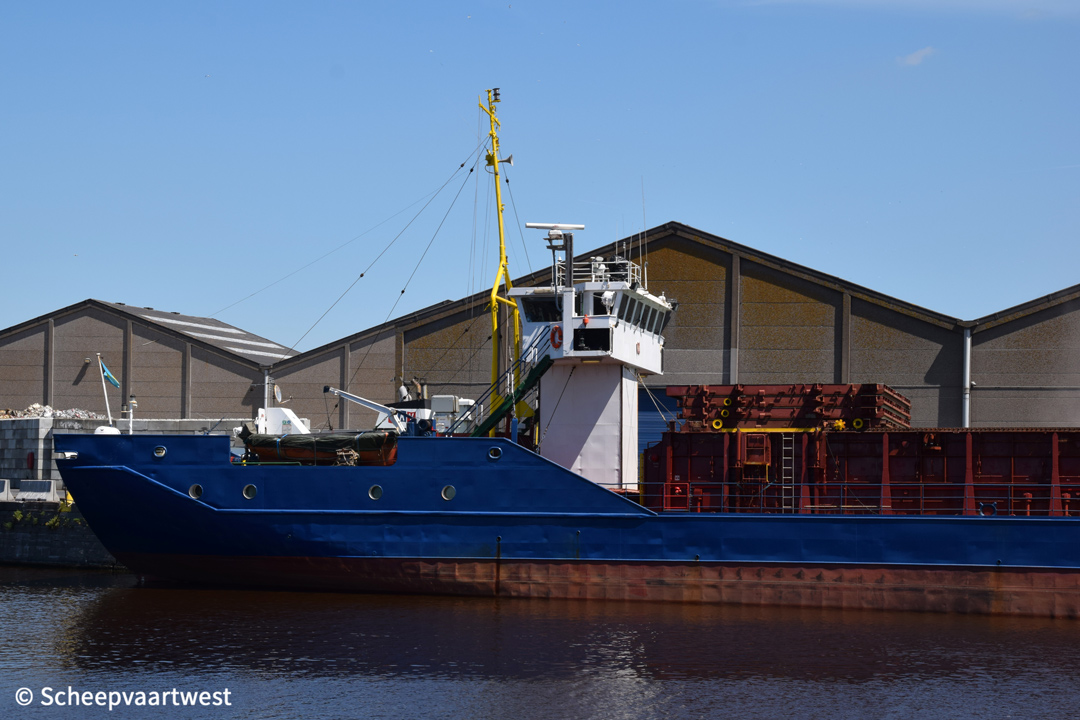

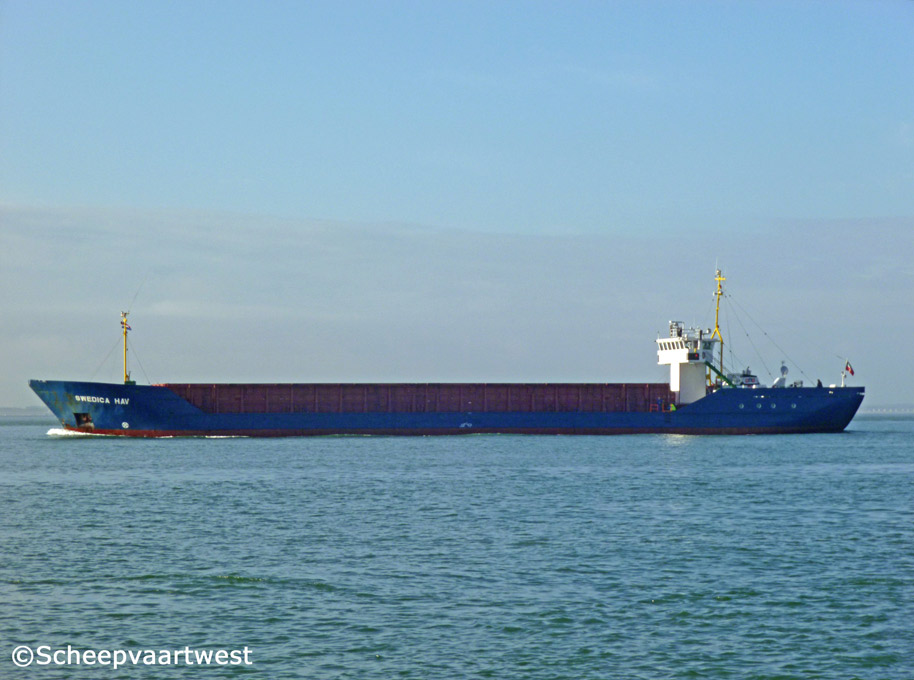

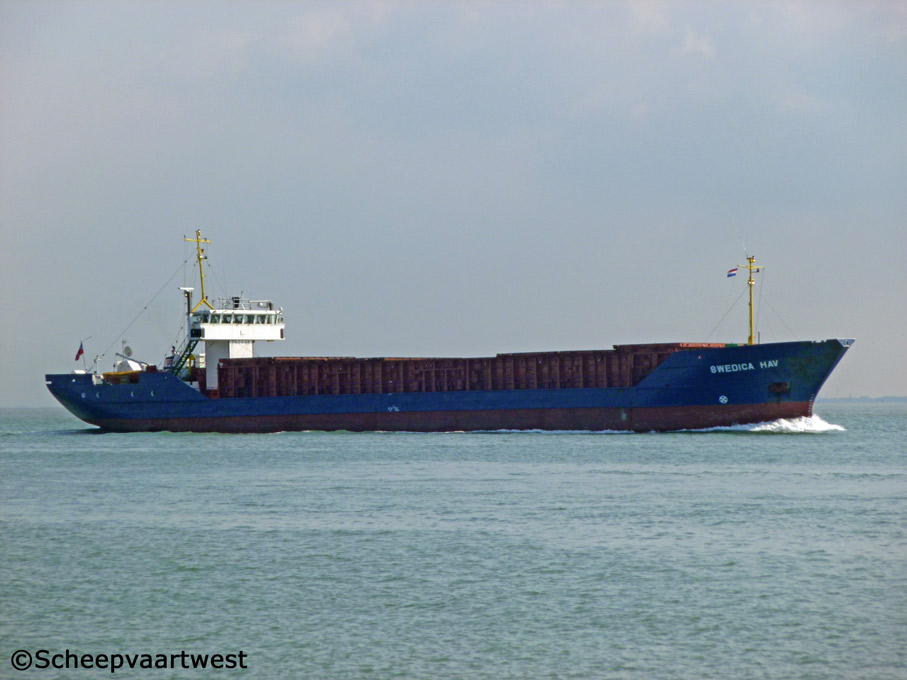

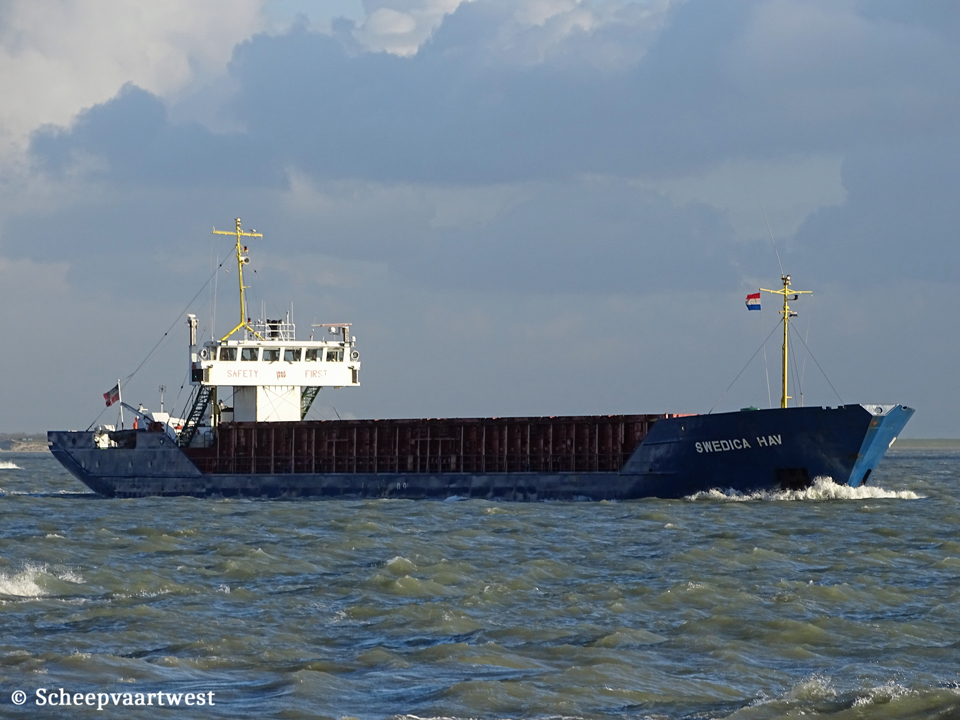

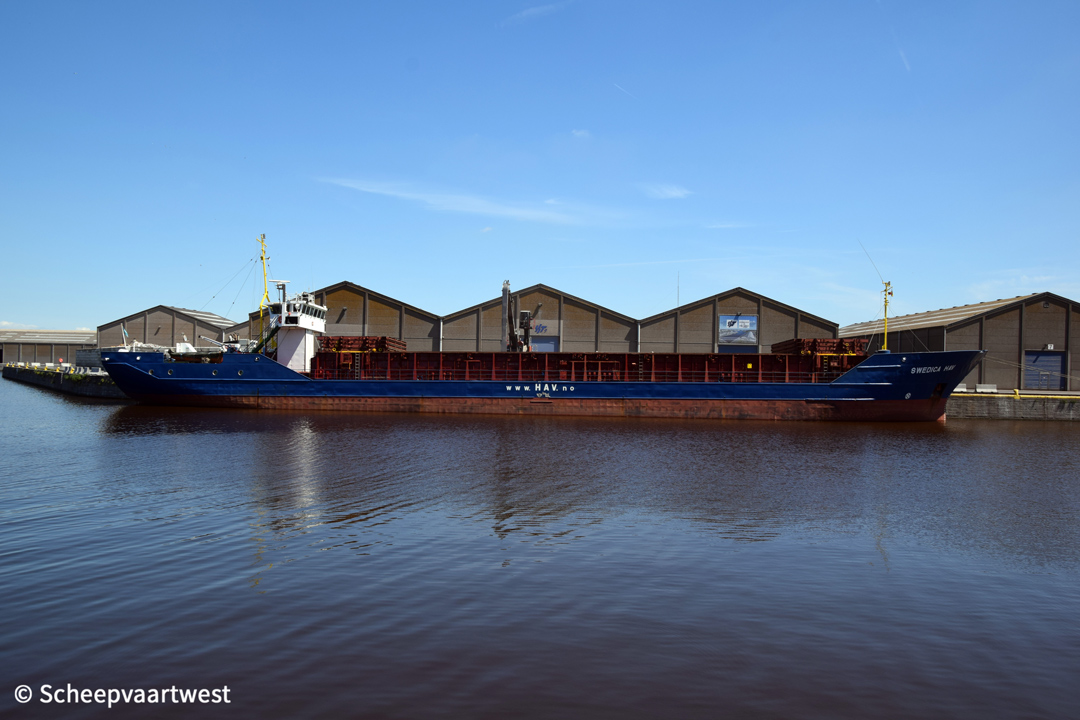

| Westerschelde 05/10/13 | Westerschelde 05/10/13 | Westerschelde 19/12/17 | Brugge, Blegium 13/07/20 | Brugge, Belgium 13/07/20 | ||||
|
Name |
SWEDICA HAV |
|
Previous names |
1986 - 03/1997 Jan Meeder 1997 - 07/2002 Sea Weser 2002 - 09/2006 Ophir |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Rhine / Seine / Saimaa fitted |
|
IMO-number |
8605478 |
|
Call sign |
C6VU6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
1.616 t |
|
DWT |
2.272 t |
|
DWCC |
Summer: 2.170 t Winter: 2.090 t |
|
NT |
758 t |
|
Number of 20ft containers |
In hold: 48 On hatches: 32 Total: 80 |
|
Length |
82,42 m overall 76,80 m between perpendiculars |
|
Breadth |
11,30 m extreme |
|
Draught |
4,22 m |
|
Air draft |
19,00 m in heavy ballast |
|
Keel to top with antenna |
21,80 m |
|
Forecastle |
9,55 m |
|
Poop |
12,60 m |
|
Depth |
5,40 m moulded |
|
Speed |
Max: 10,6 knots Service: 9,5 knots |
|
Built |
1986 |
|
Keel laid |
06/12/1985 |
|
Launch date |
26/03/1986 |
|
Date of completion |
03/05/1986 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH 25599 Wewelsfleth Federal Republic of Germany |
|
Yard number |
622 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x MWM TBD440-6K - 4 stroke 6 cylinder 230 x 270 mm combustion engine 646 kW / 877 hp at 800 rpm Build: 1986 Year of manufacture: 1986 Manufacturer: Motoren-Werke Mannheim AG Carl-Benz-Str. 5 68167 Mannheim Federal Republic of Germany |
|
Propellers |
1x Solid propeller - aft at 279 rpm right handed |
|
Electric installations |
1x Plant 400/230 V - 210 kVA 1x Plant 400 V - 57 kVA 1x Plant 400 V - 80 kVA |
|
Shaft generator |
1x 57 kVA |
|
Generators |
1x MWM TBD 234V main diesel generatorset 210 kVA - 168 kW - 247 hp 1x MWM TD 226-6 harbour diesel generatorset 80 kVA - 64 kW - 102 hp |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 132 kW, forward |
|
Number of holds
|
1 43,80 x 9,00 x 6,78 m Total length of hold: 48,70 m |
|
Cargo hold capacity |
Grain: 2.953 m³ / 104.000 ft³ Bales: 2.945 m³ / 103.000 ft³ |
|
Timbre capacity |
2.800 m³ |
|
Hold ventilation |
6x Air changes/hours |
|
Number of hatches |
1 50,00 x 9,30 m |
|
Hatch type |
MacGregor |
|
Max permitted loads |
Hatch covers: 1,5 t/m² Tanktop: 11,0 t/m² |
|
Tank capacities |
Water ballast: 1.007 m³ Gas oil: 106 m³ Fresh water: 21,2 m³ |
|
Anchor equipment |
3x Anchors weight each 1.290 kg Chain length: 385,00 m Diameter: 30 mm |
|
Manager |
HAV Ship Management NorRus AS Office 411 Teatralnaya ul. 35 236006 Kaliningrad Russian Federation |
|
Registered owner |
HAV Bulk AS Filipstadveien 5 0260 Nesttun Norway |
|
Latest data adjustment |
05 June 2024 |
