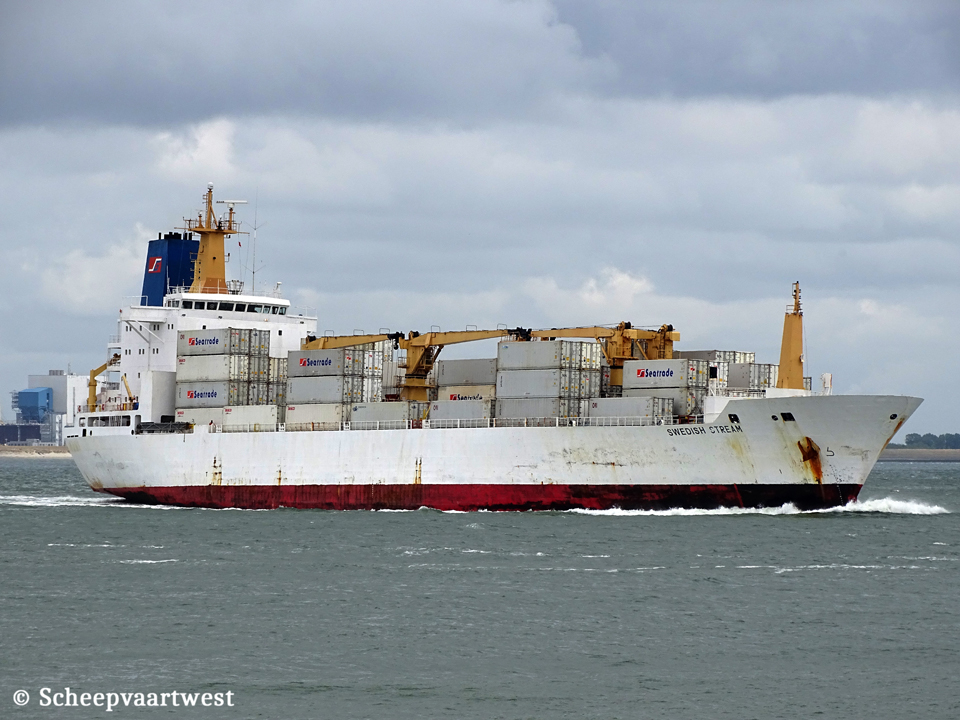

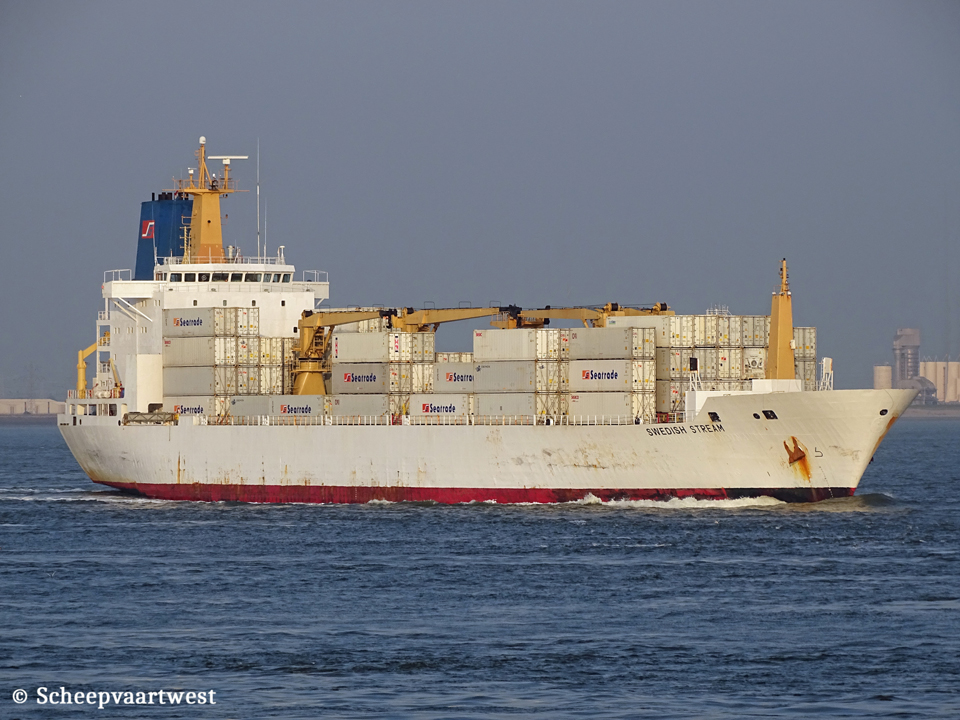

Westerschelde 04 June 2020 |
 |
 |
 |
||

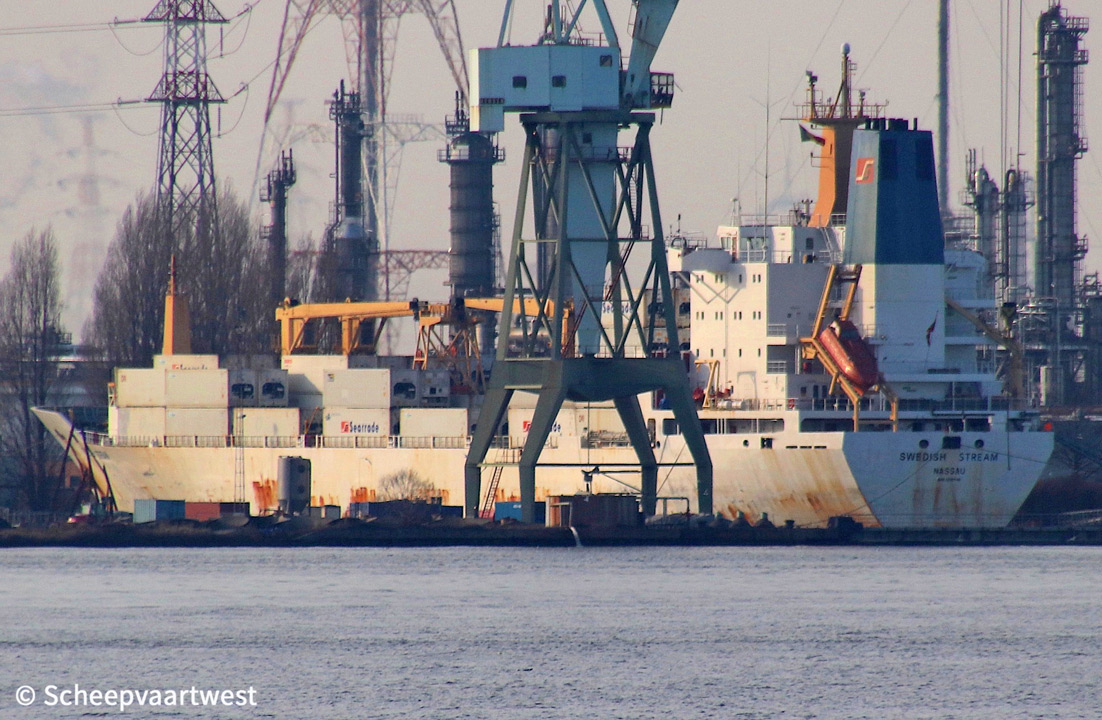

| Antwerpen 18/12/19 | Westerschelde 23/04/20 | Westerschelde 23/04/20 | ||
|
Name |
SWEDISH STREAM |
|
Previous names |
1992 - 07/2014 Chiquita Scandinavia 07/2014 - 2019 Swedish Reefer |
|
Type |
General and refrigerated cargo vessel |
|
IMO-number |
9030149 |
|
Call sign |
C6KD4 |
|
Flag |
Commonwealth of the Bahamas |
|
Port of registry |
Nassau |
|
GT |
13.049 t registered Suez: 14.162 t Panama: 14.154 t |
|
DWT |
Summer: 12.273 t Winter: 11.700 t |
|
NT |
5.353 t Suez: 10.958,59 t Panama: 10.887 t |
|
Number of 20ft containers |
439 |
|
Reefer plug |
147 |
|
Length |
158,13 m overall 144,99 m between perpendiculars |
|
Breadth |
24,39 m moulded |
|
Draught |
Summer: 10,02 m Winter: 9,81 m |
|
Keel to mast end |
45,58 m |
|
Freeboard |
2.807 mm |
|
Depth |
15,70 m |
|
Speed |
22,0 knots |
|
Built |
1992 |
|
Keel laid |
01/04/1992 |
|
Launch date |
24/07/1992 |
|
Date of completion |
30/11/1992 |
|
Builder |
Danyard A/S Frederikshavn Denmark |
|
Yard number |
714 |
|
Hull material |
Ordinary strength steel |
|
Watertight compartments |
7 |
|
Main engine |
1x Kawasaki/B&W 8SC60MC - 2 stroke 8 cylinders 600 x 2.292 mm combustion engine 14.960 kW / 20.326 hp at 102,0 rpm Build: 11/1992 Manufacturer name: Kawasaki Heavy Industries Co., Ltd., Kobe - Japan |
|
Propellers |
1x Screw propeller solid - aft at 102,0 rpm |
|
Boilers |
1x CHR Aalborg boilers 980,00 m² - 10,0 bar 1x CHM Aalborg boilers 48,00 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 1250 kVA - 1000 kW - 1359 hp 2x Main diesel generatorsets each2000 kVA - 1600 kW - 2174 hp |
|
Emergency generator |
1x Diesel generatorset 195 kVA - 156 kW - 235 hp |
|
Bow thruster |
1x 1.000 kW |
|
Number of holds |
4 |
|
Total capacity of holds |
Hold 1: 93.170 ft³ Hold 2: 176.198 ft³ Hold 3: 187.421 ft³ Hold 4: 188.797 ft³ Total: 645.486 ft³ / 18.275 m³ |
|
Hold surface |
Hold 1: 965 m² Hold 2: 2.074 m² Hold 3: 2.260 m² Hold:4: 2.266 m² Total: 7.565 m³ |
|
Pallets |
8.611 |
|
Number of hatches |
4 |
|
Number of compartments |
18 |
|
Reefer capacity |
17.303 m³ |
|
Number of tanks |
Fuel oil: 12 Water ballast: 9 Lubricating oil: 8 Fresh water: 4 Diesel oil: 4 Slop: 2 Fixed ballast liquid: 2 Sludge: 2 Thermal oil: 1 Chain: 1 Waste water: 1 |
|
Tank capacities |
Fuel oil: 2.083 m³ Fresh water: 352 m³ Tank ballast: 2.598 m³ |
|
Lifting equipment |
2x Cranes - SWL 36,57 t each 2x Cranes - SWL 20,0 t each |
|
ISM & commercial manager |
Seatrade Groningen B.V. Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Registered owner |
Swedish Stream Shipping Company Ltd. Care of Seatrade Groningen BV Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Latest data adjustment |
29 June 2022 |
