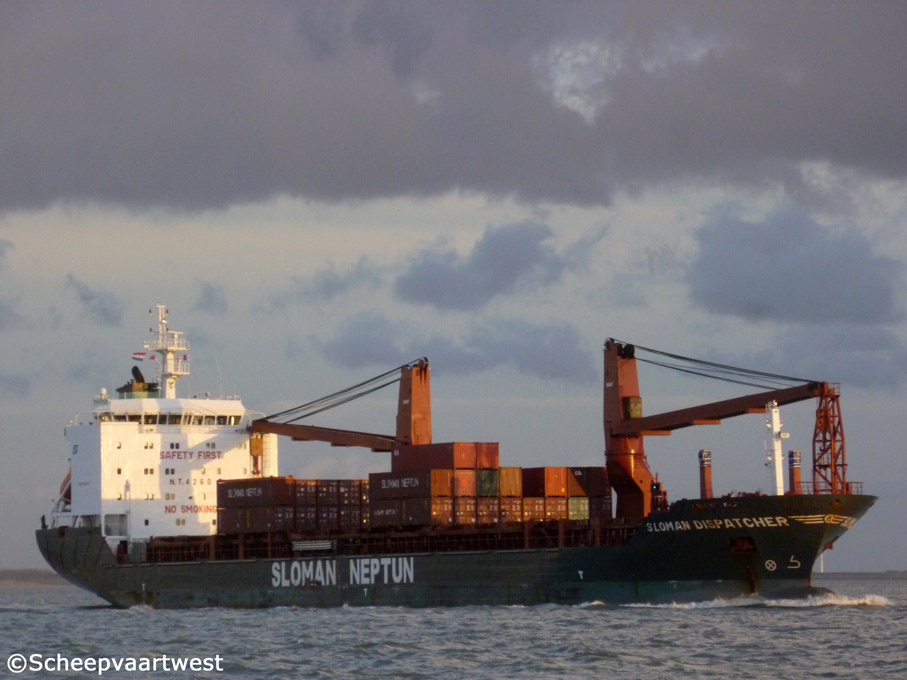

Westerschelde 03 June 2019 |
 |
 |
 |
 |
 |
||||

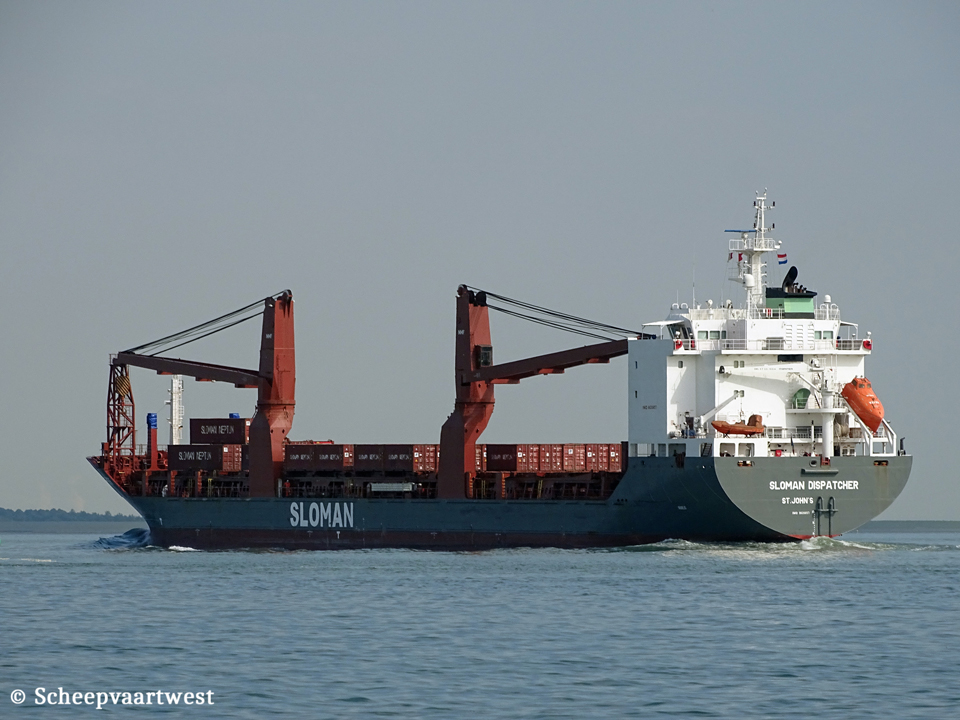

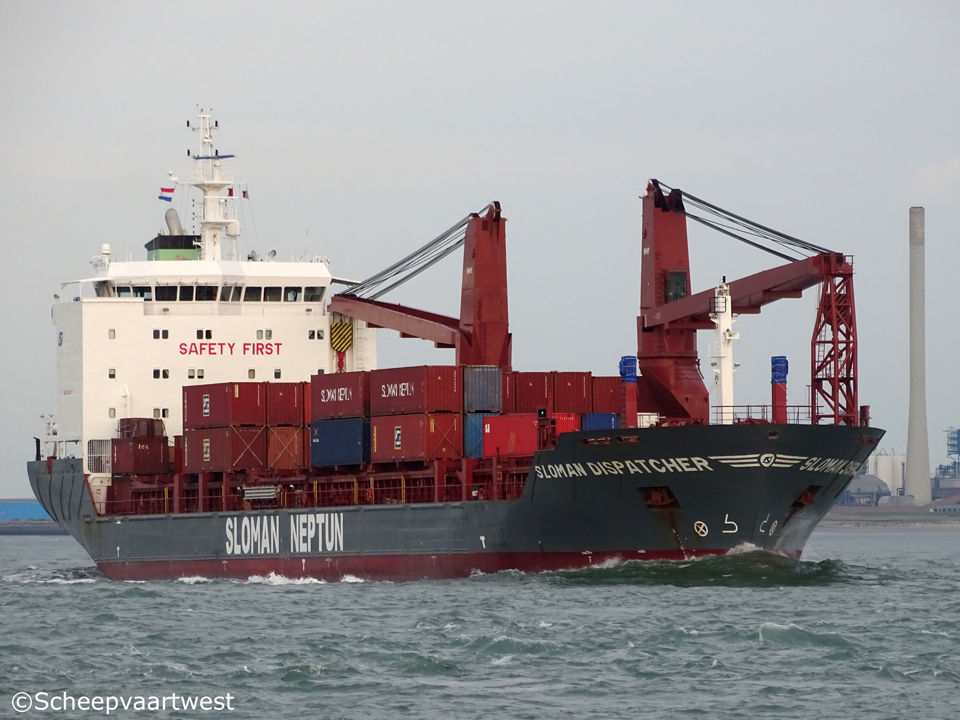

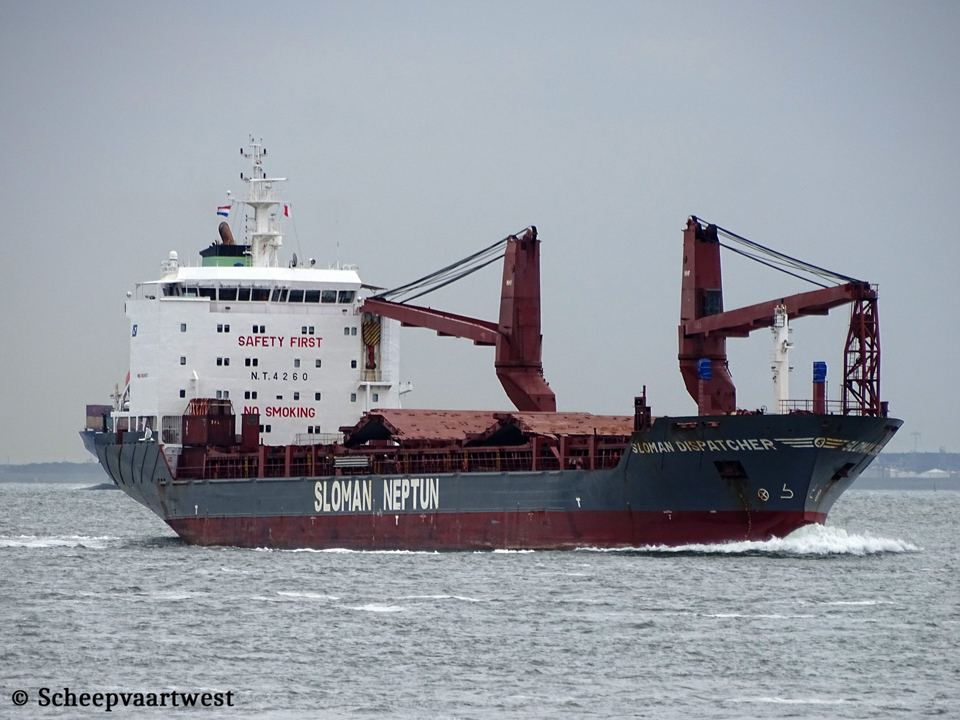

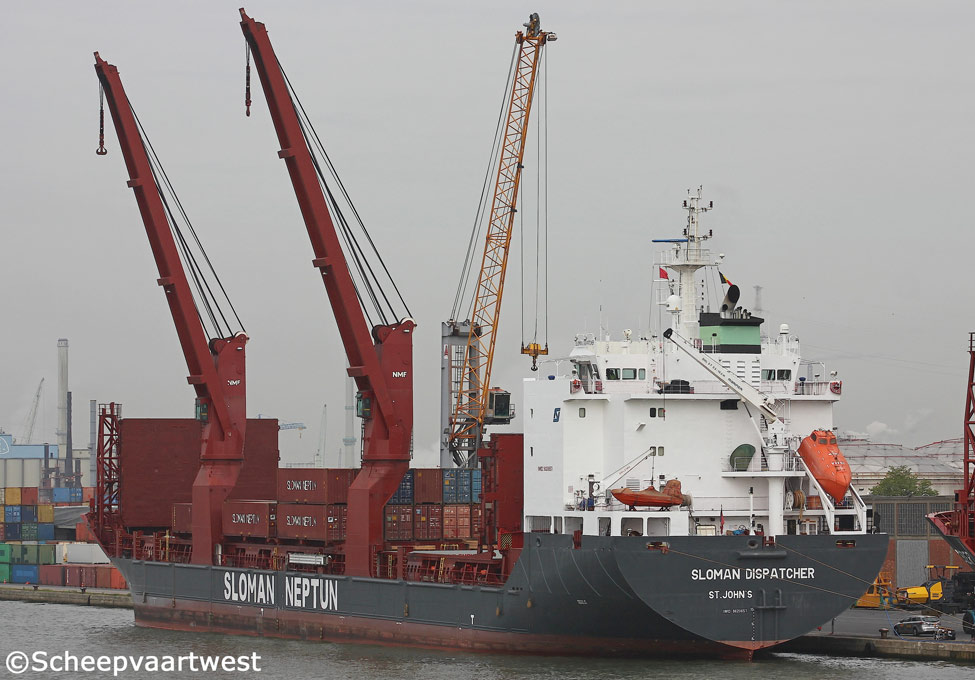

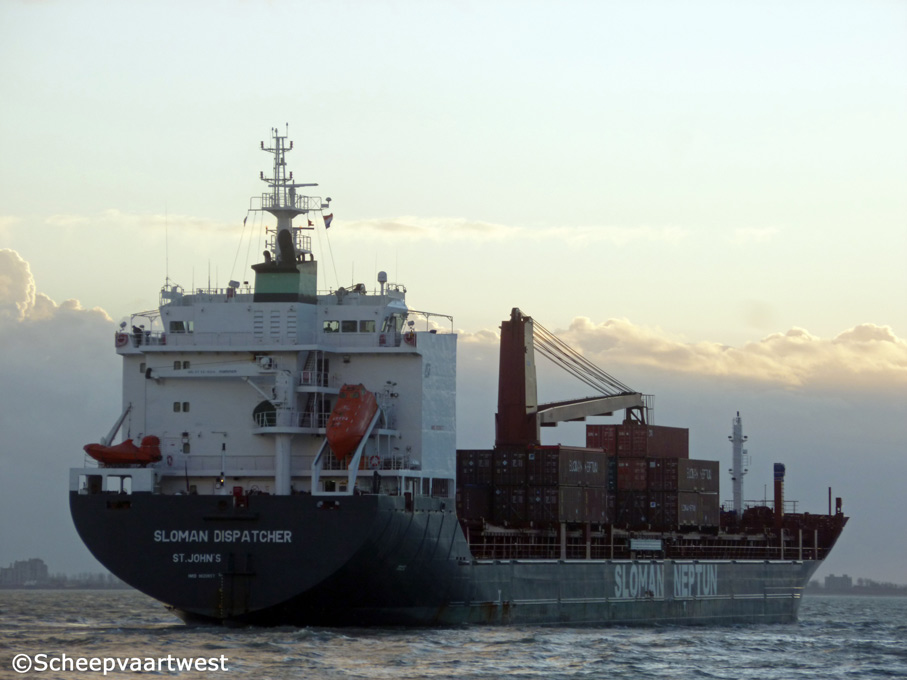

| Westerschelde 08/02/14 | Westerschelde 08/02/14 | Antwerpen 22/05/15 | Westerschelde 20/09/17 | Westerschelde 22/08/17 | ||||
|
Name |
SLOMAN DISPATCHER |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9620657 |
|
Call sign |
V2FO3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
9.611 t |
|
DWT |
Summer: 12.634,2 t |
|
NT |
4.260 t |
|
Number containers |
In hold: 331 On deck: 326 Total: 657 |
|
Container capacity 14t |
516 |
|
Reefer capacity |
25 sockets – 25 reefers Max. 50 reefers via splitters |
|
Length |
138,01 m overall 130,71 m between perpendiculars |
|
Breadth |
21,36 m extreme 21,00 m moulded |
|
Draught |
8,00 m |
|
Keel to to mast |
39,40 m |
|
Depth |
11,00 m moulded |
|
Speed |
15,0 knots |
|
Built |
2012 |
|
Keel laid |
20/11/2008 |
|
Launch date |
15/10/2011 |
|
Date of completion |
20/04/2012 |
|
Builder |
Jiangzhou Union Shipbuilding Co. Ltd. Rui Chang China |
|
Yard number |
JZ1041 |
|
Hull material |
Steel |
|
Main engine |
1xMaK 6M43 - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.340 hp at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
700 kW |
|
Generators |
3x MAN D2840 LE 301 main diesel generatorsets |
|
Emergency generator |
1x MAN D2866 E diesel generatorset |
|
Bow thruster |
500 kW |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain: 15.953 m³ Bale: 14.856 m³ |
|
Number of hatches |
3 |
|
Hatch cover type |
Hydraulic folding |
|
Tween deck pontoons |
14x Removable pontoons Adjustable in three position in hold #2 (can be used as bulkheads) |
|
Hatch cover surface |
1.462 m² |
|
Tween deck surface |
1.424 m² |
|
Lower hold surface |
2.420 m² |
|
Max permitted loads |
Tanktop: 16,0 t/m² T/D #1 and # 2 upper: 2,5 t/m² T/D #2 mid/low and #3: 4,0 t/m² Hatch covers: 1,75 t/m² |
|
Cargo gear |
2x NMT deck cranes - SWL 150,0 t each Combinable up to 300 t Load/Outreach: 150 t / 4,5-16,0 m 120 t / 4,5-19,0 m 95 t / 4,0-24,0 m 70 t / 3,5-33,0 m |
|
Tank capacities |
Heavy fuel oil: 860 m Martine gas oil: 125 m³ Lub oil: 56 m³ Fresh water: 120 m³ Ballast: 5.001 m³ |
|
Anchor equipment |
Length: 545,00 m Diameter: 52 mm |
|
Crew |
20 |
|
ISM & commercial manager |
Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstraße 44 28195 Bremen Germany |
|
Operator |
Sloman Neptun Shipping & transport GmbH |
|
Register owner |
Sloman Neptun Schiffahrts-Aktiengesellschaft |
|
Latest data adjustment |
09 October 2021 |
