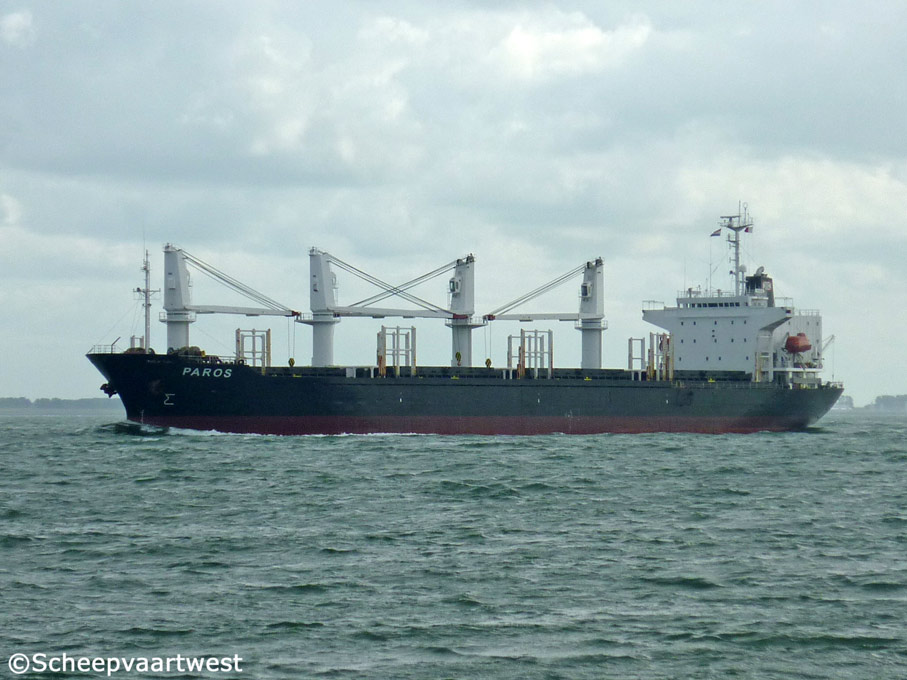

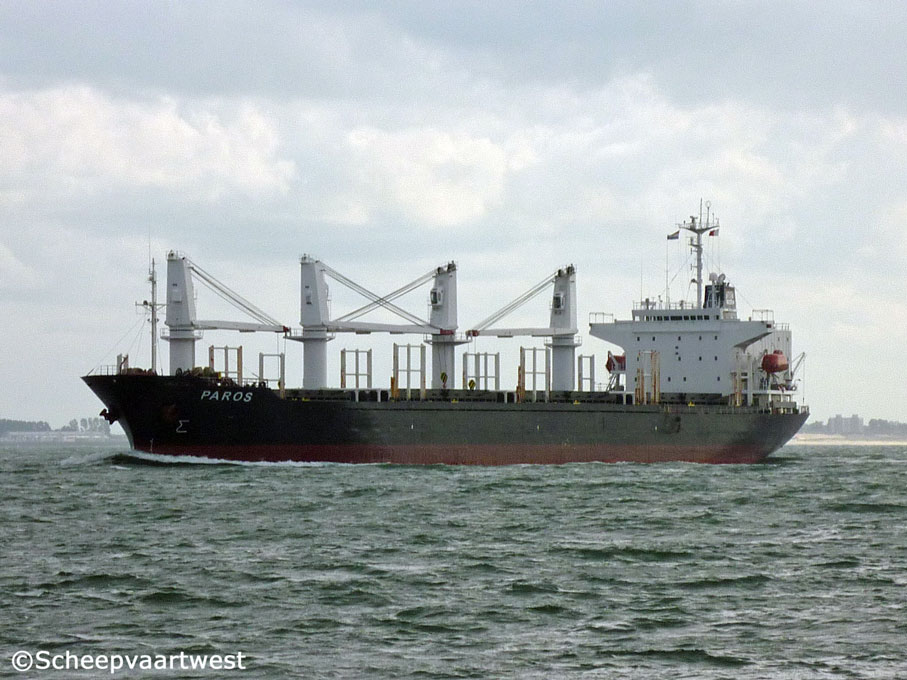

Westerschelde 13 July 2012 |
 |
| Westerschelde13/07/12 |
|
Name |
PAROS |
|
Previous names |
1997 - 2003 Pacific Bridge |
|
Type |
Bulk / lumber carrier - Single deck |
|
IMO-number |
9138458 |
|
Call sign |
A8VC2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
14.397 t |
|
DWT |
Summer: 23.984 t |
|
NT |
8.314 t |
|
Length |
153,50 m overall |
|
Breadth |
25,80 m moulded |
|
Draught |
Summer: 9,55 m |
|
Moulded L x B x D |
146,00 x 25,80 x 13,30 m |
|
Registered L x B x D |
146,75 x 25,80 x 13,30 m |
|
Freeboard |
3.785 mm |
|
Depth |
13,30 m moulded |
|
Speed |
Service: 14,0 knots Max.: 16,2 knots |
|
Built |
1997 |
|
Keel laid |
10.01.1997 |
|
Launch date |
08.03.1997 |
|
Date of completion |
10.06.1997 |
|
Builder |
Kanda Shipbuilding Co., Ltd. |
|
Yard number |
377 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi-Akasaka 6UEC45LA - 2 stroke single acting 6 cylinder 450 x 1.350 mm diesel engine - 5.295 kW at 158,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 1,90 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Shaft generator |
1x Oil lubrication shaft without monitoring device Diameter: 400 mm |
|
Generators |
3x Generators each 1.100 kVA |
|
Number of holds |
4 No 1: 28,75 x 4,15 / 19,20 x 11,80 m No 2: 28,05 x 19,25 x 11,80 m No 3: 28,05 x 19,25 x 11,80 m No 4: 28,75 x 19,25 / 8,15 x 11,80 m |
|
Cargo capacity |
Grain / Bale: Hold 1: 241.159 / 233.001 ft³ Hold 2: 292.258 / 281.558 ft³ Hold 3 292.364 / 281.770 ft³ Hold 4:272.518 / 266.656 ft³ Total: 1.098.299 / 1.062.985 ft³ |
|
Number of hatches |
4 No. 1: 20,00 x 12,80 m No. 2: 20,00 x 17,60 m No. 3: 20,00 x 17,60 m No. 4: 20,00 x 17,60 m |
|
Type of hatchcovers |
Hydraulic folding type |
|
Tanktop strength |
15,0 t/m² |
|
Ventilation |
Mechanical |
|
Tank capacities |
Fuel oil: 1.125 m³ Fresh water: 218 m³ Water ballast: 7.925 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 each |
|
Manager |
Aug. Bolten WM. Miller'S Nachfolger GMBH & CO., KG |
|
Registered owner |
(Bareboat Charterer) Paros Shipping and Trading Corporation |
|
Latest data adjustment |
26 march 2014 |
