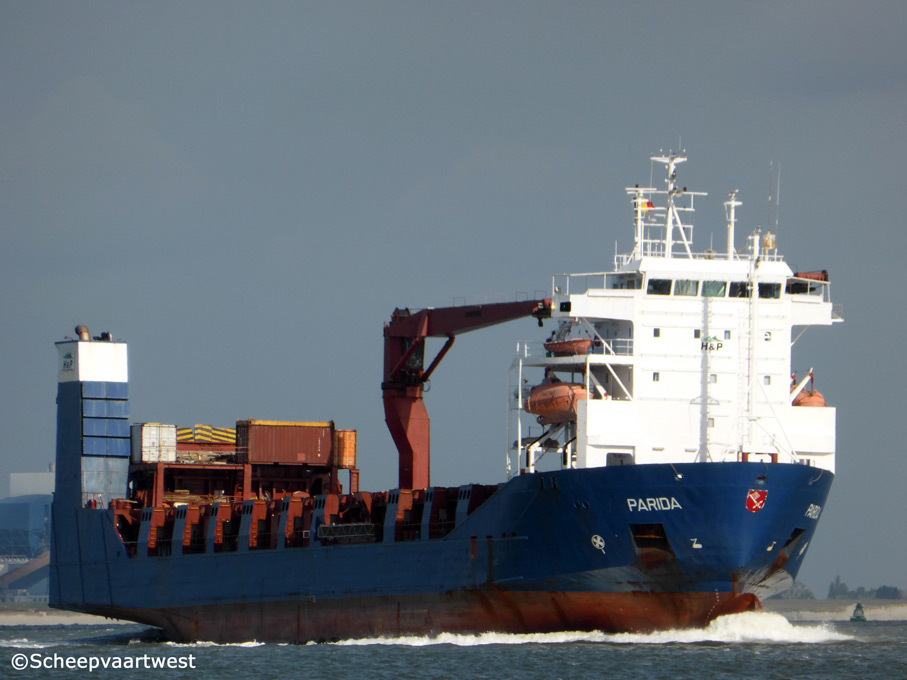

Westerschelde 02 May 2014 |
|
Name |
PARIDA |
|
Previous names |
1999 - 03.2004 Parida 2004 - 01.2011 Korsoer 2011 - 02.2013 CFS Parida |
|
Type |
Roll-On/Roll-Off carrier - Equipped for carriage of container Heavy lift carrier |
|
IMO-number |
9159933 |
|
Call sign |
OWMG2 |
|
Flag |
Denmark |
|
Previous flags |
1999 - 2009 Antigua and Barbuda 2009 - 2012 Germany 2012 - 2013 Jamaica |
|
Port of registry |
Korsør |
|
GT |
5.801 t Suez: 6.175,14 t |
|
DWT |
5.661 t |
|
NT |
2.714 t Suez: 5.824,32 t Panama: 4.932 t |
|
Number of 20ft containers |
On deck: 386 In hold: 223 Total: 619 |
|
Container capacity 14t |
317 |
|
Reefer point |
30 |
|
Length |
101,26 m overall 95,33 m registered |
|
Breadth |
18,70 m registered |
|
Draught |
Summer: 6,93 m fully loaded |
|
Forecastle |
16,40 m |
|
Depth |
10,15 m moulded |
|
Speed |
Max.: 15,4 knots |
|
Built |
1999 |
|
Keel laid |
17.06.1997 |
|
Launch date |
22.03.1999 |
|
Date of completion |
08.10.1999 |
|
Builder |
Pendik Tersanesi ve Agir Sanayi Tesisleri Müdürlügü Kaynarca 81504 Pendik Turkey |
|
Yard number |
21 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm diesel engine - 4.500 kW at 800 rpm Year of manufacture: 1997 Manufacturer: MAN B&W Diesel GmbH Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 352 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 35 m² Year of manufacture: 1997 1x Thermal oil heater, exh.gas heated - 10,0 bar Heating surface: 111,0 m² Year of manufacture: 2010 Manufacturer: PWT Prozesswärmeträgertechnik GmbH Max-Weber-Str. 10 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
2x Plants each 440/220 V - 325 kVA 1x Plant 440 V - 680 kVA 1x Plant 440 V - 344 kVA |
|
Shaft generator |
1x 680 kVA |
|
Generators |
2x MAN B&W - 4 stroke main diesel generatorsets each 325 kVA |
|
Emergency generator |
1x Diesel generatorset 344 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 400 kW, forward |
|
Number of holds |
1 |
|
Hold capacity |
With tween-deck hatch covers: 10.600 m³ |
|
Hatches |
1x Hatch weatherdeck 70,30 x 15,20 m 1x Hatch tweendeck 51,30 x 15,20 m |
|
Deck strength |
Tanktop: 10,0 t/m² Tween deck - steel pontoons: 3,0 t/m² Main deck - steel pontoons: 2,45 t/m² |
|
Ventilation |
20x Air Changes per hour in port 10x Air Changes per hour at sea |
|
Tank capacities |
Fuel: 547 t Fresh water: 123 t Water ballast: 2.282 t |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m |
|
Cargo gear |
2x Liebherr electro hydraulic cranes - SWL 60,0 t each Combinable SWL up to max. 120,0 t |
|
Manager |
Harren & Partner Ship Management GmbH & Co. KG Boschstr. 21 49733 Haren (Ems) Federal Republic of Germany |
|
Previous managers |
1999 - 2004 HARPA Shipping & Chartering GmbH & Co. KG |
|
Registered owner |
PIT Pacific Investment & Trading GmbH & Co. KG Gartenstr. 2 49733 Harren Federal Republic of Germany |
|
Previous owners |
1999 - 2005 Harren & Partner Schiffahrts GmbH & Co. KG MS "PARIDA" 2005 - 2009 MIT Maritime Investment & Trading GmbH & Co. KG 2009 - 2010 PIT Pacific Investment and Trading GmbH & Co. KG |
|
Latest data adjustment |
28 May 2014 |
